Auto Up / Down Operation Of Driver's Door Window Is Impossible (Manual Operation Is Possible): Wiring Diagram

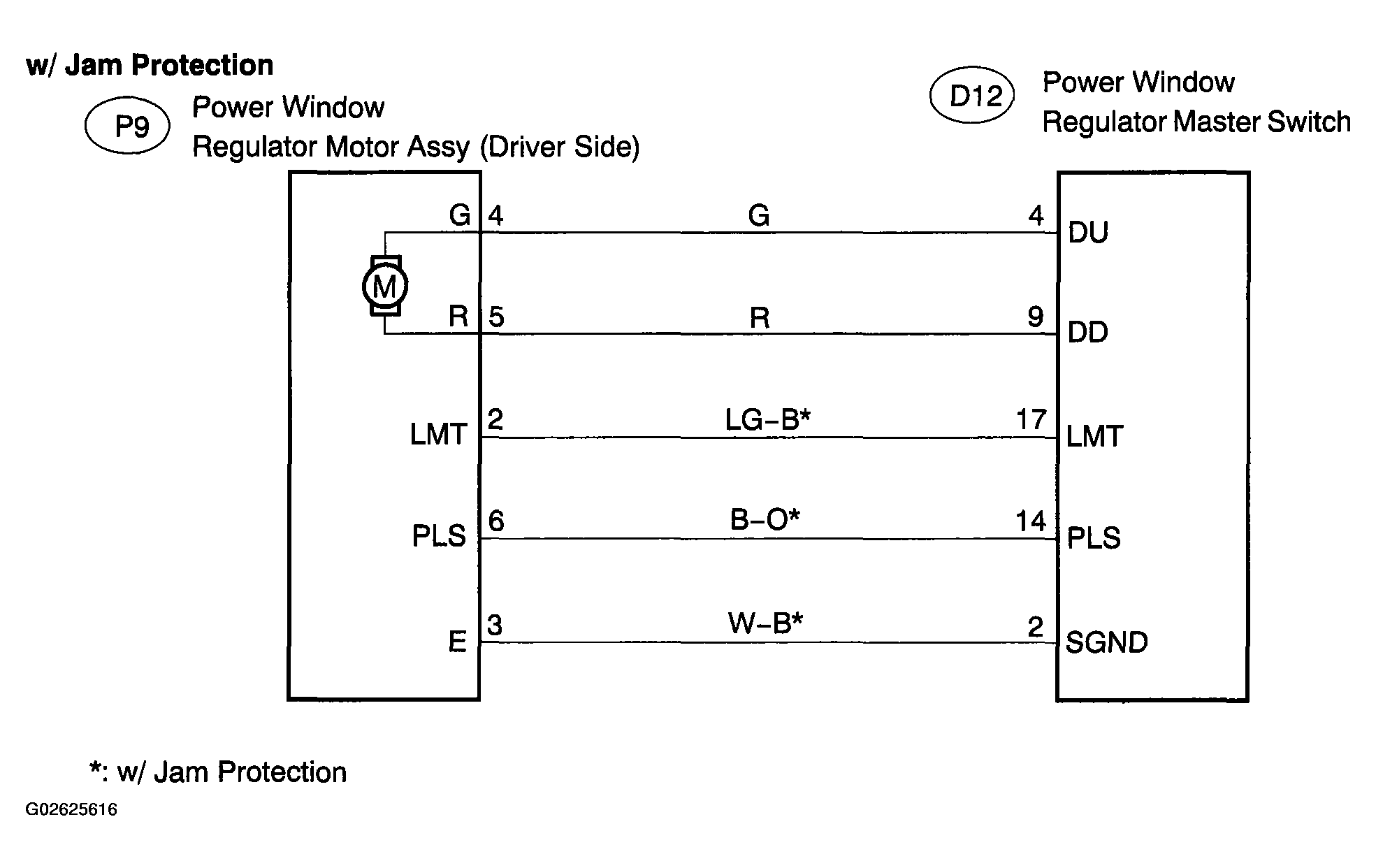

Fig 1: Driver's Door Window Auto UP/DOWN Operation Impossible Wiring Diagram
G02625616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
