Horn Button ASSY: Components

Fig 1: Horn Button Assy Replacement Components With Torque Specifications (1 Of 2)
G02595054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

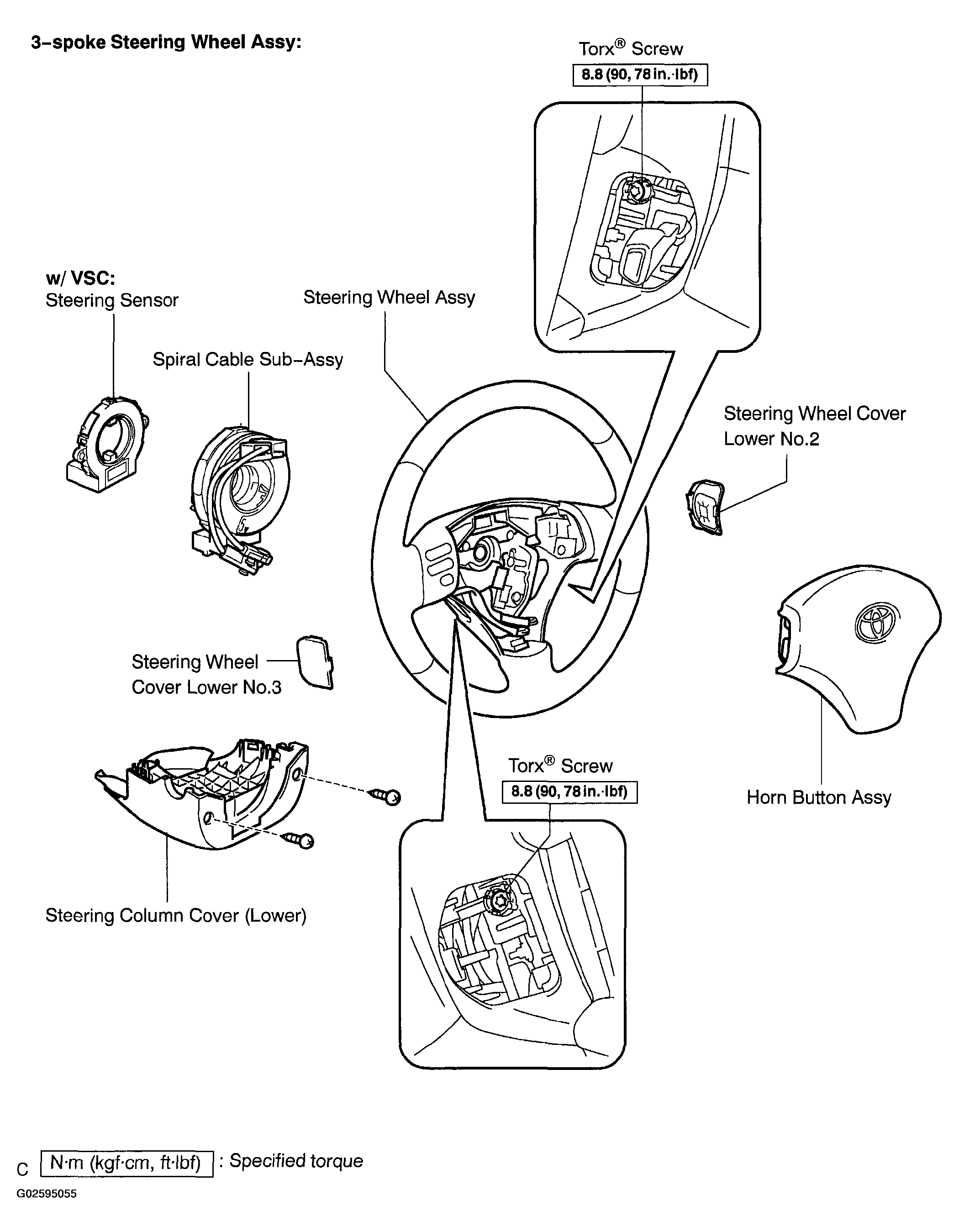

Fig 2: Horn Button Assy Replacement Components With Torque Specifications (2 Of 2)
G02595055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
