Outer Rear View Mirror Sub-ASSY LH: Replacement

HINT:

On the RH side, use the same procedures as on the LH side.

1. REMOVE OUTER REAR VIEW MIRROR SUB-ASSY LH (TMC made)
   1. Tape the lower part of outer mirror body with protection tape.
   2. Using a roof-moulding remover, disengage the clips placed in the lower part of the mirror.
   3. Pull out the outer rear view mirror.
   Fig 1: Pulling Out Outer Rear View Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE OUTER REAR VIEW MIRROR SUB-ASSY LH (TMMK made)
   1. Tape the upper part of outer mirror body with protection tape.
   2. Using a roof-mouding remover, disengage the clips placed in the upper part of the mirror.
   3. Pull out the outer rear view mirror.
   Fig 2: Pulling Out Outer Rear View Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR SUB-ASSY LH (TMC made)
   1. Insert the claws placed in the upper part of backside of the mirror into the actuator hole.
   2. Set the mirror in the actuator.
   3. Insert the lower portion of the mirror to engage the 2 clips securely.
4. INSTALL OUTER REAR VIEW MIRROR SUB-ASSY LH (TMMK made)
   1. Insert the claws placed in the lower part of backside of the mirror into the actuator hole.
   2. Set the mirror in the actuator.
   3. Insert the upper portion of the mirror to engage the 2 clips securely.

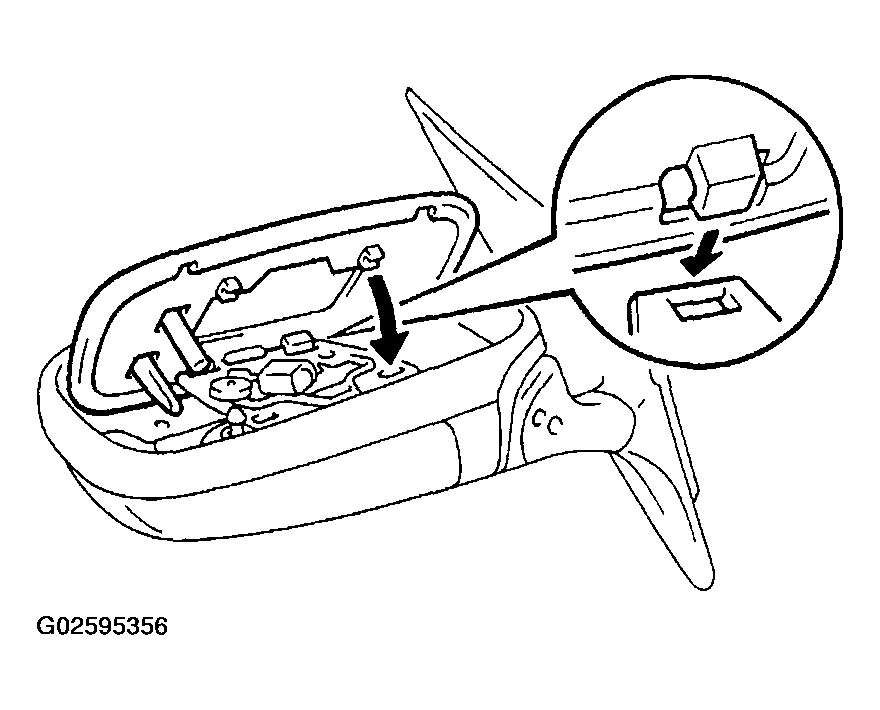

   Fig 3: Setting Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
