Inner Rear View Mirror ASSY: Inspection

1. Inspect operation of the elector chromic inner mirror.
   1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.
   2. Attach a black colored tape to the forward sensor to prevent it from sensing.
   3. Light up the mirror with an electric light, and check that the mirror surface changes from "bright" to "dark".

If operation is not as specified, replace the inner mirror.

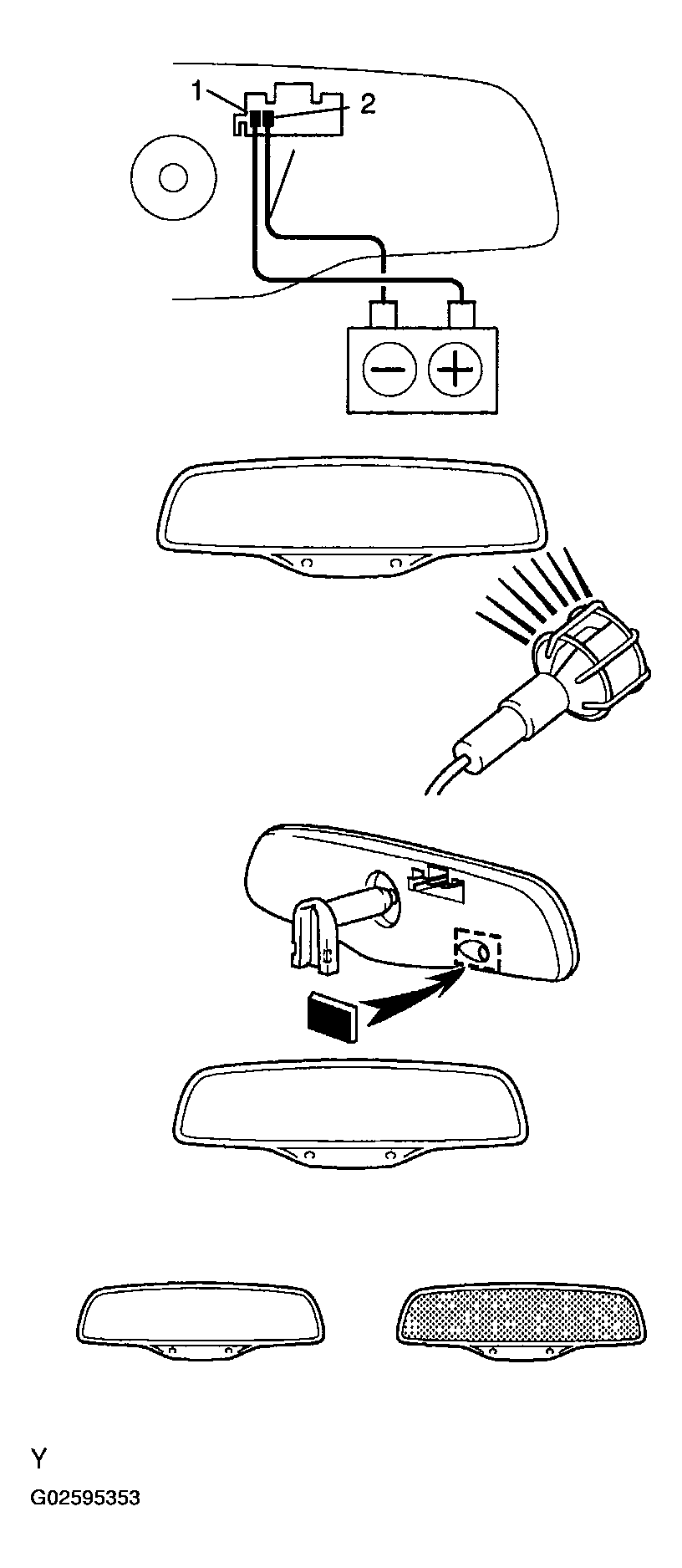

Fig 1: Inspecting Inner Rear View Mirror Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
