Rear Seat Assembly: Components

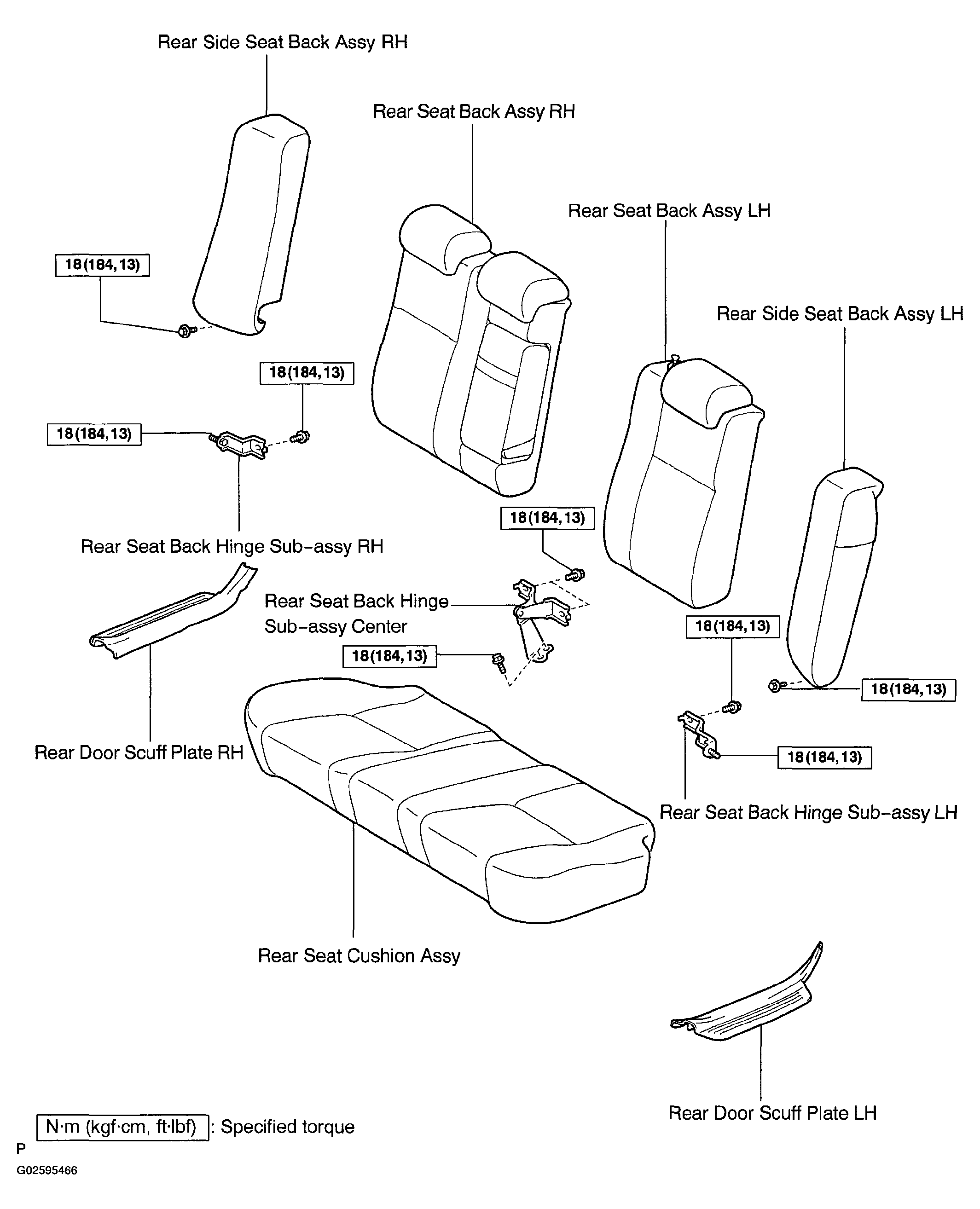

Fig 1: Rear Seat Replacement Components Assembly With Torque Specifications (1 Of 2)
G02595466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

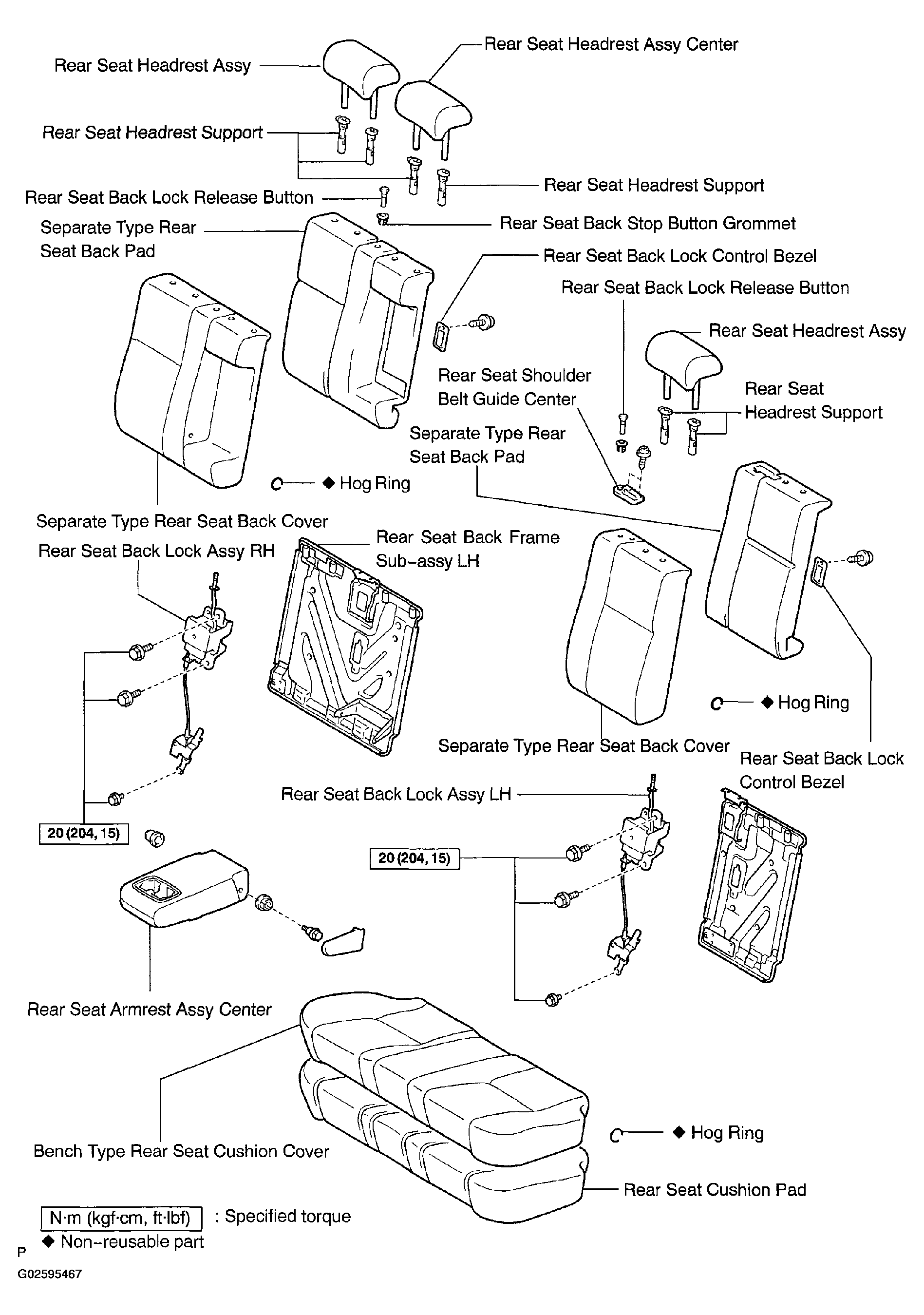

Fig 2: Rear Seat Replacement Components Assembly With Torque Specifications (2 Of 2)
G02595467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
