Steering Pad Switch RH: Replacement

HINT:

• COMPONENTS: SEE COMPONENTS  .
• Installation is in the reverse order of removal.

1. PRECAUTION (SEE  PRECAUTION  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE STEERING WHEEL COVER LOWER NO.2

   TMC MADE (SEE  STEERING COLUMN ASSY (TMC MADE)  )

   TMMK MADE (SEE  STEERING COLUMN ASSY (TMMK MADE)  )

4. REMOVE STEERING WHEEL COVER LOWER NO.3

   TMC MADE (SEE  STEERING COLUMN ASSY (TMC MADE)  )

   TMMK MADE (SEE  STEERING COLUMN ASSY (TMMK MADE)  )

5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE STEERING PAD SWITCH RH
   1. Remove the screw.
   2. Remove the clamp.

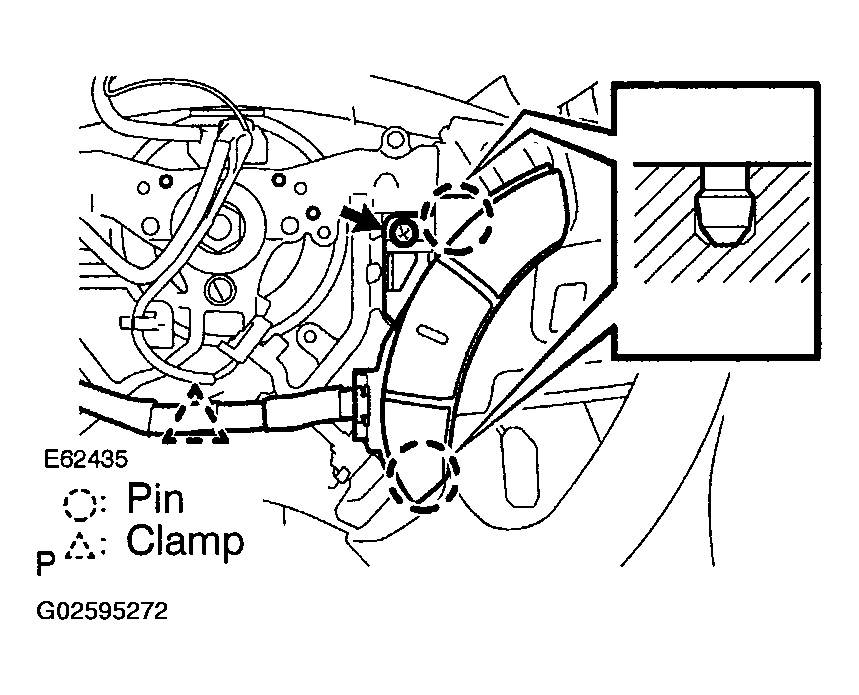

   3. Disengage the 2 pins and release the steering pad switch RH from the steering wheel.
      Fig 1: Releasing Steering Pad Switch RH From Steering Wheel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

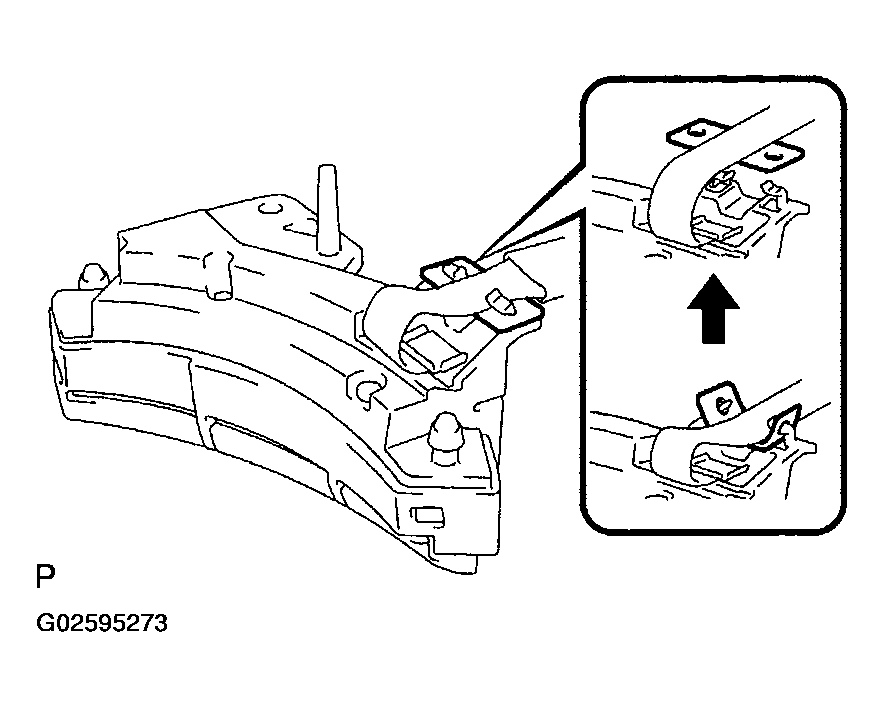

   4. Release the tab of steering pad switch cable from the steering pad switch RH as shown in the illustration.
      Fig 2: Releasing Tab Of Steering Pad Switch Cable

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

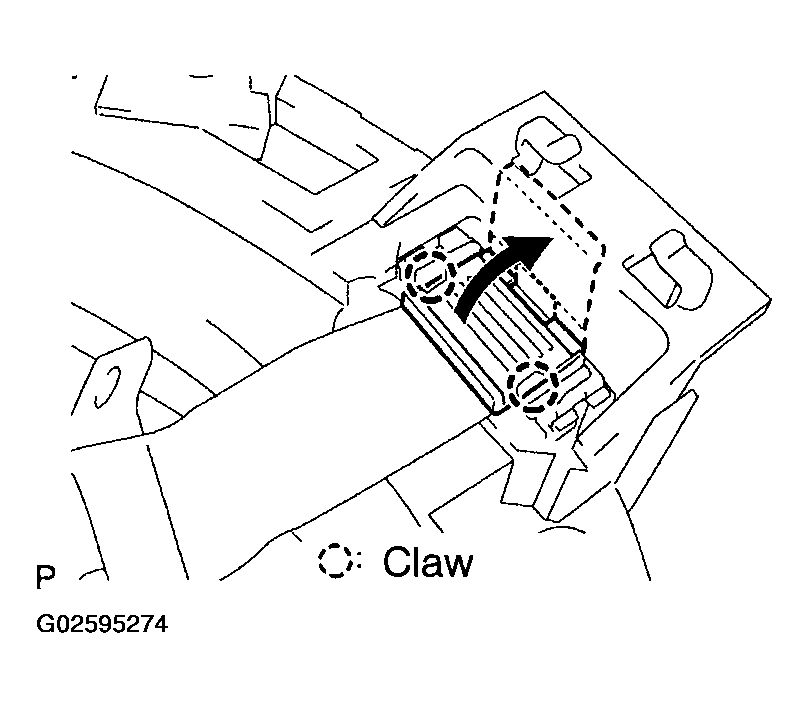

   5. Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.
      Fig 3: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

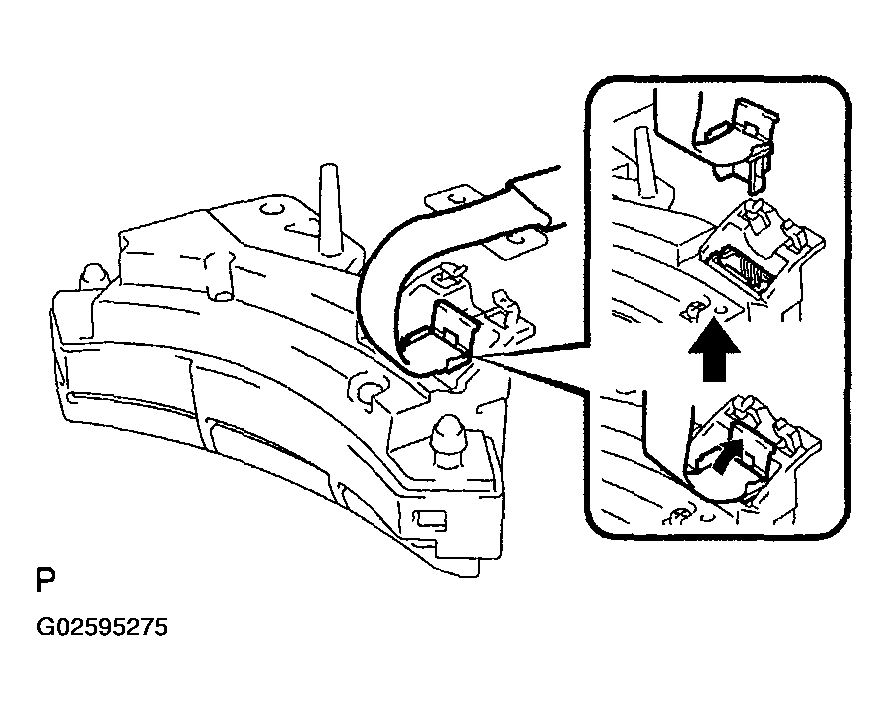

   6. Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch RH.
      Fig 4: Disconnecting Steering Pad Switch Cable From Steering Pad Switch RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT SRS WARNING LIGHT (SEE  ON-VEHICLE INSPECTION  )
