Steering Pad Switch LH: Replacement

HINT:

• COMPONENTS: SEE COMPONENTS  .
• Installation is in the reverse order of removal.

1. PRECAUTION (SEE  PRECAUTION  )
2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
3. REMOVE STEERING WHEEL COVER LOWER NO.2

   TMC MADE (SEE  STEERING COLUMN ASSY (TMC MADE)  )

   TMMK MADE (SEE  STEERING COLUMN ASSY (TMMK MADE)  )

4. REMOVE STEERING WHEEL COVER LOWER NO.3

   TMC MADE (SEE  STEERING COLUMN ASSY (TMC MADE)  )

   TMMK MADE (SEE  STEERING COLUMN ASSY (TMMK MADE)  )

5. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT  )
6. REMOVE STEERING PAD SWITCH LH (4 SPOKE STEERING WHEEL ASSY)
   1. Disconnect the connector.
   2. Disconnect the connector of cruise control main switch.

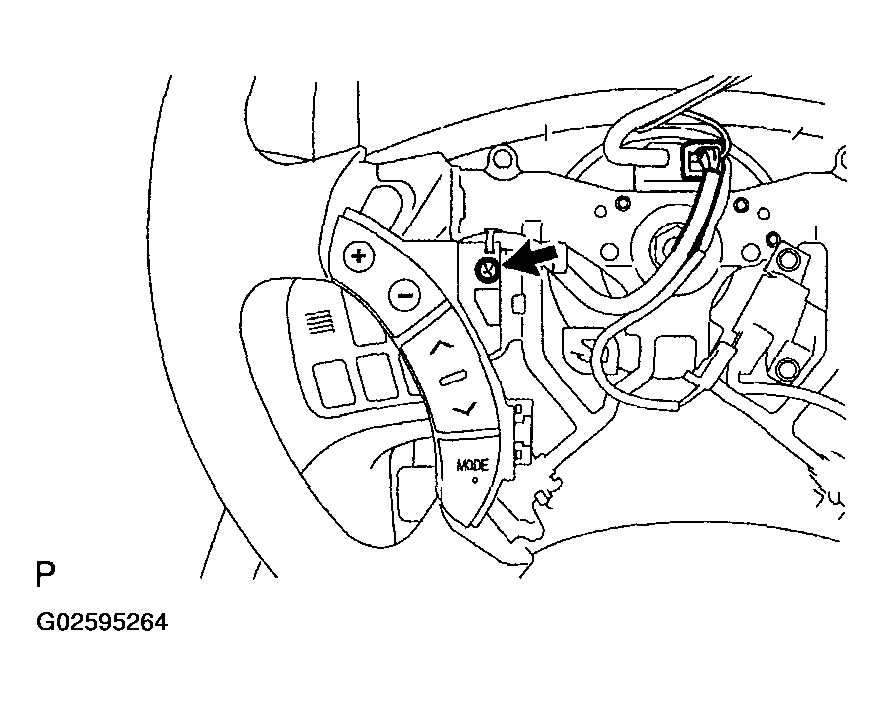

   3. Remove the screw.
      Fig 1: Removing Screw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. w/o steering pad switch RH:

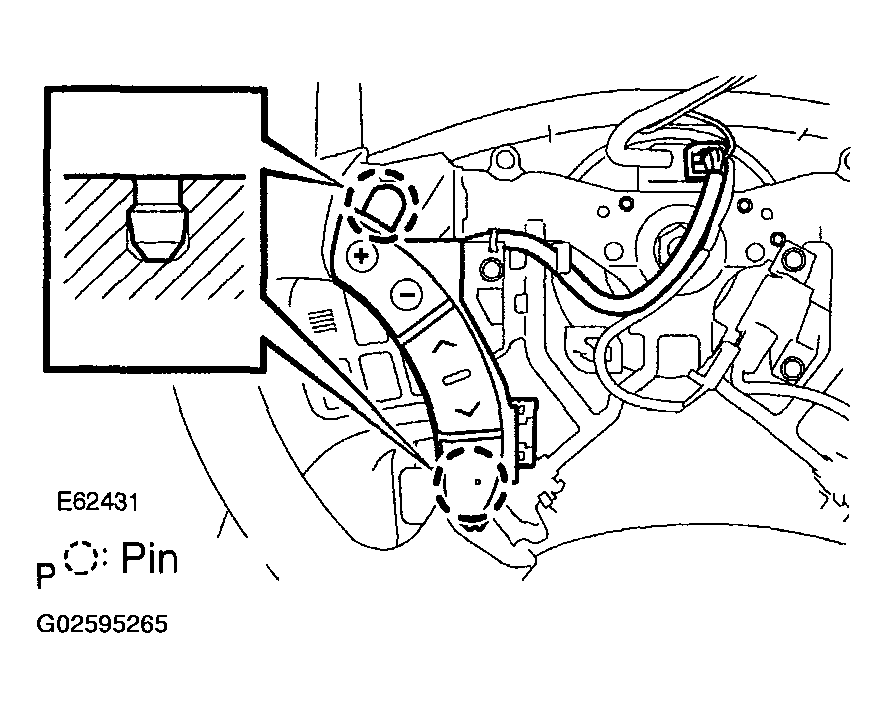

      Release the 2 pins and remove the steering pad switch LH.

      Fig 2: Removing Steering Pad Switch LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. w/ steering pad switch RH:

      Remove the clamp.

   6. w/ steering pad switch RH:

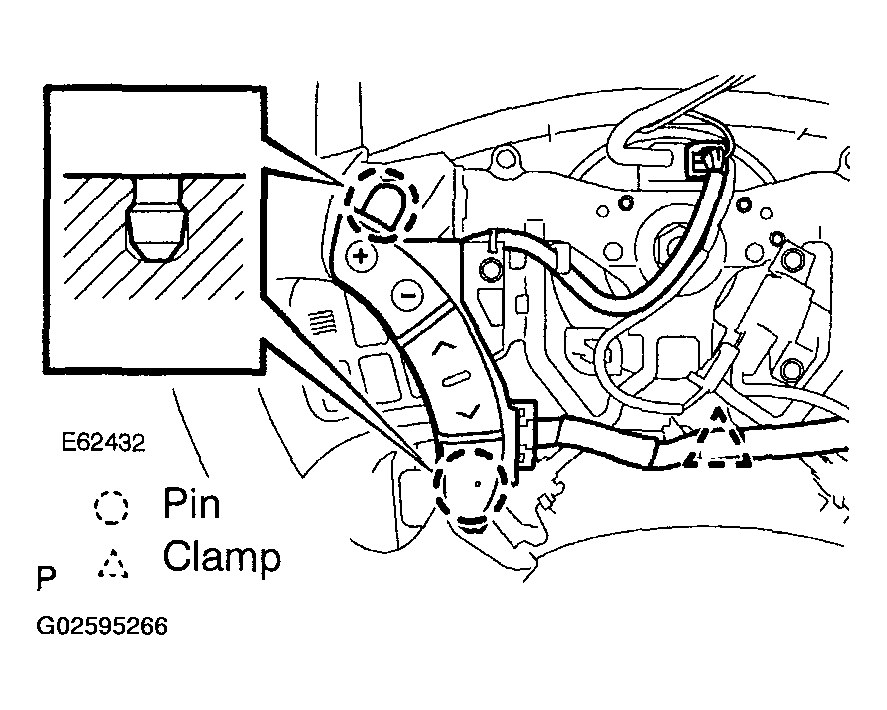

      Release the 2 pins and release the steering pad switch LH from steering wheel.

      Fig 3: Releasing Steering Pad Switch LH From Steering Wheel

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. w/ steering pad switch RH:

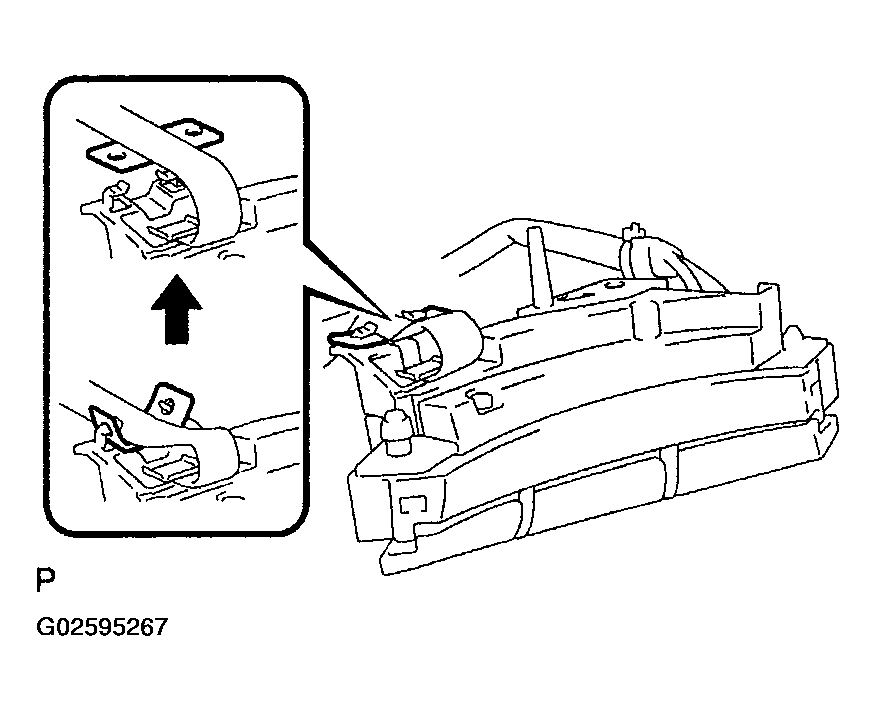

      Release the tab of steering pad switch cable from steering pad switch LH as shown in the illustration.

      Fig 4: Releasing Tab Of Steering Pad Switch Cable From Steering Pad Switch LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   8. w/ steering pad switch RH:

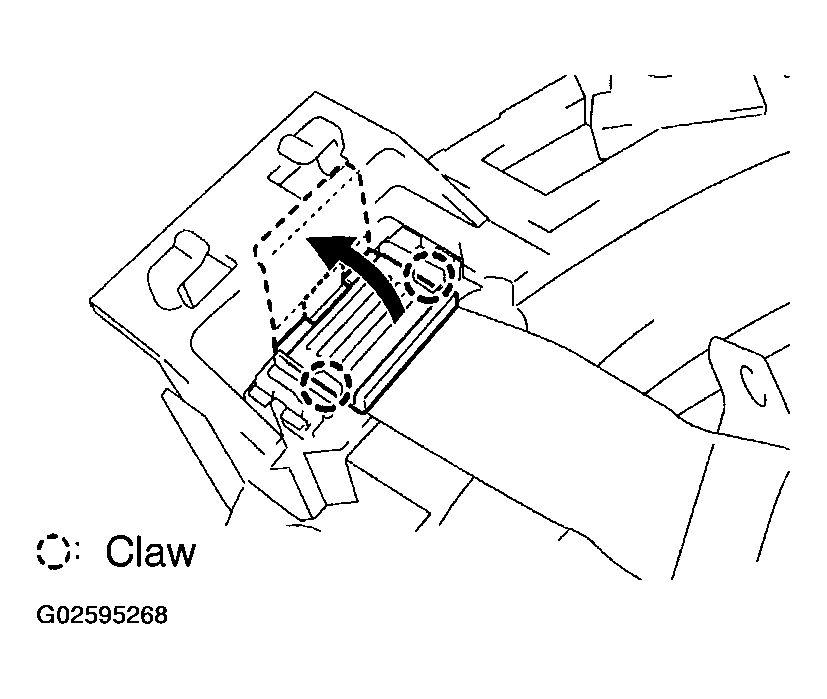

      Disengage the 2 claws as shown in the illustration and open the latch on the top of the connector.

      Fig 5: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   9. w/ steering pad switch RH:

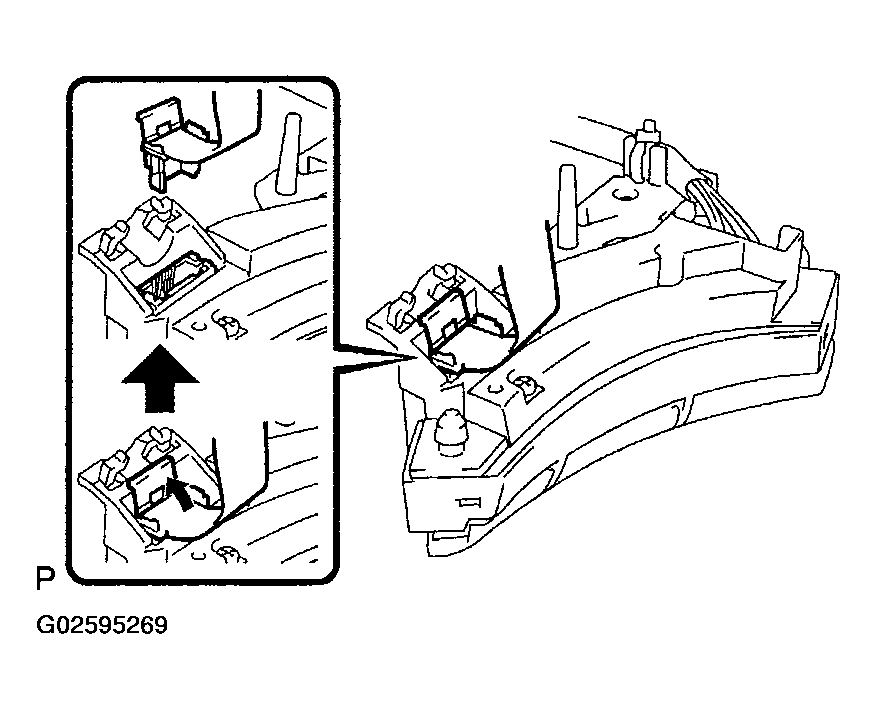

      Pull out the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch LH.

      Fig 6: Disconnecting Steering Pad Switch Cable From Steering Pad Switch LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE STEERING PAD SWITCH LH (3 SPOKE STEERING WHEEL ASSY)
   1. Disconnect the connector.

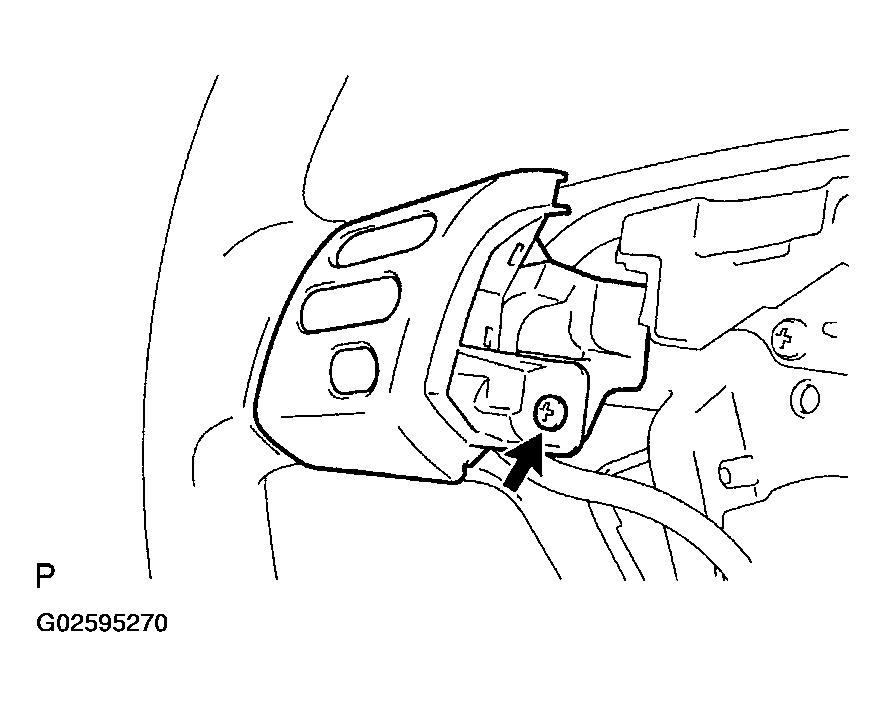

   2. Remove the screw.
      Fig 7: Removing Steering Pad Switch LH (3 Spoke Steering Wheel Assy)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

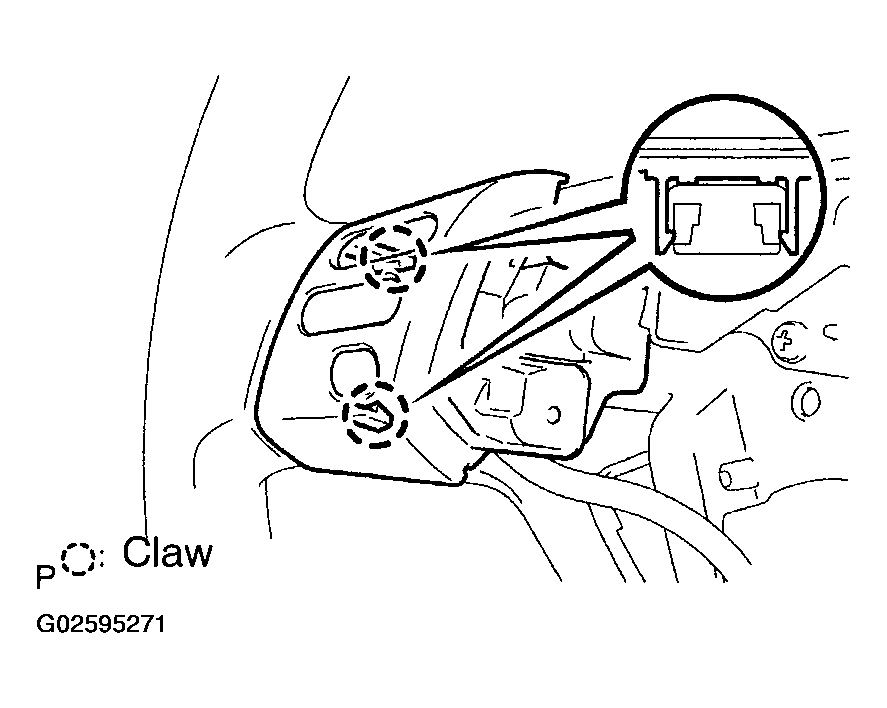

   3. Disengage the 2 claws.
   4. Remove the steering pad switch LH.
      Fig 8: Removing Steering Pad Switch LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT  )
9. CONNECT BATTERY NEGATIVE TERMINAL
10. INSPECT SRS WARNING LIGHT (SEE  ON-VEHICLE INSPECTION  )
