Radio Receiver ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
3. REMOVE RADIO RECEIVER ASSY
   1. Insert a screwdriver at indicated point and remove the radio receiver assy from instrument cluster finish panel sub-assy center.

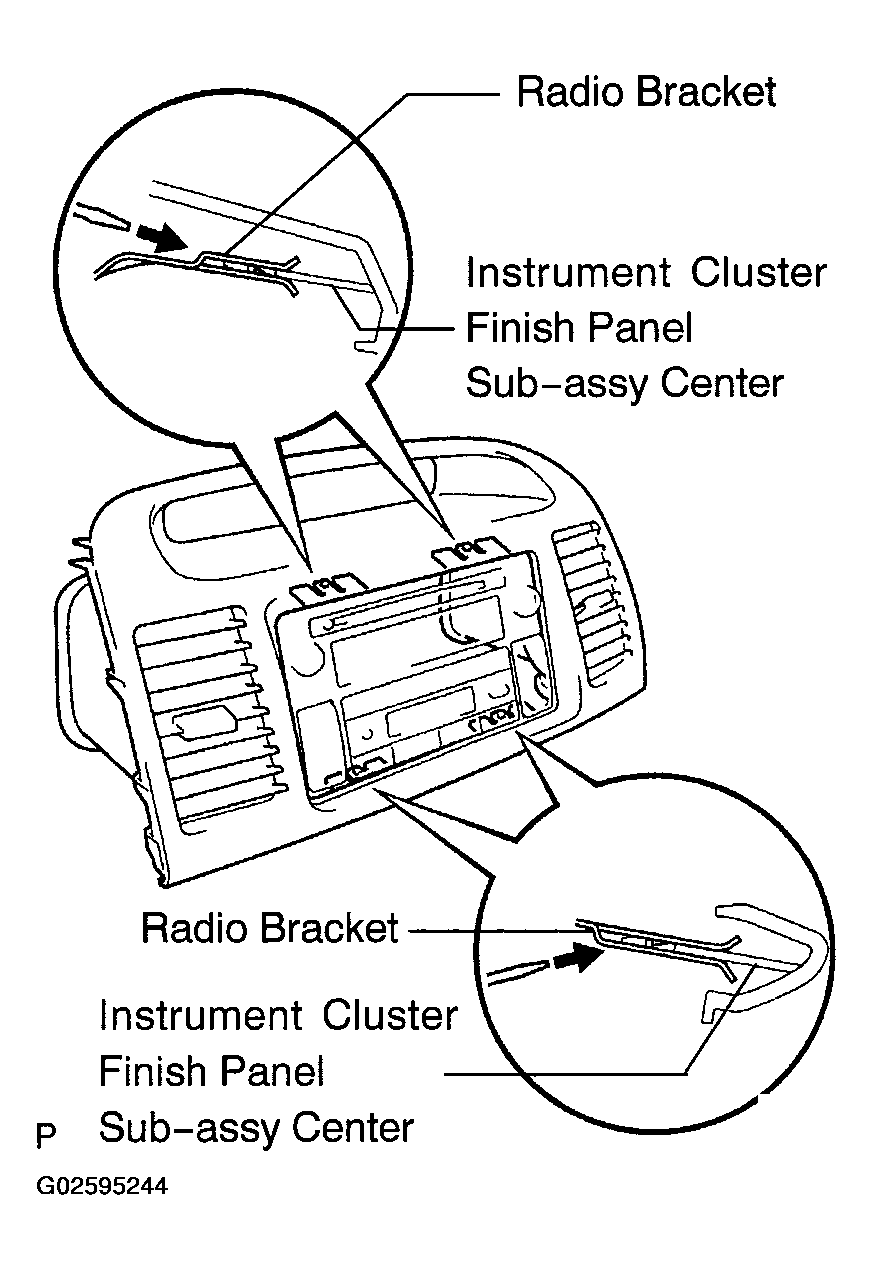

      Fig 1: Removing Radio Receiver Assy From Instrument Cluster Finish Panel Sub-Assy Center

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO BRACKET NO.1
   1. Remove the 4 screws and radio bracket No.1.

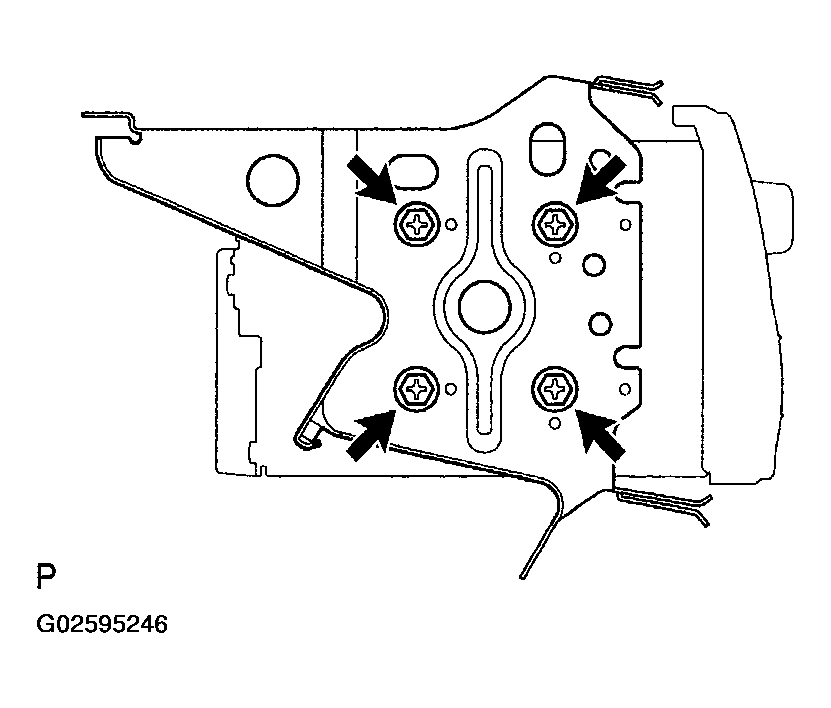

      Fig 2: Removing Radio Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE RADIO BRACKET NO.2
   1. Remove the 4 screws and radio bracket No.2.

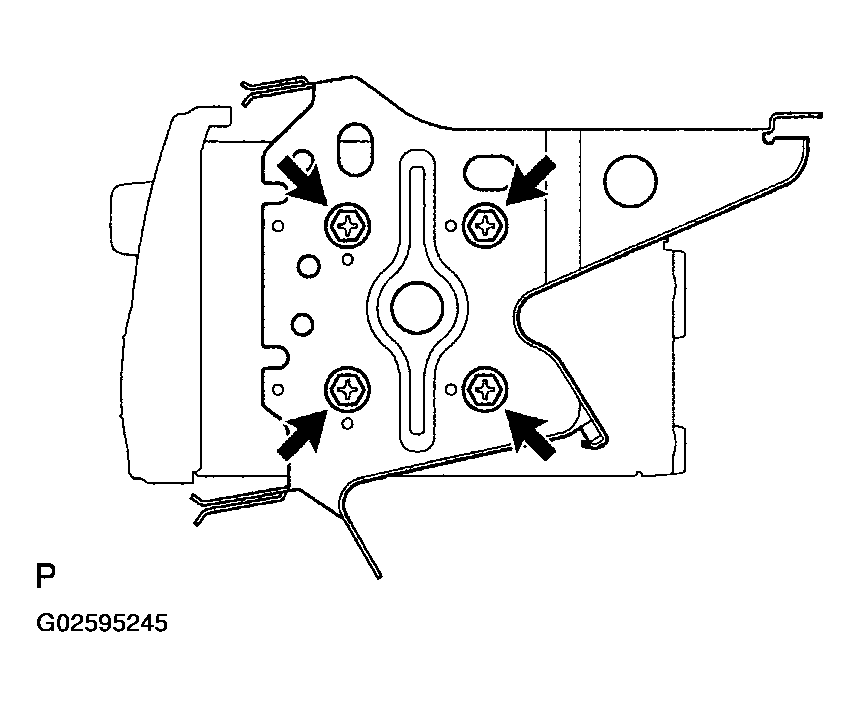

   Fig 3: Removing Radio Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
