Power Point Socket ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  REPLACEMENT  )
2. REMOVE CONSOLE PANEL UPPER REAR (See  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL CUP HOLDER (W/O ASHTRAY) (See  REPLACEMENT  )
4. REMOVE FRONT ASH RECEPTACLE ASSY (W/ASHTRAY) (See  REPLACEMENT  )
5. REMOVE CONSOLE PANEL SUB-ASSY UPPER (See  REPLACEMENT  )
6. REMOVE POWER POINT SOCKET ASSY
   1. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the power pint socket cover, and push out the socket to the room side.

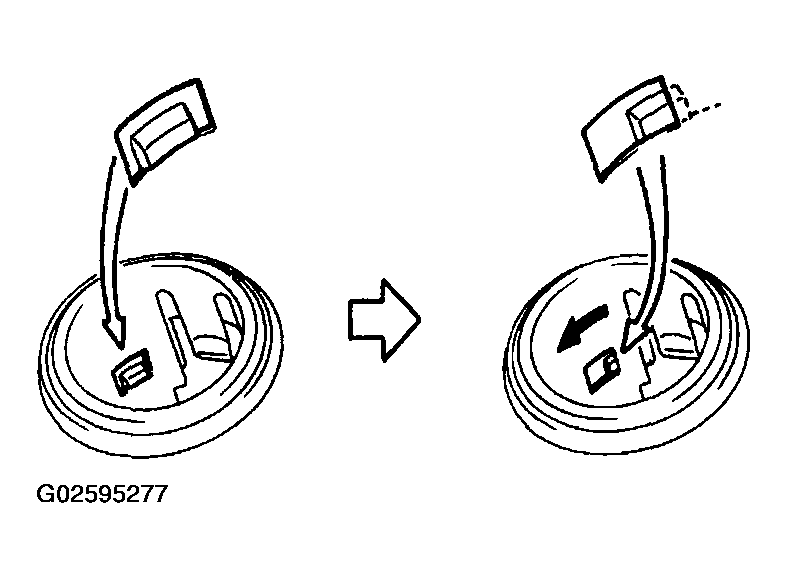

      Fig 1: Removing Power Point Socket Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Align the socket with the notch on the power point socket cover, remove the power point socket assy to the room side.

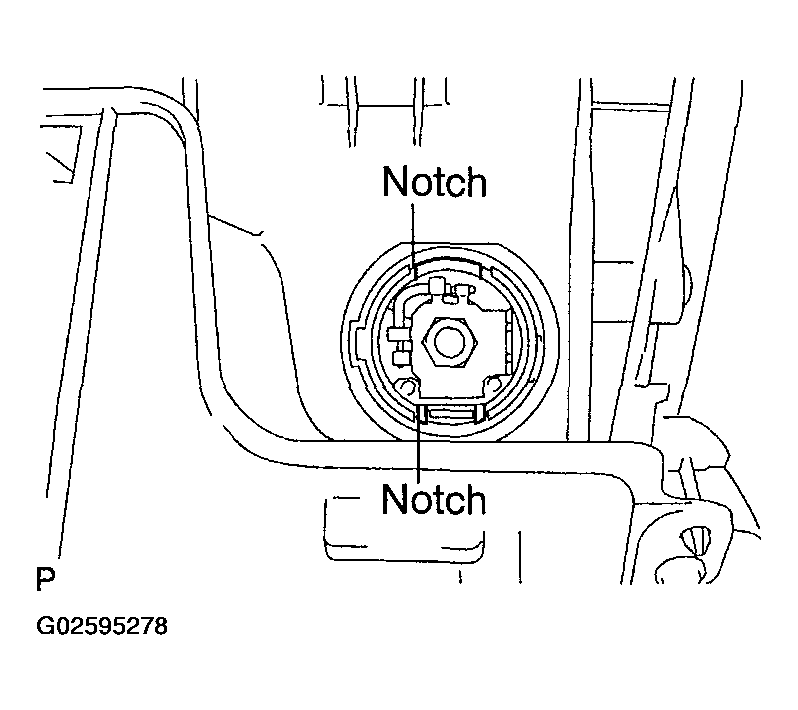

      Fig 2: Aligning Socket With Notch On Power Point Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. INSTALL POWER POINT SOCKET ASSY
   1. Align the socket with the notch on the power point socket cover, push the power point socket assy into as hard as possible and install it.
