Navigation Receiver ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
3. REMOVE NAVIGATION RECEIVER ASSY
   1. Insert a screwdriver at indicated point and remove the navigation receiver assy from instrument cluster finish panel sub-assy.

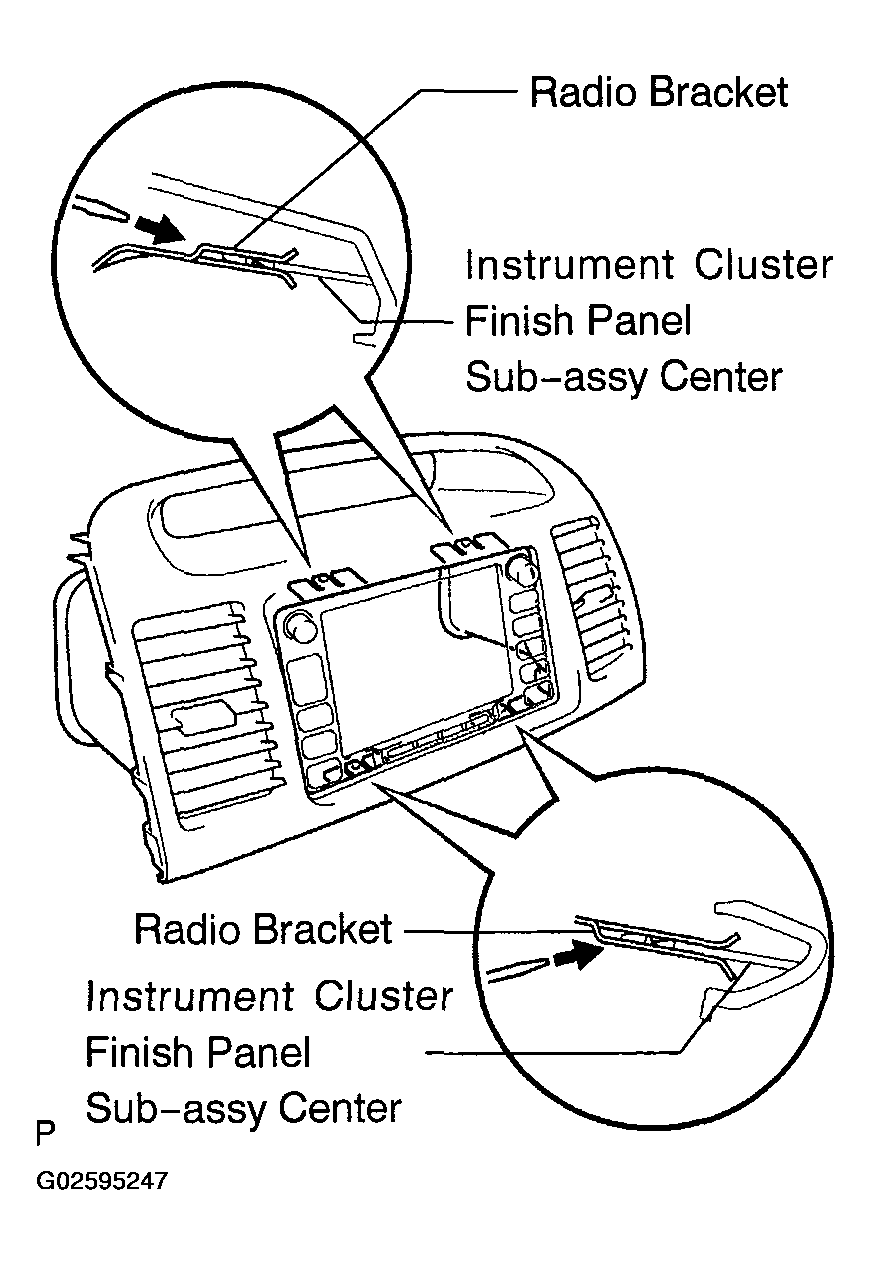

      Fig 1: Removing Navigation Receiver Assy From Instrument Cluster Finish Panel Sub-Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO BRACKET NO.1
   1. Remove the 4 screws and radio receiver bracket No.1.

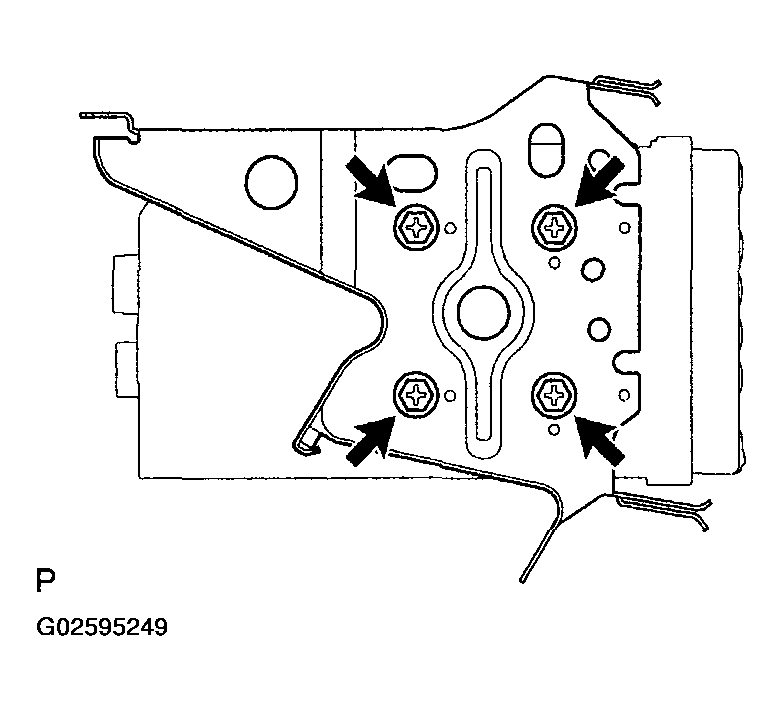

      Fig 2: Removing Screws Of Radio Receiver Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE RADIO BRACKET NO.2
   1. Remove the 4 screws and radio receiver bracket No.2.

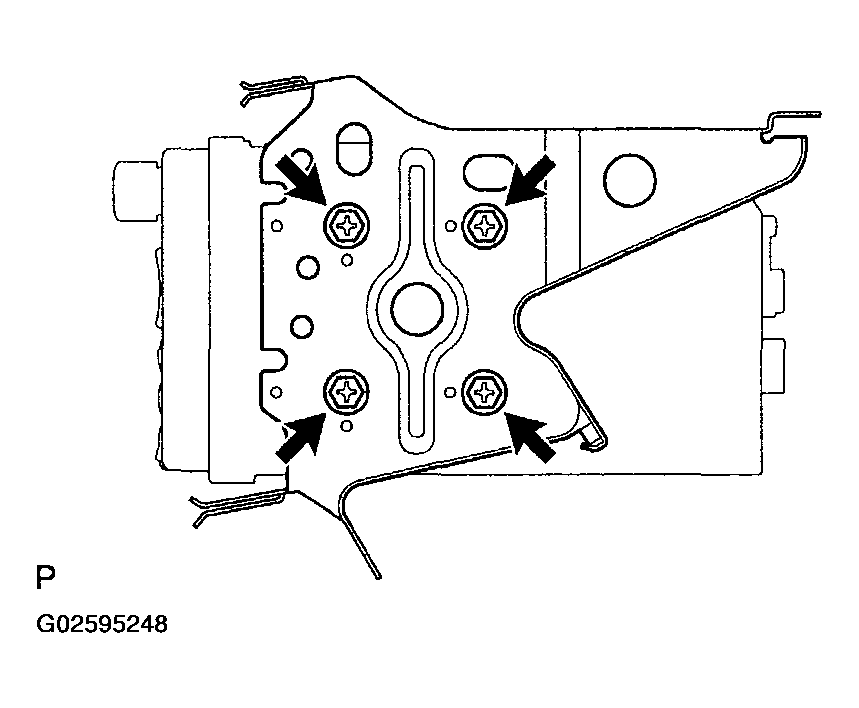

   Fig 3: Removing Screws Of Radio Receiver Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
