Navigation Ecu: Replacement

HINT:

COMPONENTS: See COMPONENTS  or COMPONENTS

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT
2. REMOVE SPARE WHEEL COVER ASSY
3. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSY RH
4. REMOVE LUGGAGE COMPARTMENT TRIM HOOK NO.1 (See  REPLACEMENT  )
5. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
6. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LH (See  REPLACEMENT  )
7. REMOVE NAVIGATION ECU
   1. Disconnect the connectors and remove the 2 clamps.

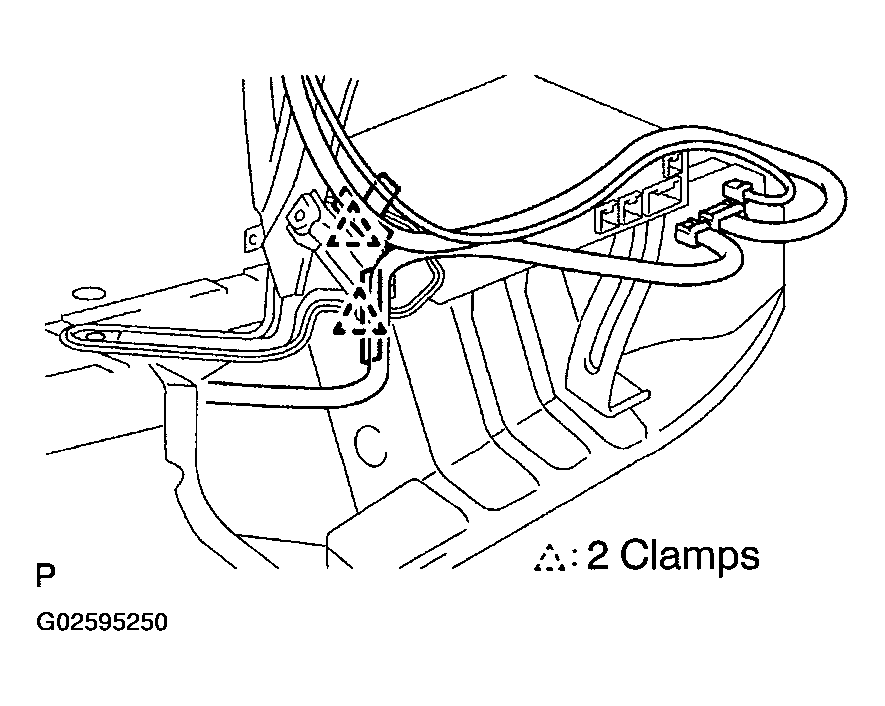

      Fig 1: Disconnecting Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the nut and 2 bolts, then remove the navigation ECU.

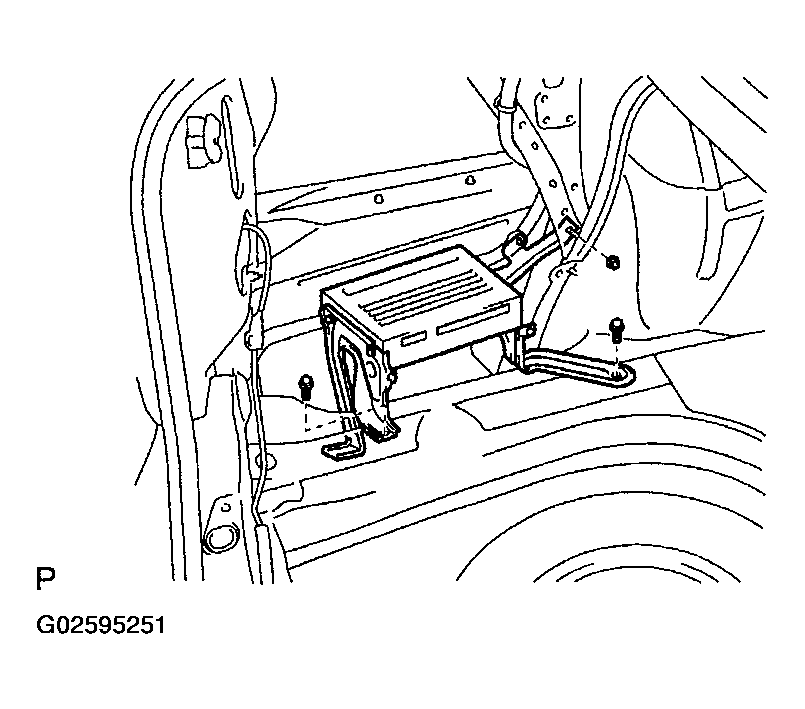

      Fig 2: Removing Navigation ECU

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE DISC PLAYER BRACKET
   1. Remove the 2 screws and disc player bracket.

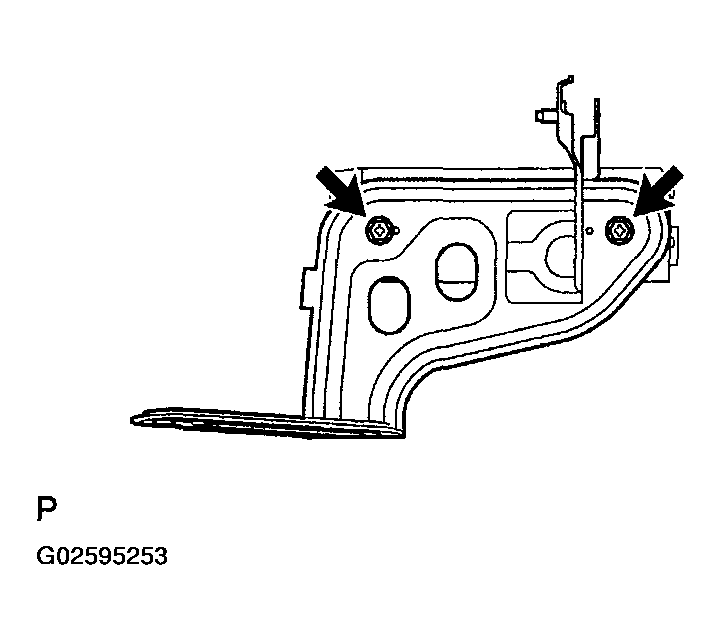

      Fig 3: Removing Screws Of Disc Player Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE DISC PLAYER BRACKET NO.2
   1. Remove the 2 screws and disc player bracket No.2

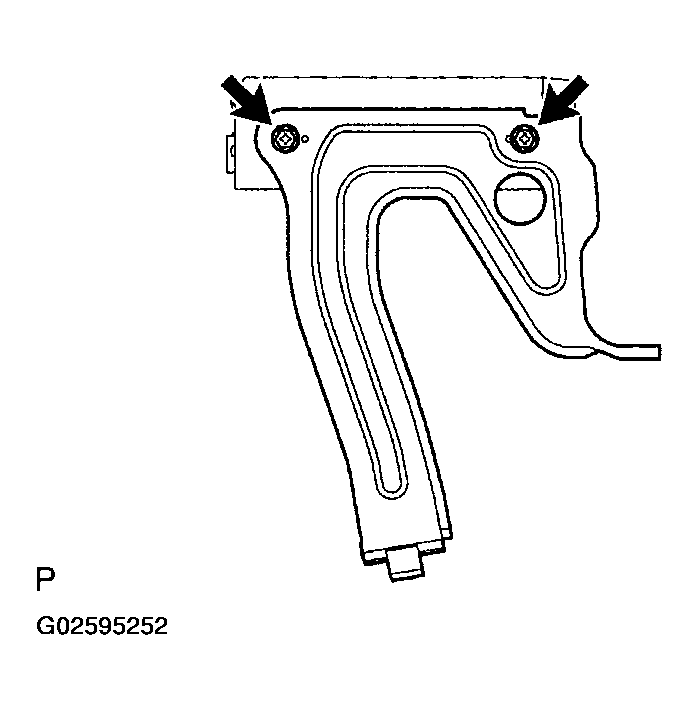

   Fig 4: Removing Screws Of Disc Player Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
