System Description

A rack and pinion type steering gear and engine revolution sensing type power steering are used on all models.

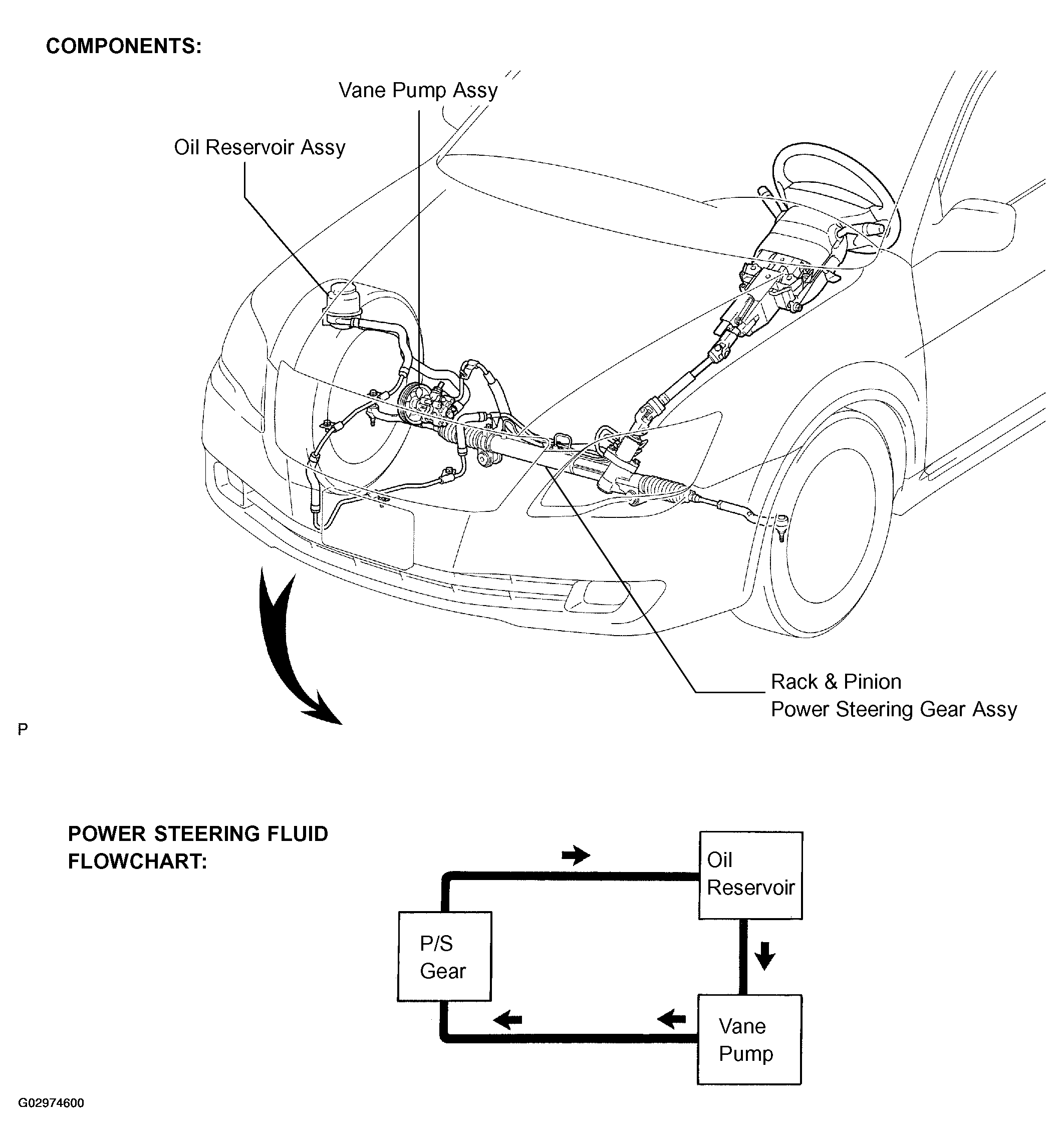

Fig 1: Identifying Power Steering Components
G02974600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
