Child Restraint Seat Tether Anchor Bracket: Replacement

HINT:

• The procedures listed below are for the LH side.
• COMPONENTS: SEE COMPONENTS .

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE  PRECAUTION  )
2. REMOVE REAR SEAT CUSHION ASSY (SEE  OVERHAUL  )
3. REMOVE REAR SEAT HEADREST ASSY (SEE  OVERHAUL  )
4. REMOVE RR SHELF COVER CAP (SEE  OVERHAUL  )
5. REMOVE REAR SEATBACK ASSY LH (SEE  OVERHAUL  )
6. REMOVE REAR SEATBACK ASSY RH (SEE  OVERHAUL  )
7. REMOVE REAR DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
8. REMOVE REAR DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
9. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (SEE  REPLACEMENT  )
10. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (SEE  REPLACEMENT  )
11. REMOVE REAR SEAT SIDE GARNISH LH (SEE  REPLACEMENT  )
12. REMOVE REAR SEAT SIDE GARNISH RH (SEE  REPLACEMENT  )
13. REMOVE ROOF SIDE GARNISH ASSY INNER LH (SEE  REPLACEMENT  )
14. REMOVE ROOF SIDE GARNISH ASSY INNER RH (SEE  REPLACEMENT  )
15. REMOVE PACKAGE TRAY TRIM PANEL ASSY

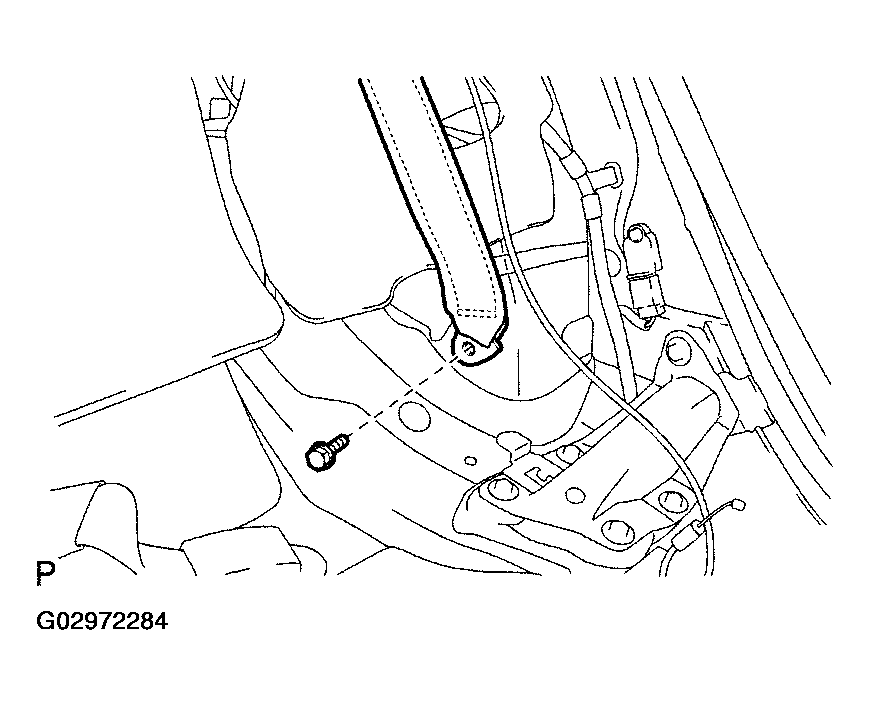

    1. Remove the bolt and disconnect the rear seat belt assy outer.

       HINT:

       Use the same procedures for the RH side and LH side.

       Fig 1: Removing Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the rear seat inner w/center belt assy RH.
       Fig 2: Removing Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and the rear seat shoulder belt cover.

       HINT:

       Use the same procedures for the RH side and LH side.

       Fig 3: Disengaging Claws (1 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 4 claws and the rear seat shoulder belt cover.
       Fig 4: Disengaging Claws (2 Of 2)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

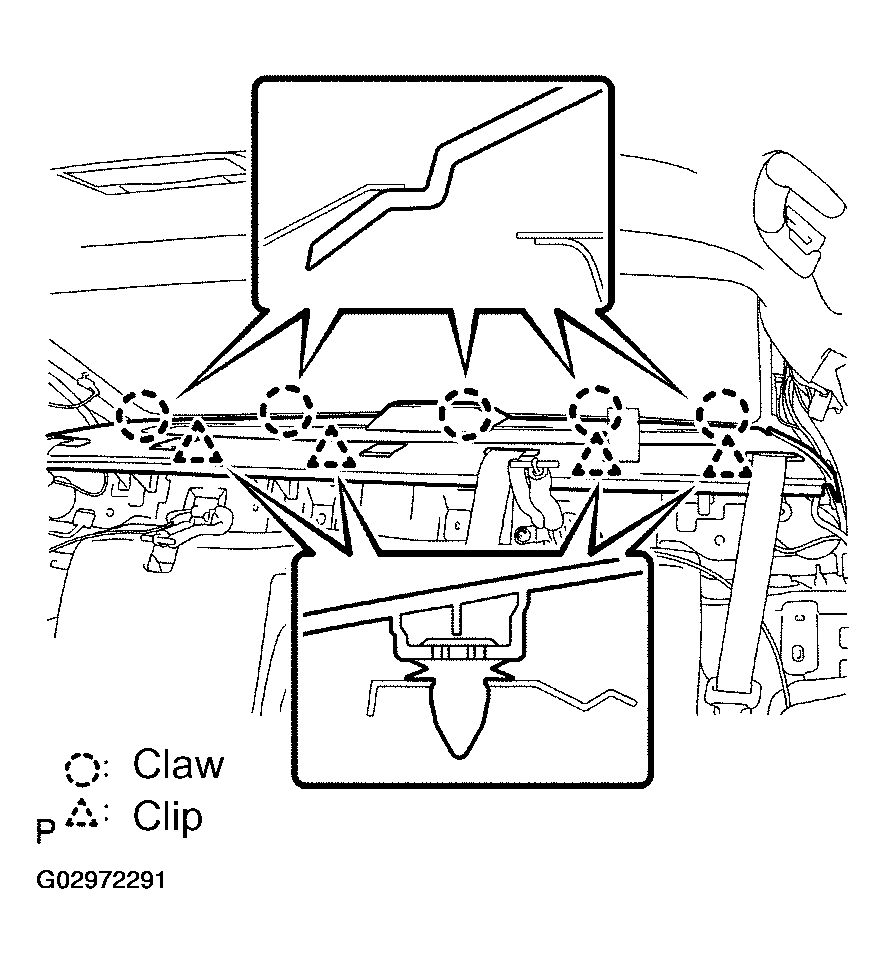

    5. Disengage the 5 claws, 4 clips, and the package tray panel assy.
    6. Disconnect the connector and remove the package tray panel assy.
       Fig 5: Disengaging Claws & Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Remove the bolt and the child restraint seat tether anchor bracket.
       Fig 6: Removing Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
    1. Install the child restraint seat tether anchor bracket with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

       Fig 7: Installing Child Restraint Seat Tether Anchor Bracket Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL PACKAGE TRAY TRIM PANEL ASSY
    1. Connect the connector.
    2. Engage the 5 claws and the 4 clips and install the package tray panel assy.
       Fig 8: Engaging Claws & Clips & Installing Package Tray Panel Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 4 claws and install the rear seat shoulder belt cover.
       Fig 9: Engaging Claws & Installing Rear Seat Shoulder Belt Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 4 claws and the rear seat shoulder belt cover.

       HINT:

       Use the same procedures for the RH side and LH side.

       Fig 10: Engaging Claws & Rear Seat Shoulder Belt Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

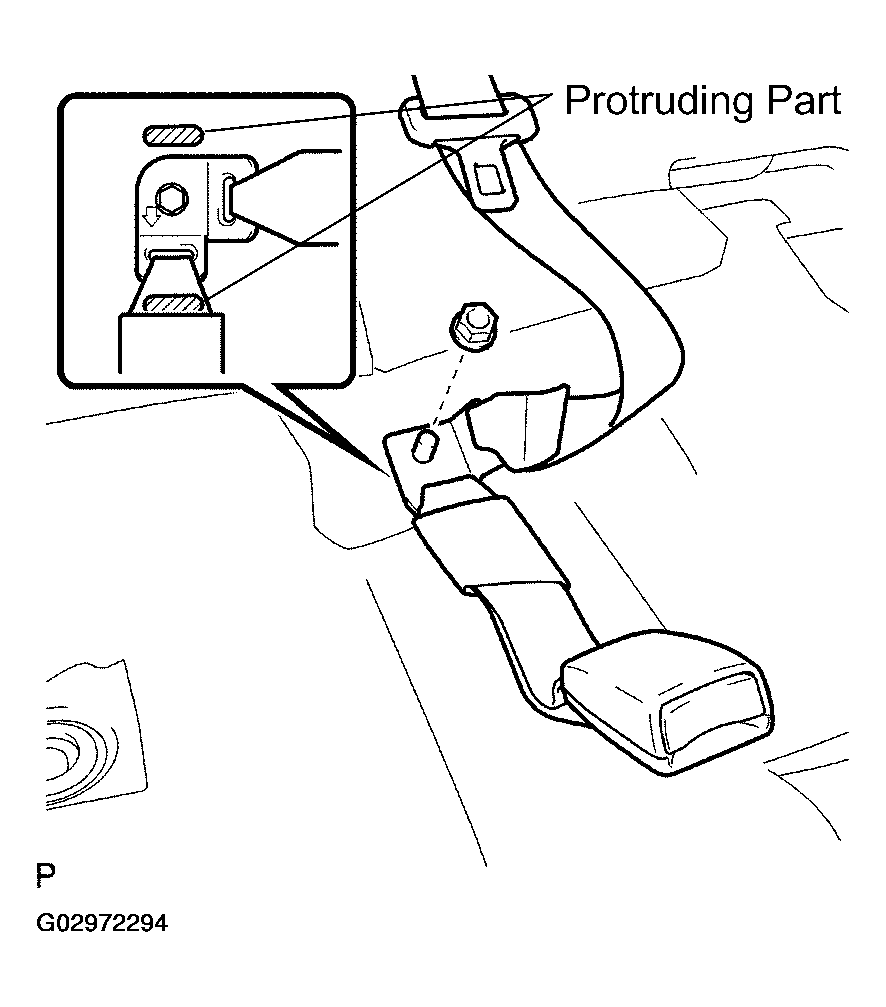

    5. Install the rear seat inner w/center belt assy RH with the nut.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

       NOTE:

       • Do not overlap the anchor part of the rear belt and the protruding parts of the rear seat adjuster.
       • Make sure arrow is pointing towards the front of the vehicle.
         Fig 11: Installing Rear Seat Inner W/Center Belt Assy RH Nut

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

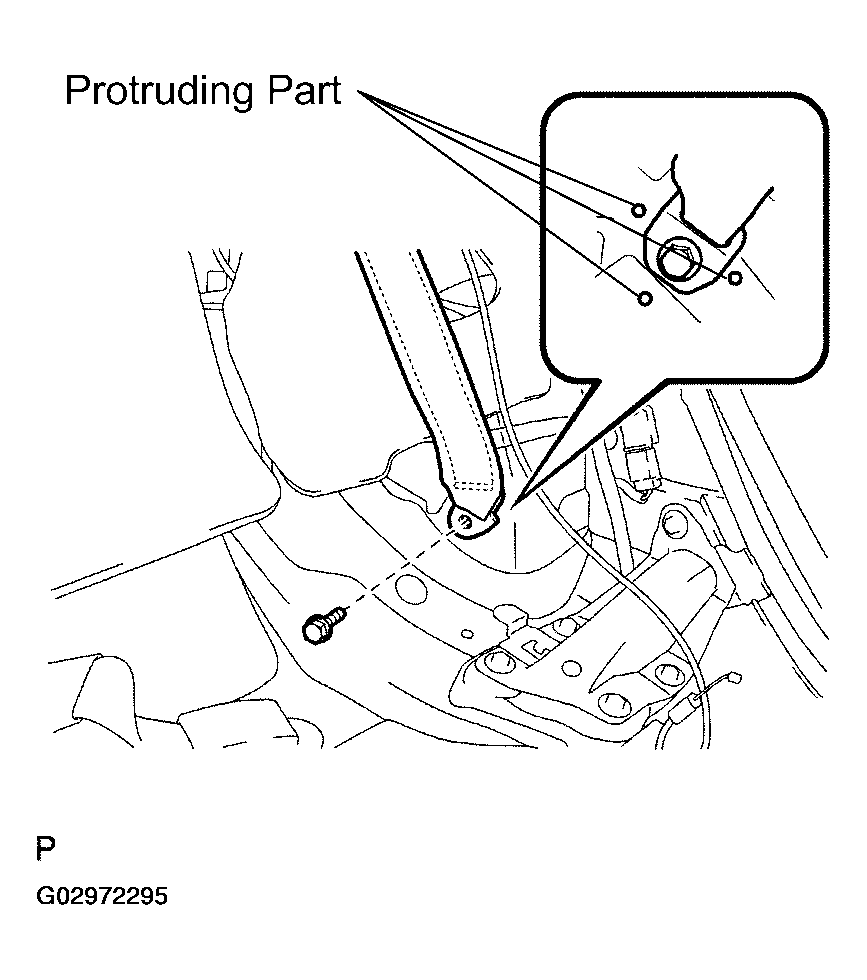

    6. Install the rear seat belt assy outer with the bolt.

       Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

       NOTE: Do not overlap the anchor part of the rear belt and the protruding parts of the rear seat adjuster.

       HINT:

       Use the same procedures for the RH side and LH side.

       Fig 12: Installing Rear Seat Belt Assy Outer With Bolt

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Check if the ELR locks.
       NOTE: The check should be performed with the outer belt assy installed.
       1. With the belt assy installed, check that the belt locks when it is pulled out quickly.

       If operation is not as specified, replace the belt assy.

19. INSTALL ROOF SIDE GARNISH ASSY INNER LH (SEE  REPLACEMENT  )
20. INSTALL ROOF SIDE GARNISH ASSY INNER RH (SEE  REPLACEMENT  )
21. INSTALL REAR SEATBACK ASSY RH (SEE  OVERHAUL  )
22. INSTALL REAR SEATBACK ASSY LH (SEE  OVERHAUL  )
23. INSTALL REAR SEAT CUSHION ASSY (SEE  OVERHAUL  )
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
25. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
26. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
