Vehicle Lift And Support Locations

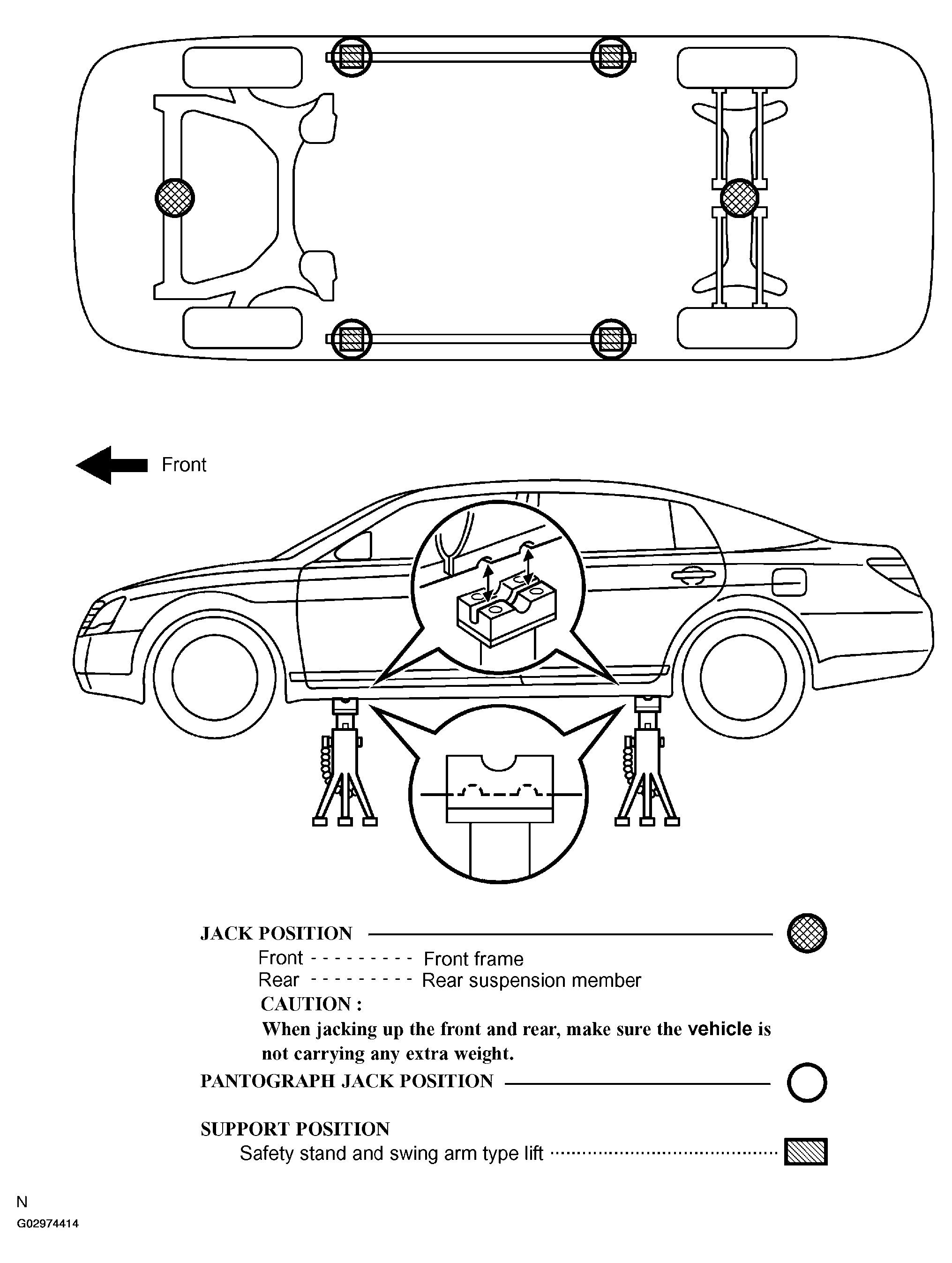

Fig 1: Identifying Vehicle Lift And Support Locations
G02974414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

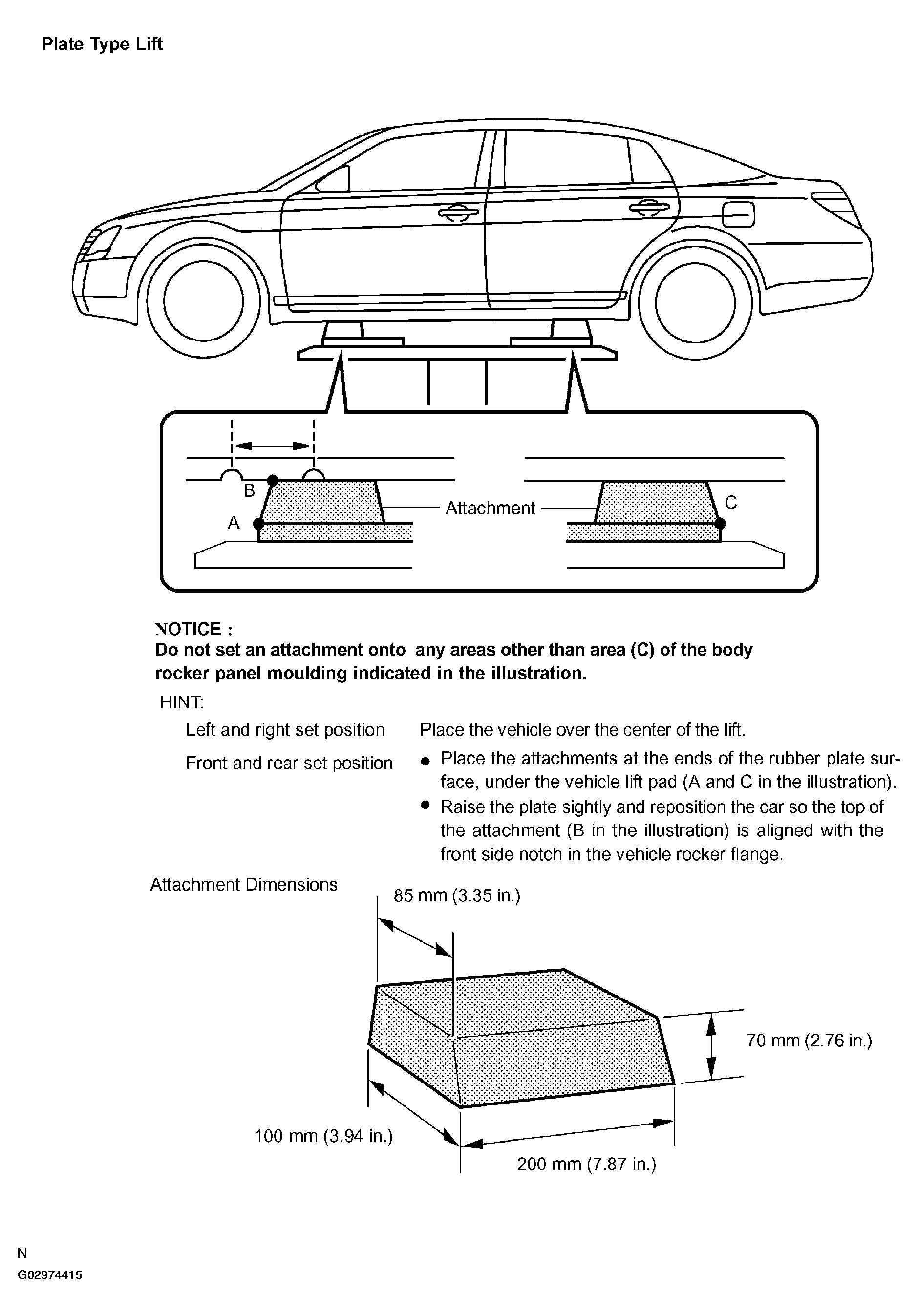

Fig 2: Identifying Plate Type Lift Spacers
G02974415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
