Fuel Tank ASSY (2GR-FE): Components

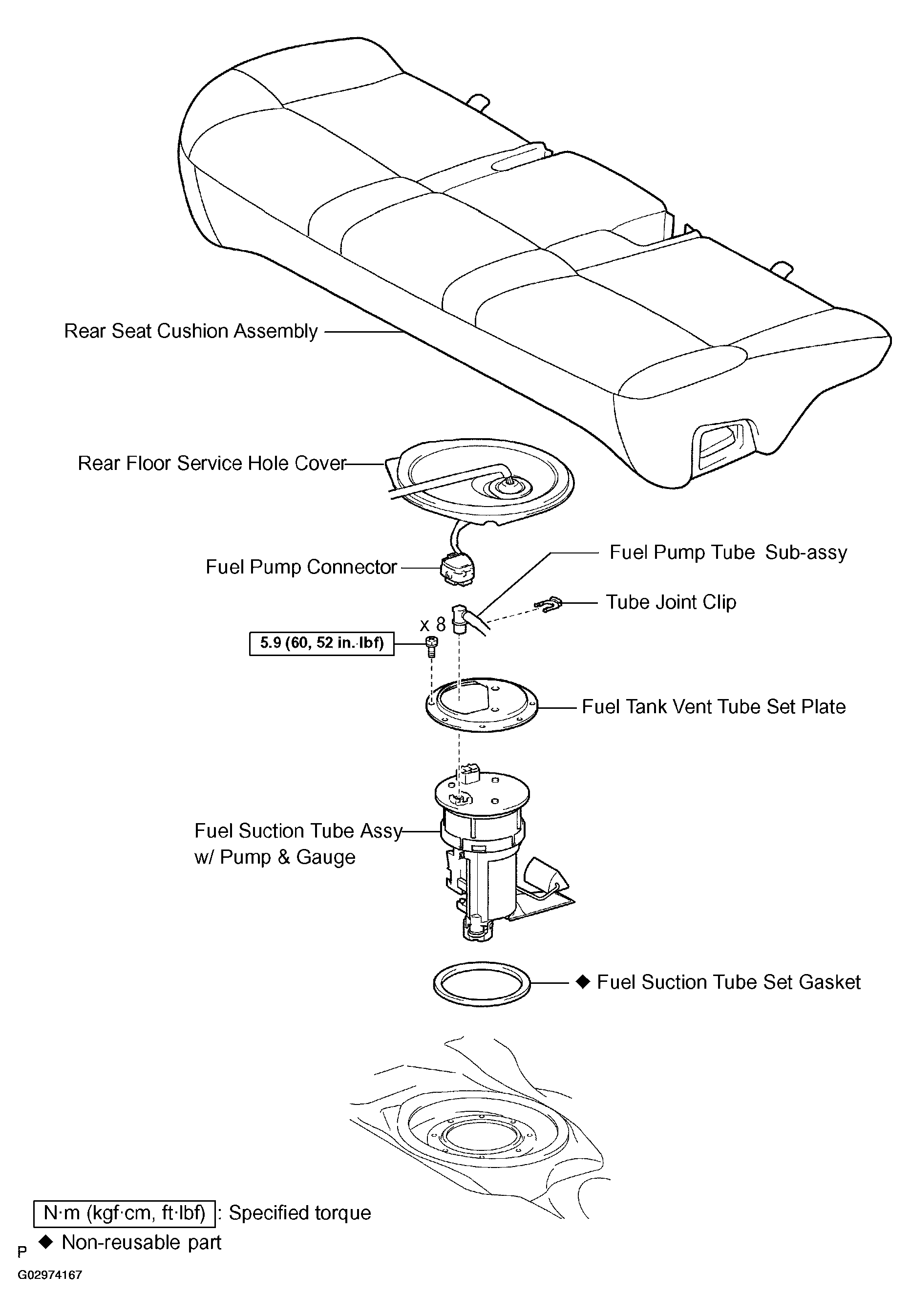

Fig 1: Identifying Fuel Tank Assy (2GR-FE) Components And Tightening Torques (1 Of 3)
G02974167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Tank Assy (2GR-FE) Components And Tightening Torques (2 Of 3)
G02974168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

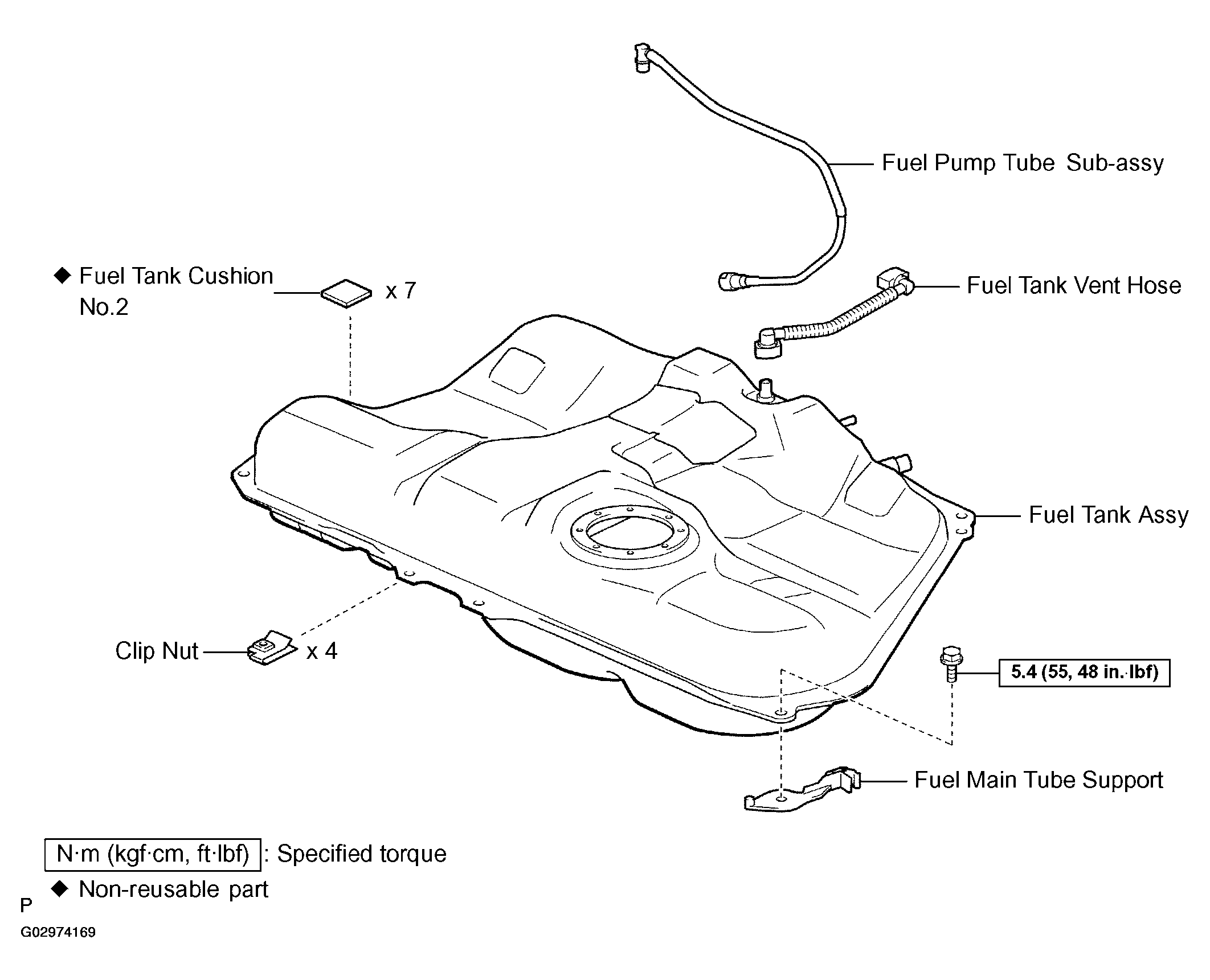

Fig 3: Identifying Fuel Tank Assy (2GR-FE) Components And Tightening Torques (3 Of 3)
G02974169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
