Fuel Pump ASSY (2GR-FE): Components

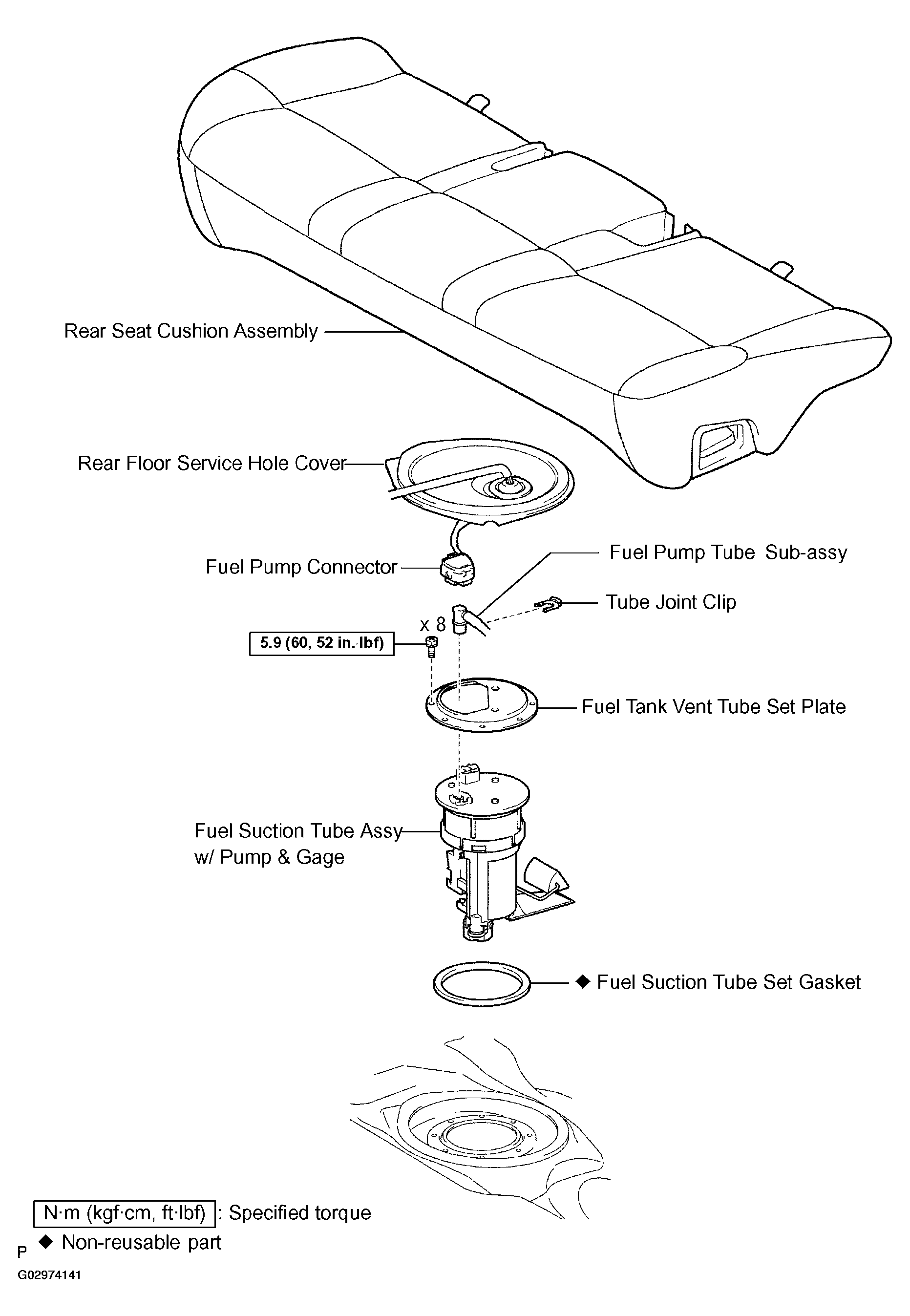

Fig 1: Identifying Fuel Pump Assy (2GR-FE) Components And Tightening Torques (1 Of 2)
G02974141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

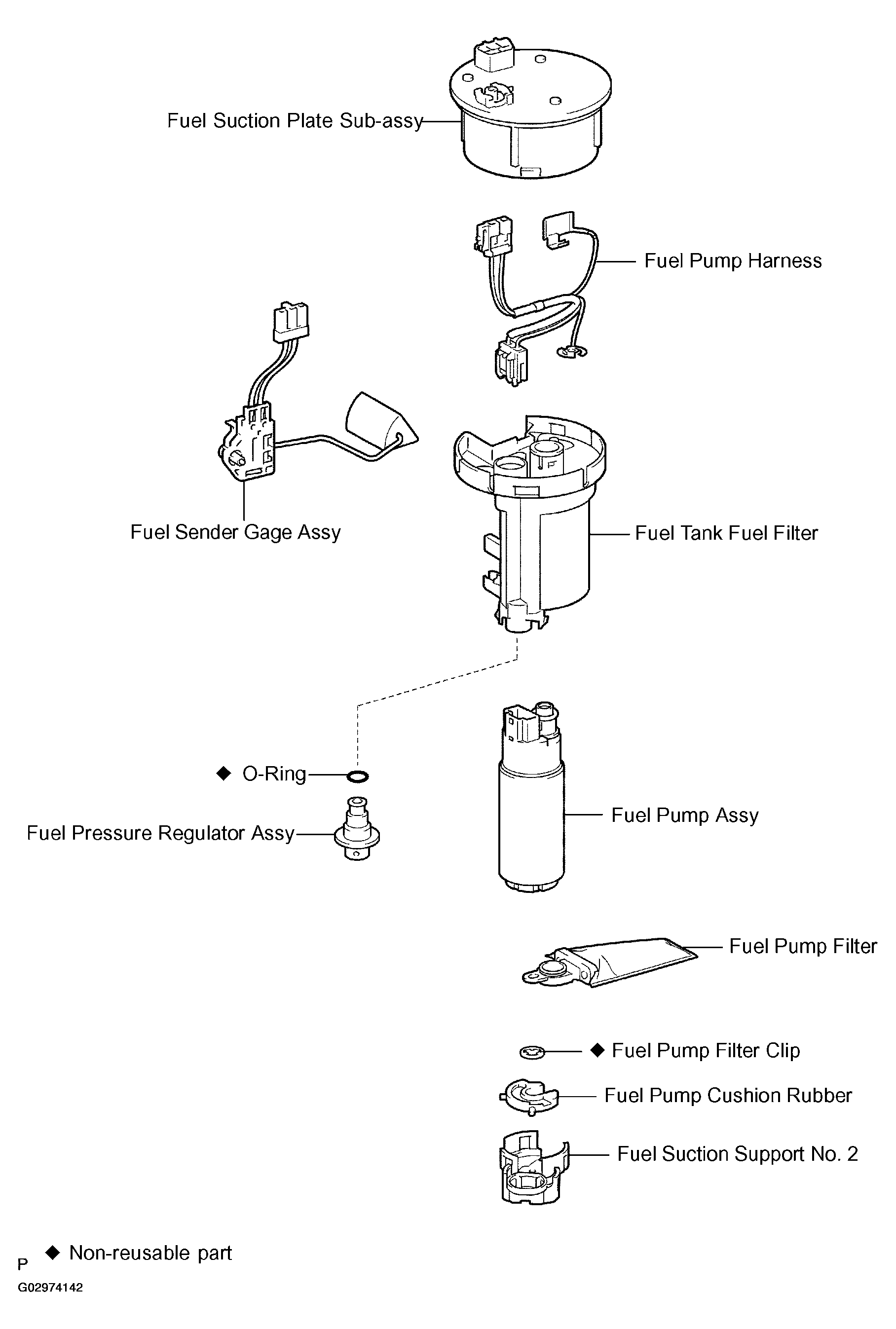

Fig 2: Identifying Fuel Pump Assy (2GR-FE) Components And Tightening Torques (2 Of 2)
G02974142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
