Intake Air Control System: Location

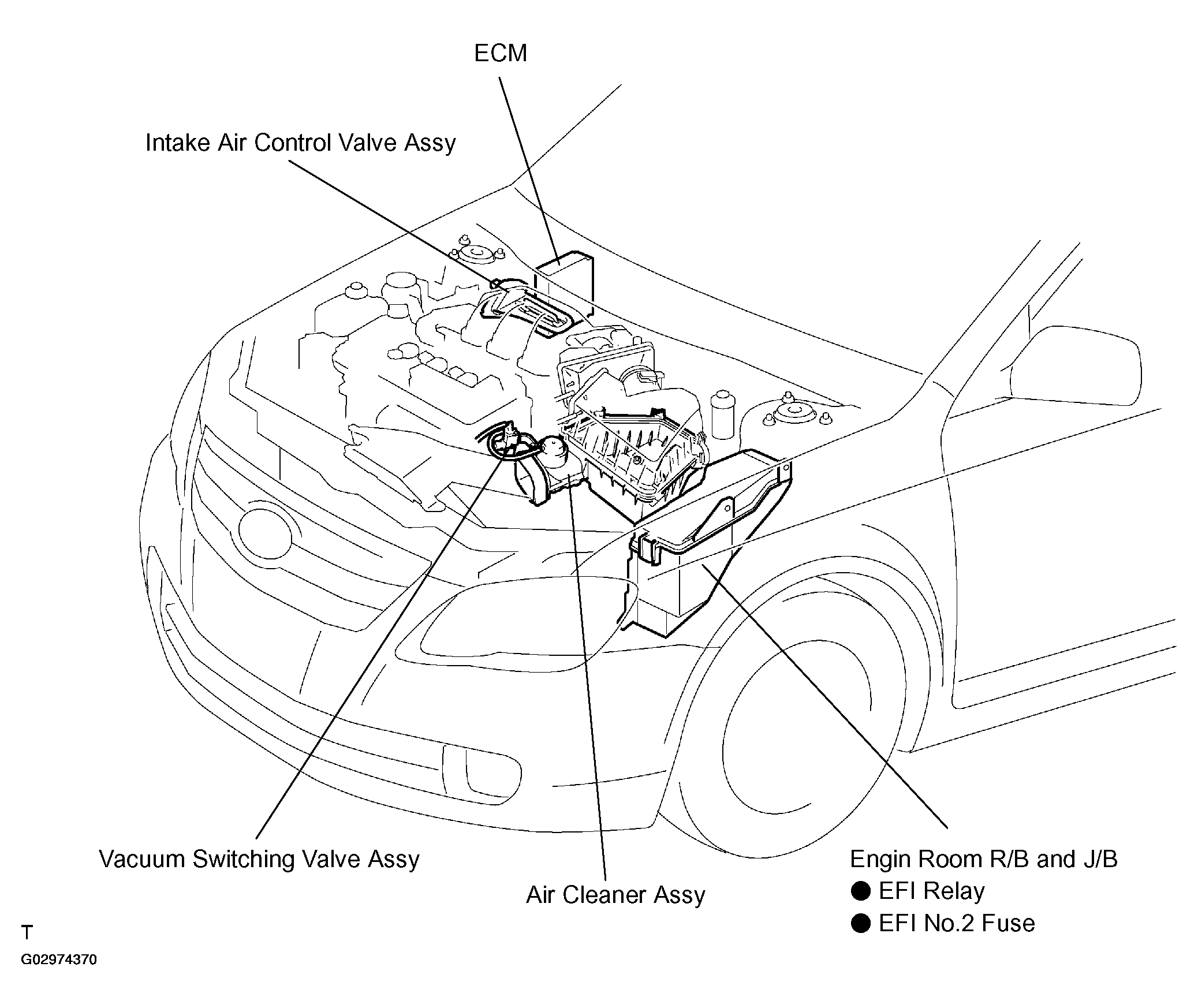

Fig 1: Identifying Intake Air Control System Components Location (2GR-FE)

G02974370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
