Engine Exhaust Assembly: Components

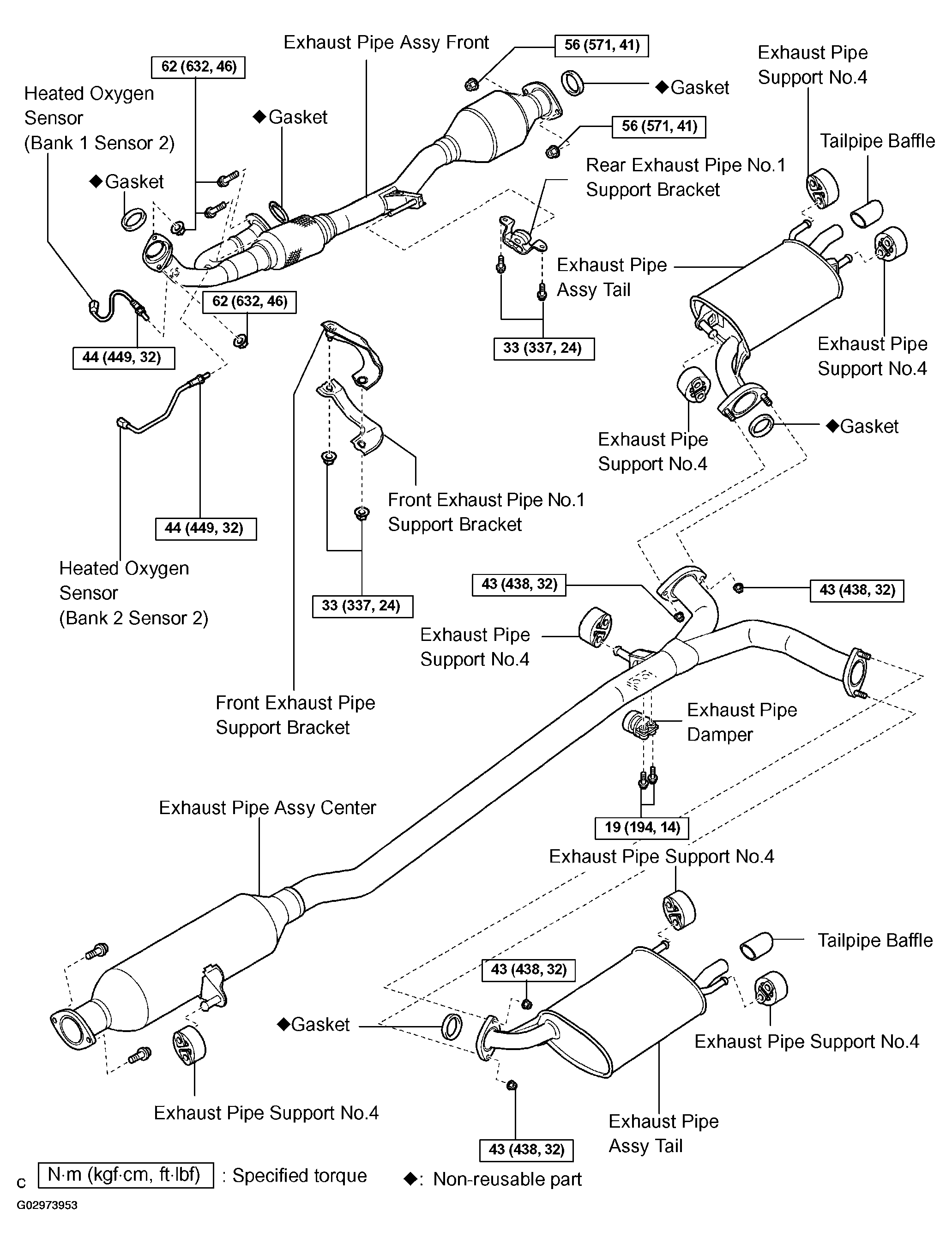

Fig 1: Identifying Exhaust Pipe Assy Components (2GR-FE)

G02973953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
