Generator ASSY (2GR-FE): Components

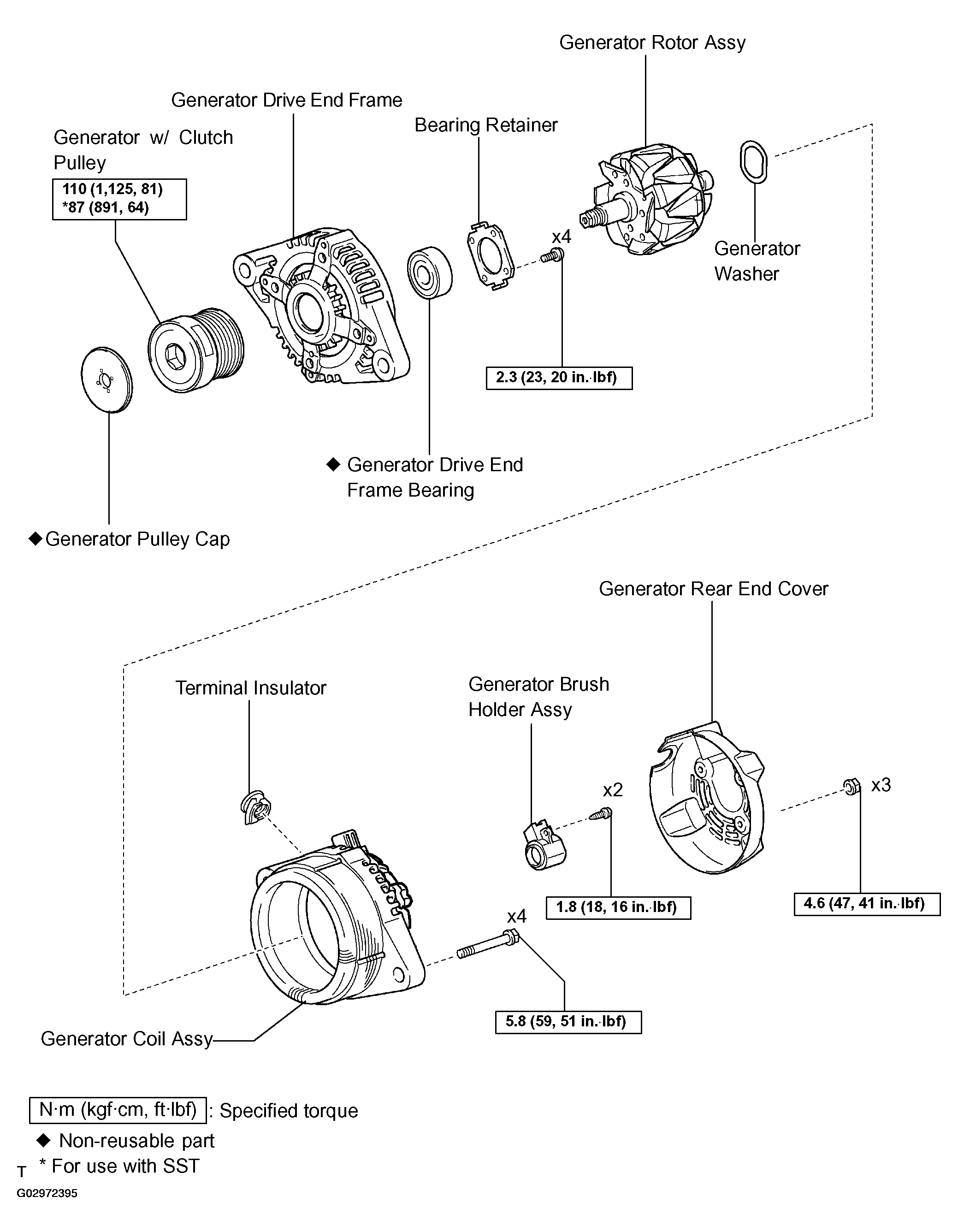

Fig 1: Identifying Generator Assy (2GR-FE) Components
G02972395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
