Power Mirror Control System: Location

  1. POWER MIRROR CONTROL SYSTEM (w/MEMORY) (SEE  LOCATION  )
  2. POWER MIRROR CONTROL SYSTEM (W/O MEMORY)

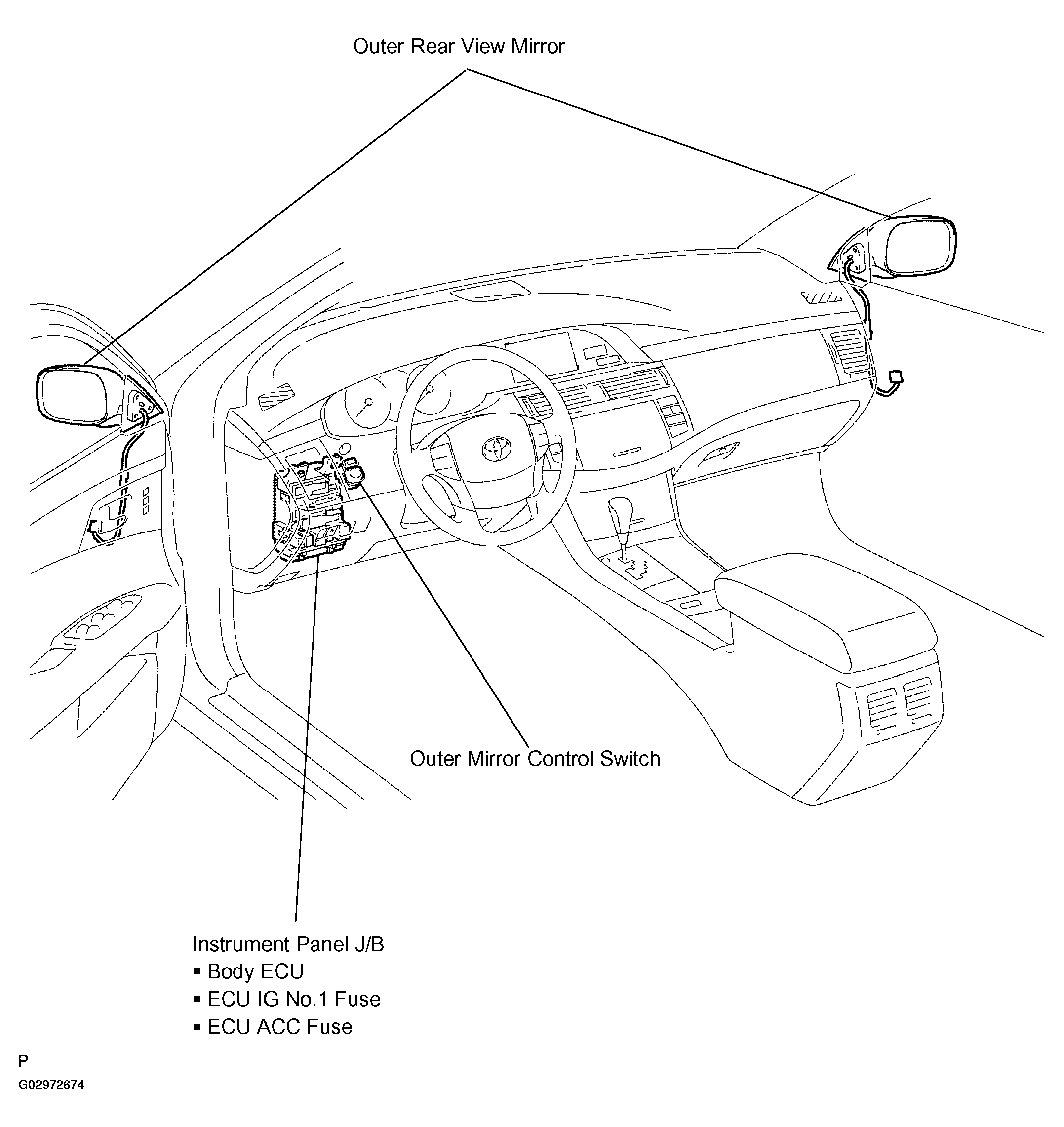

    Fig 1: Identifying Power Mirror Control System Component Location
    G02972674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
