Outer Rear View Mirror LH: Replacement

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE OUTER REAR VIEW MIRROR ASSY LH (SEE  OVERHAUL  )
2. REMOVE OUTER REAR VIEW MIRROR LH
   1. Tape the lower part of outer mirror body with protection tape.
   2. Using a roof-molding remover, disengage the 2 claws at the upper part of the mirror.
   3. Pull out the outer rear view mirror.

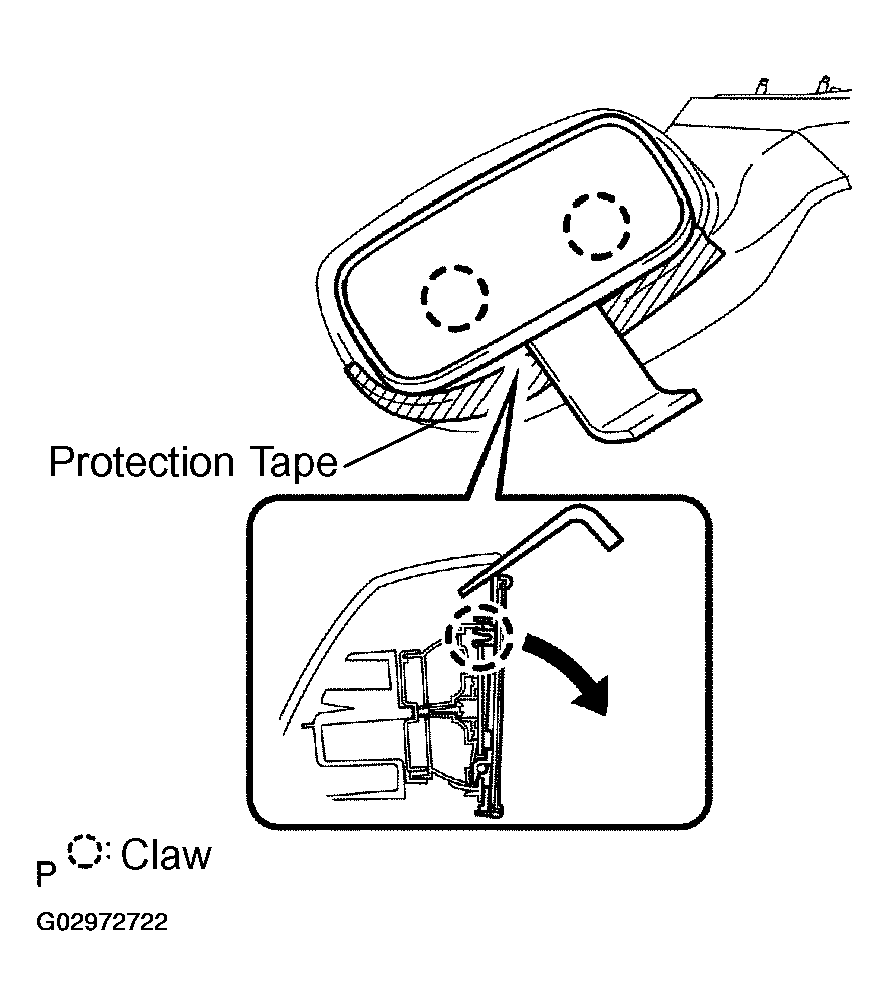

      Fig 1: Removing Outer Rear View Mirror LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL OUTER REAR VIEW MIRROR LH
   1. Insert claws (A) at in the lower part of the mirror into the actuator holes.
   2. Set the mirror in the actuator.
   3. Securely engage 2 claws (B) at the upper part of the mirror.

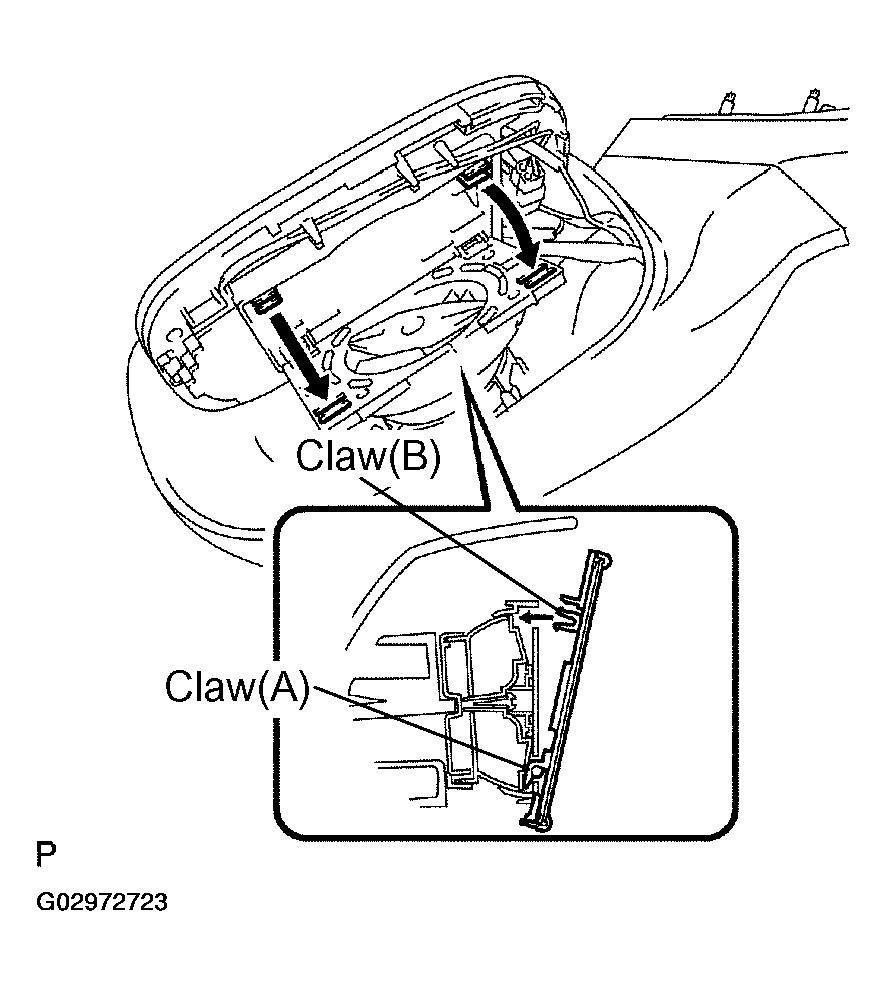

      Fig 2: Installing Outer Rear View Mirror LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
