Back Window Glass: Components

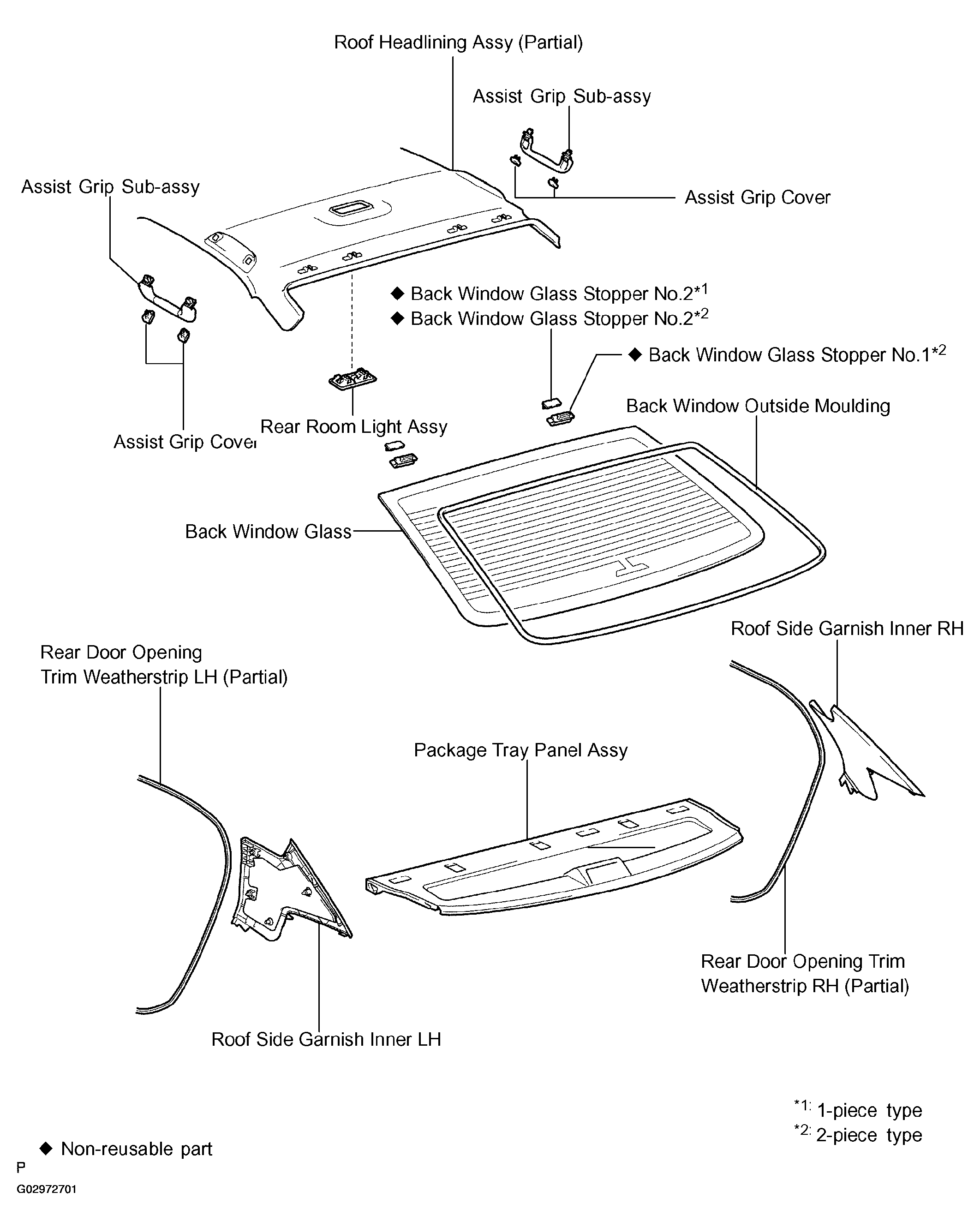

Fig 1: Identifying Back Window Glass Components

G02972701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
