Auto Up/Down Function Circuit (Driver Side): Wiring Diagram

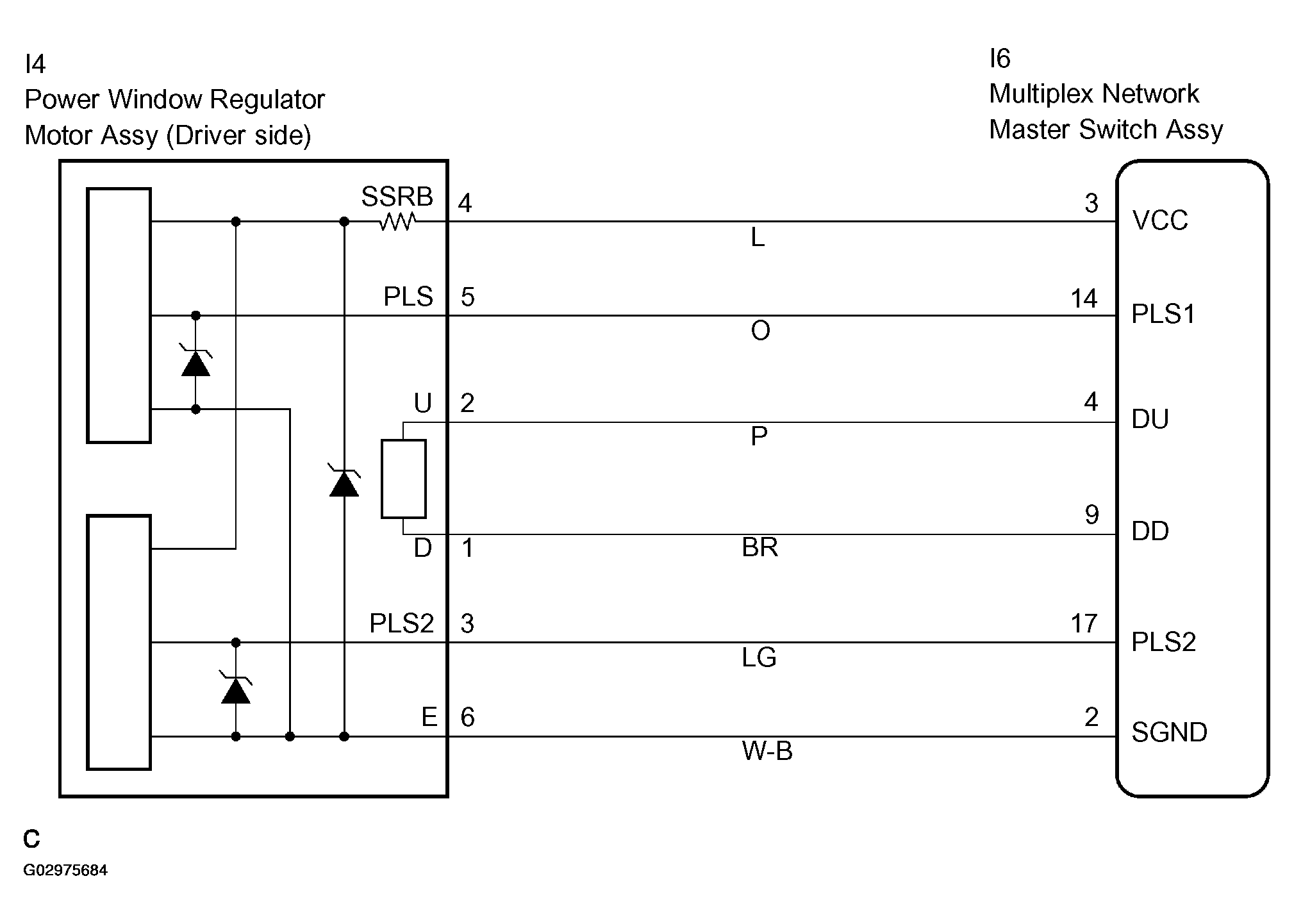

Fig 1: Auto Up/Down Function Circuit - Driver Side

G02975684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
