System Diagram

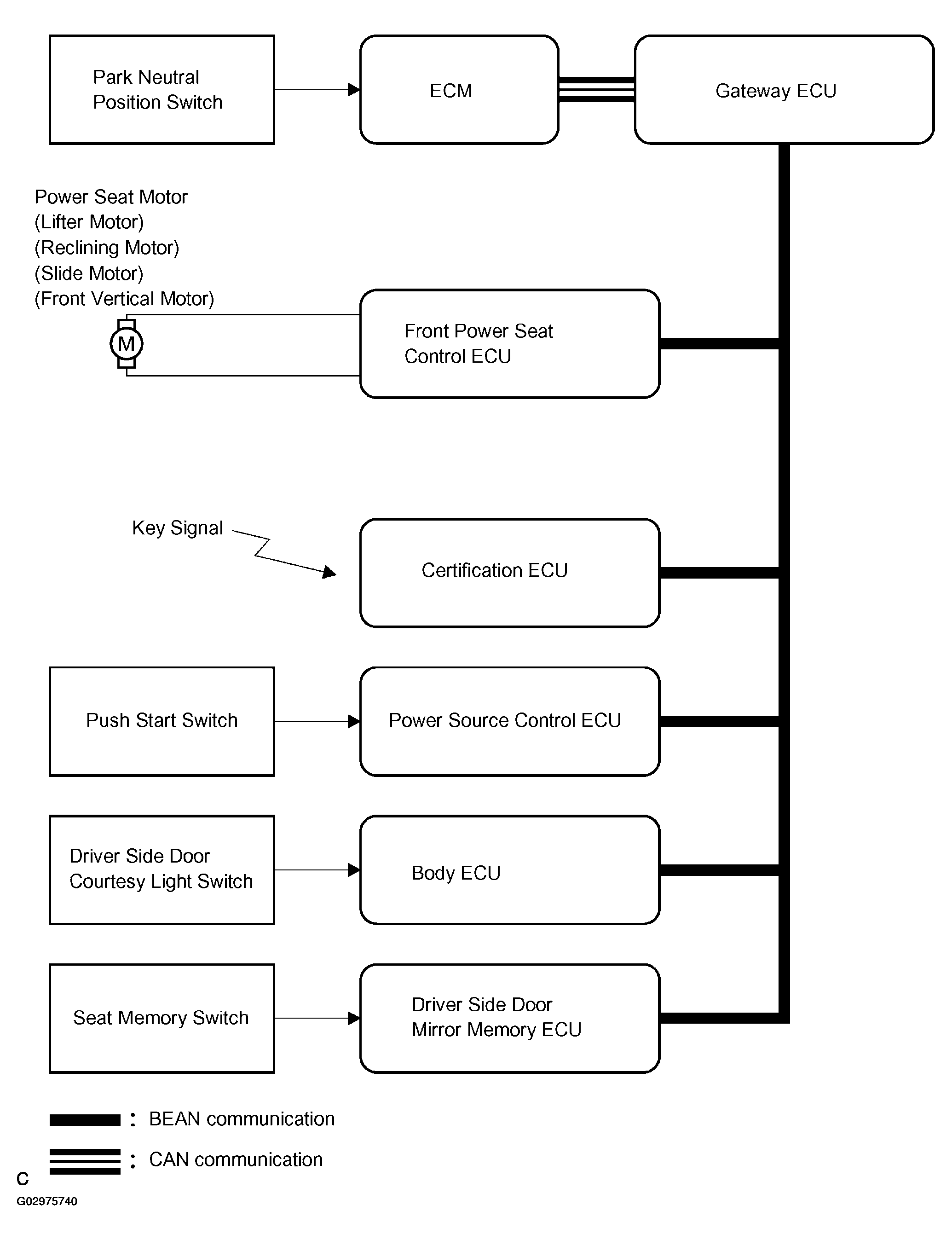

Fig 1: Power Seat Control System Diagram
G02975740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. SIGNAL COMMUNICATION TABLE

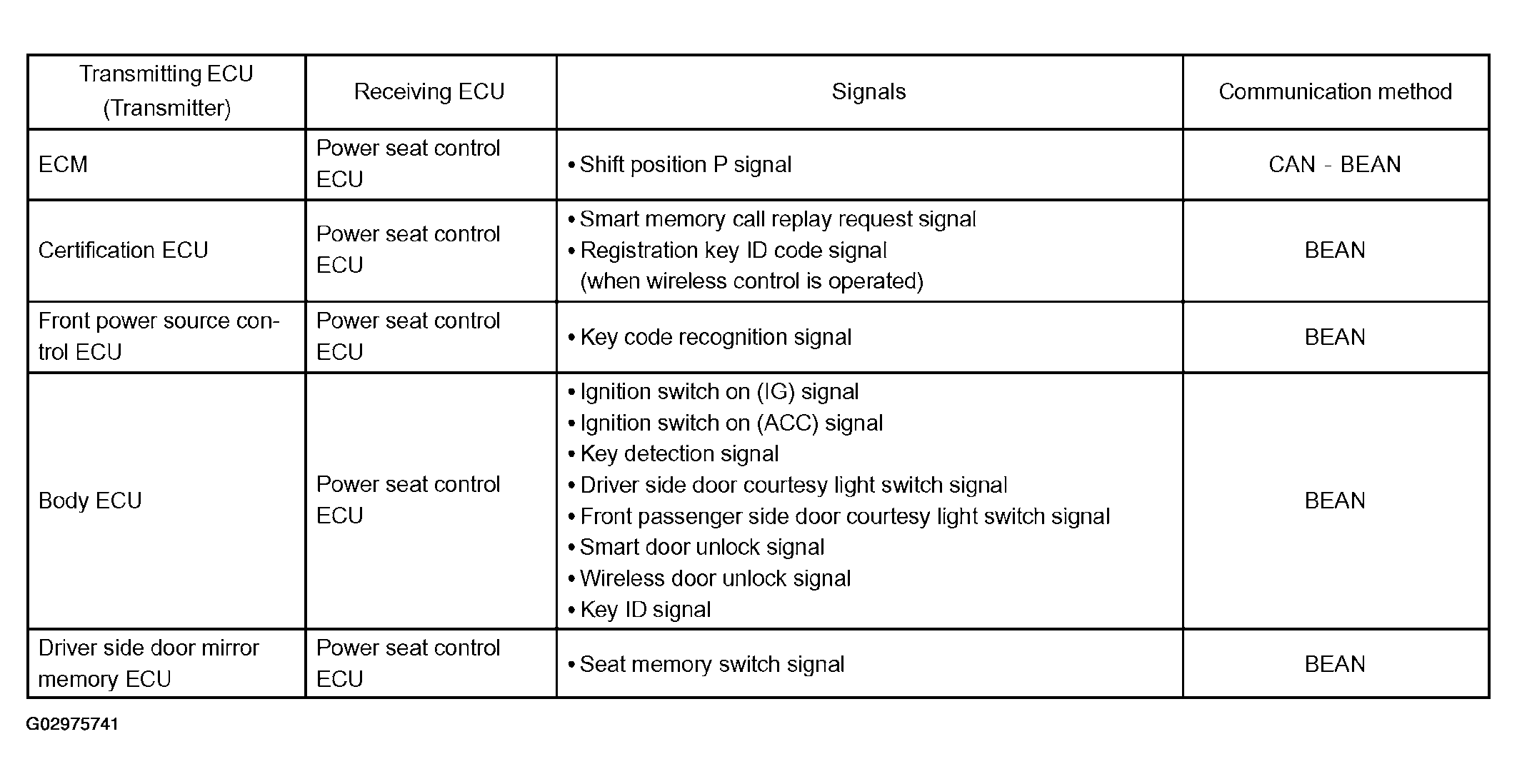

    Fig 2: Signal Communication Table
    G02975741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
