Remote Control Mirror Switch Circuit: Wiring Diagram

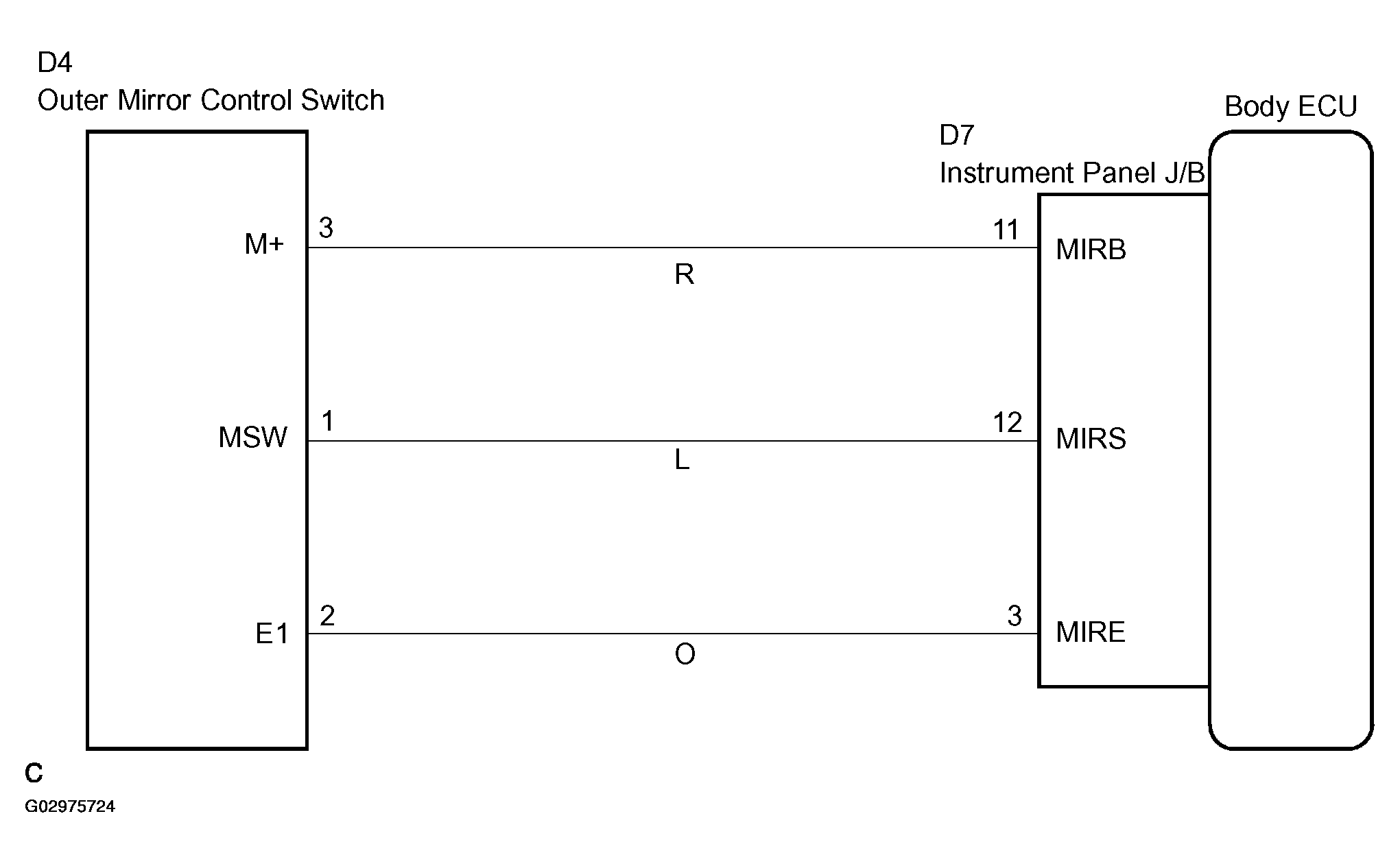

Fig 1: Remote Control Mirror Switch Wiring Diagram

G02975724

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
