Circuit Description

Engine start conditions or system malfunctions can be checked by the status of the engine switch indicator light.

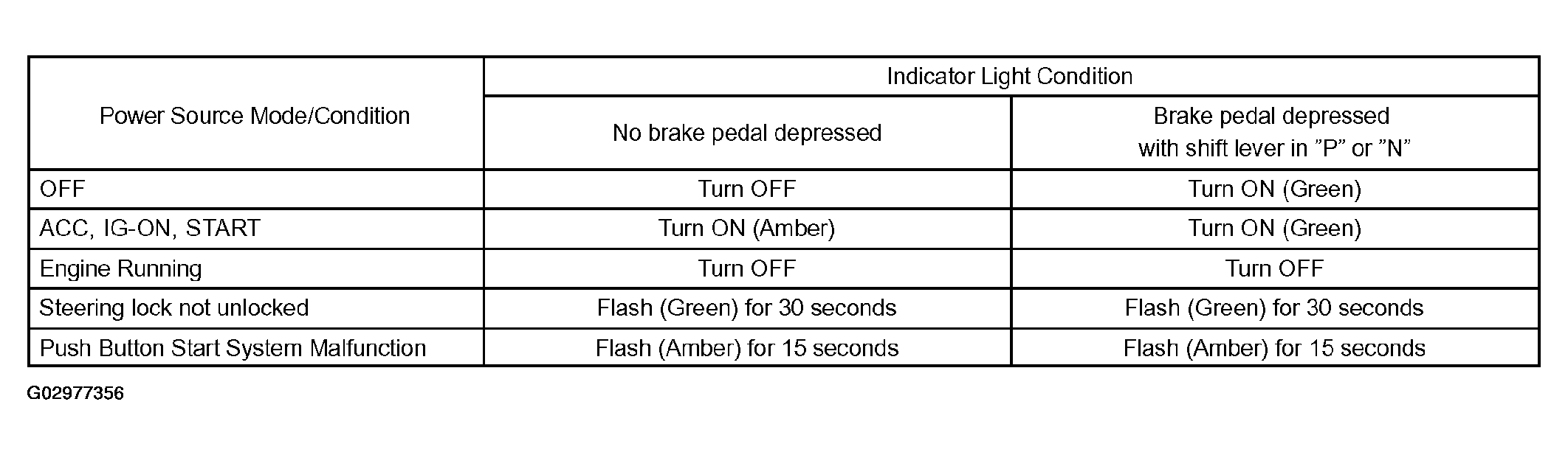

Engine switch indicator light condition:

Fig 1: Engine Switch Indicator Light Condition Chart
G02977356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
