Electric Steering Lock
>>
Location
Electric Steering Lock: Location

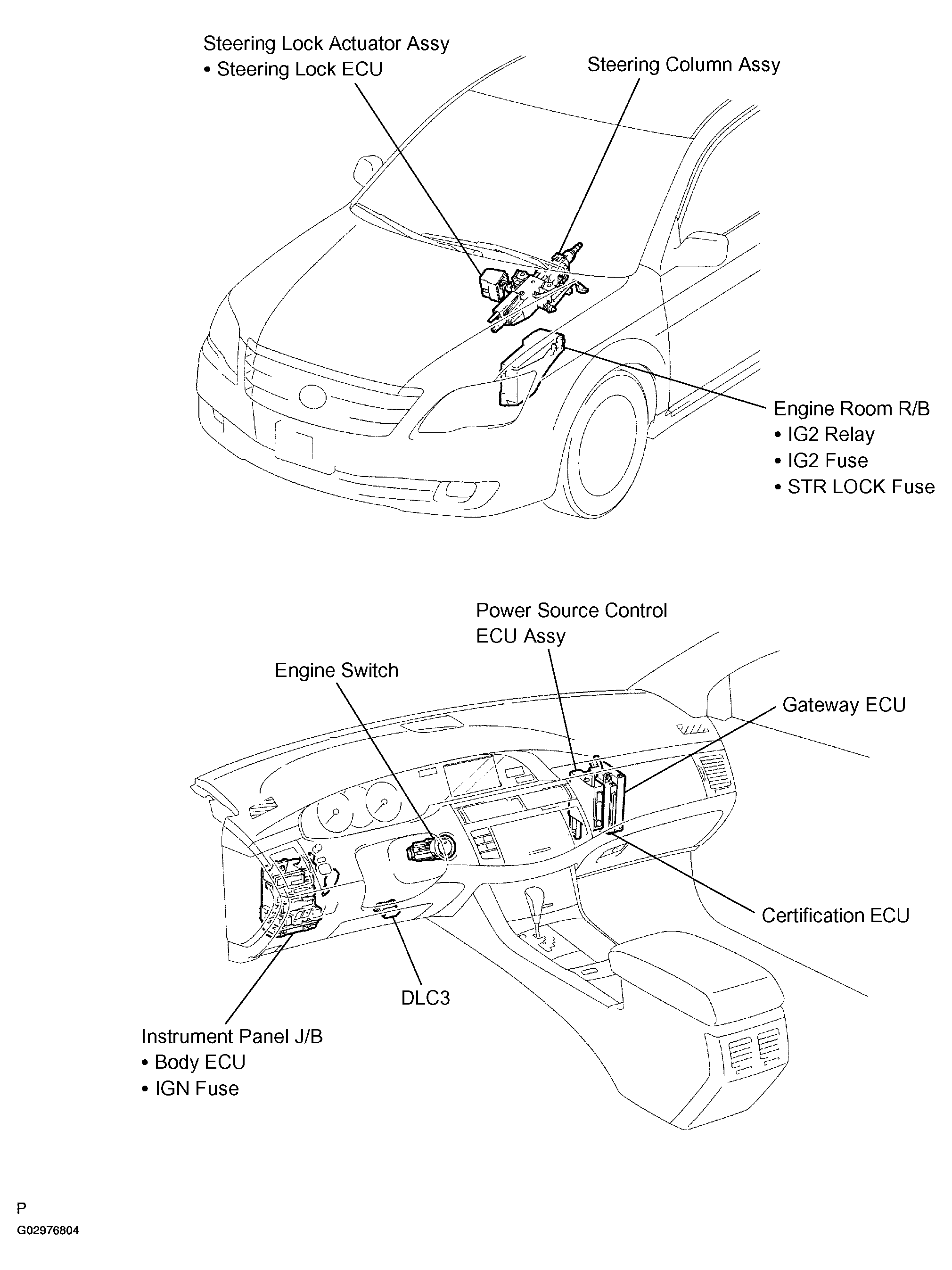

Fig 1: Identifying Electric Steering Lock Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
