Touch Sensor Circuit: Wiring Diagram

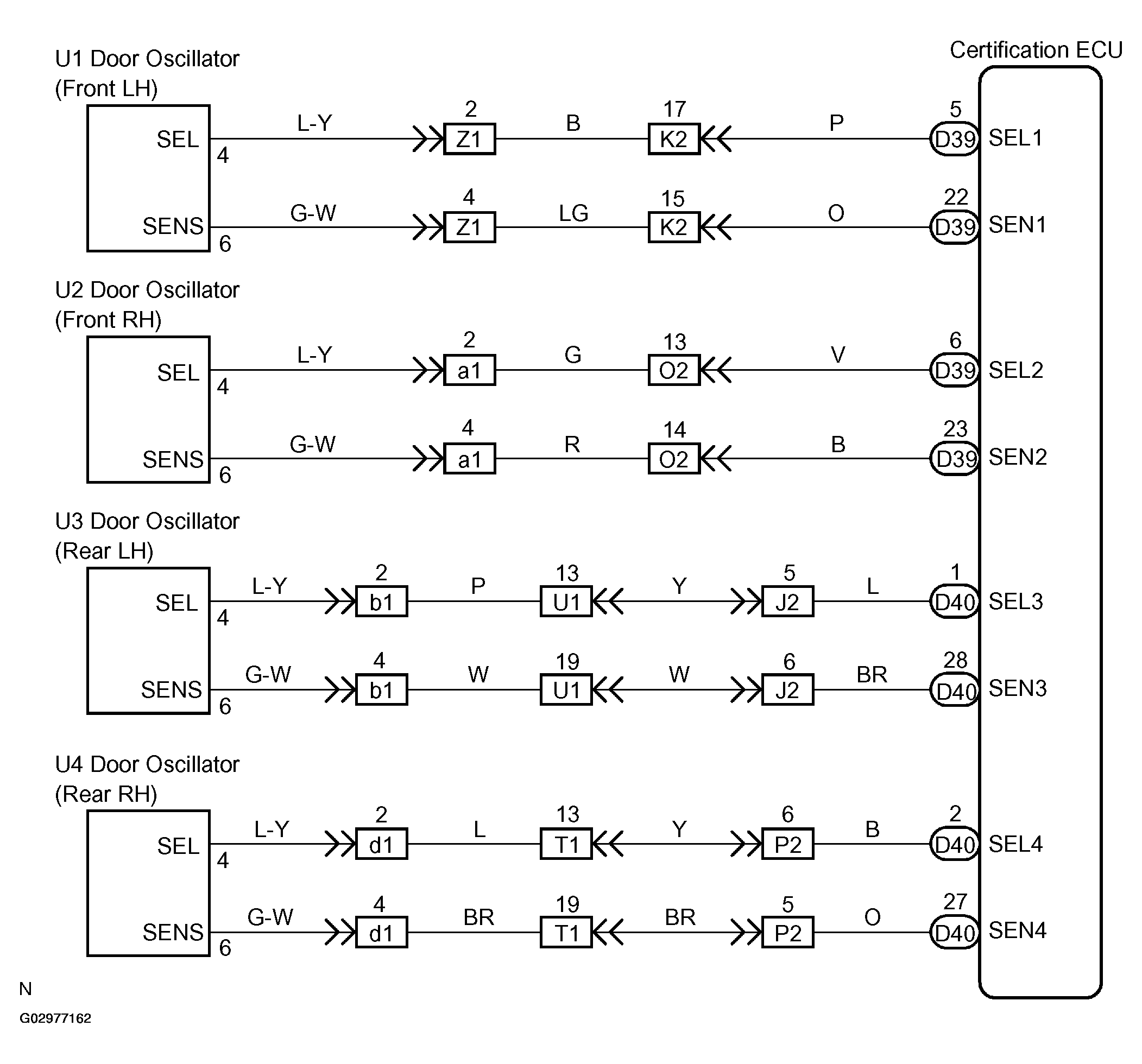

Fig 1: Touch Sensor Circuit

G02977162

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
