Lock Switch Circuit: Wiring Diagram

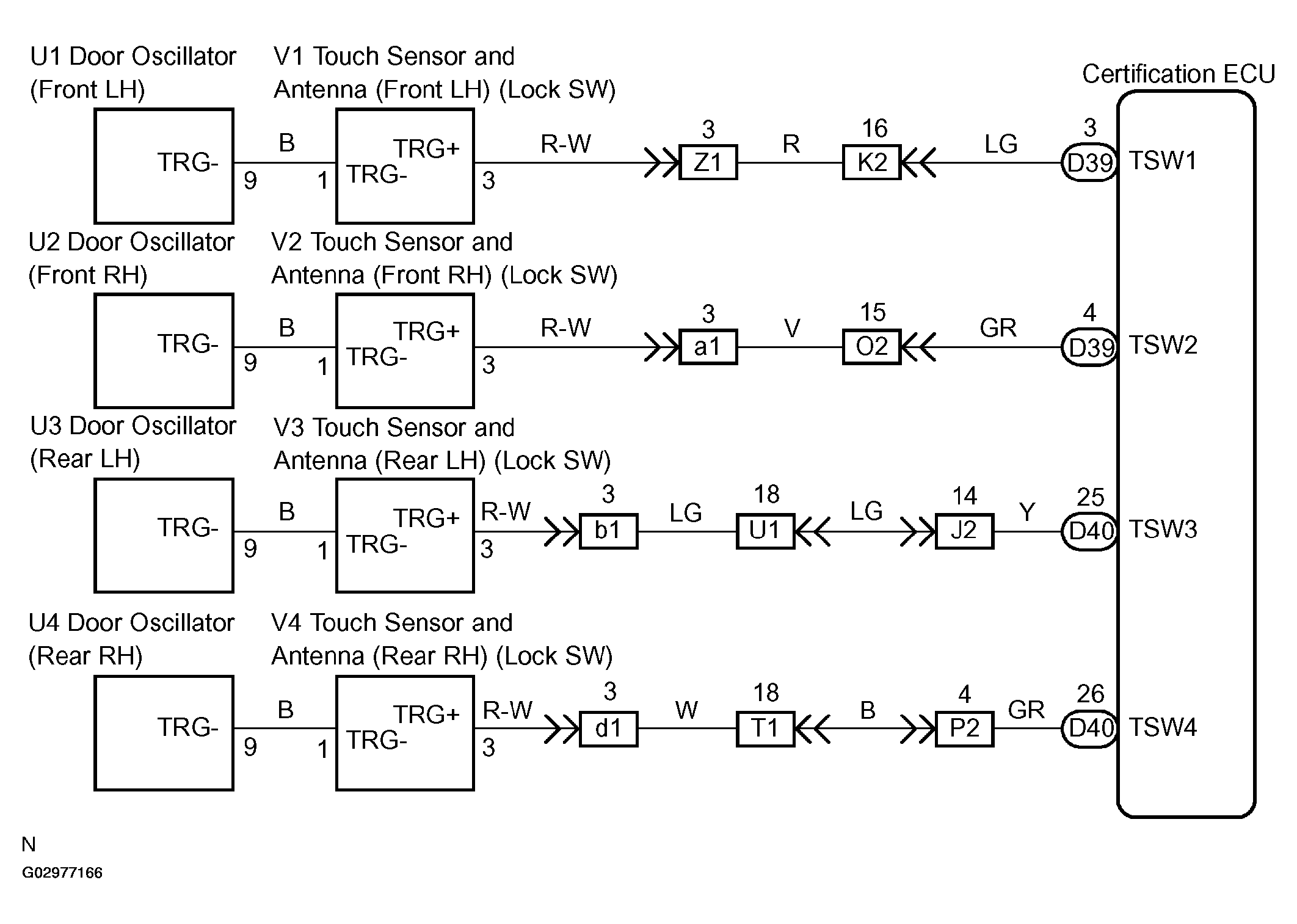

Fig 1: Lock Switch Circuit

G02977166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
