Avalon XLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Power Door Lock Control System - Diagnostics
>>
System Diagram
System Diagram

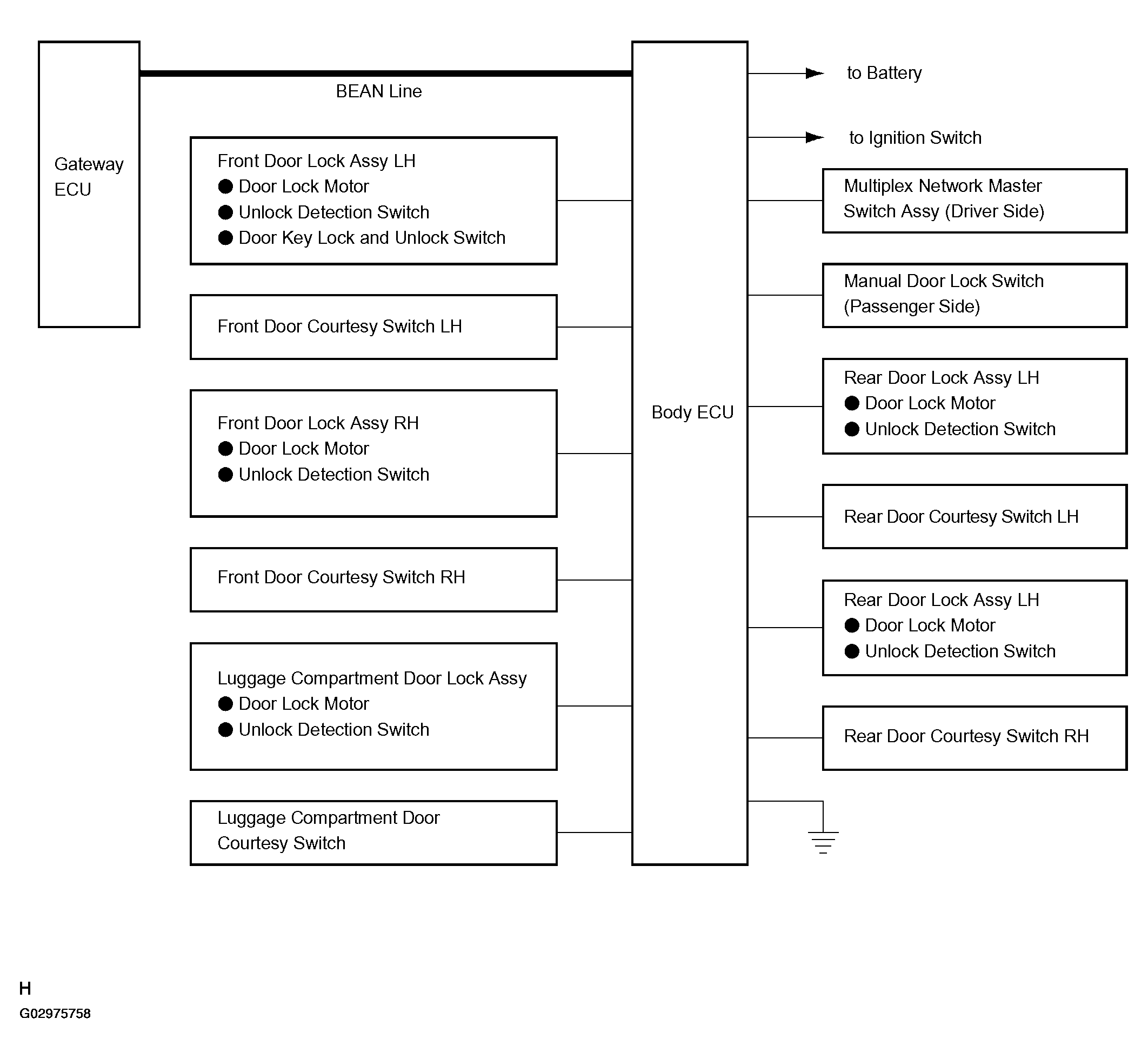

Fig 1: Power Door Lock Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
