System Diagram

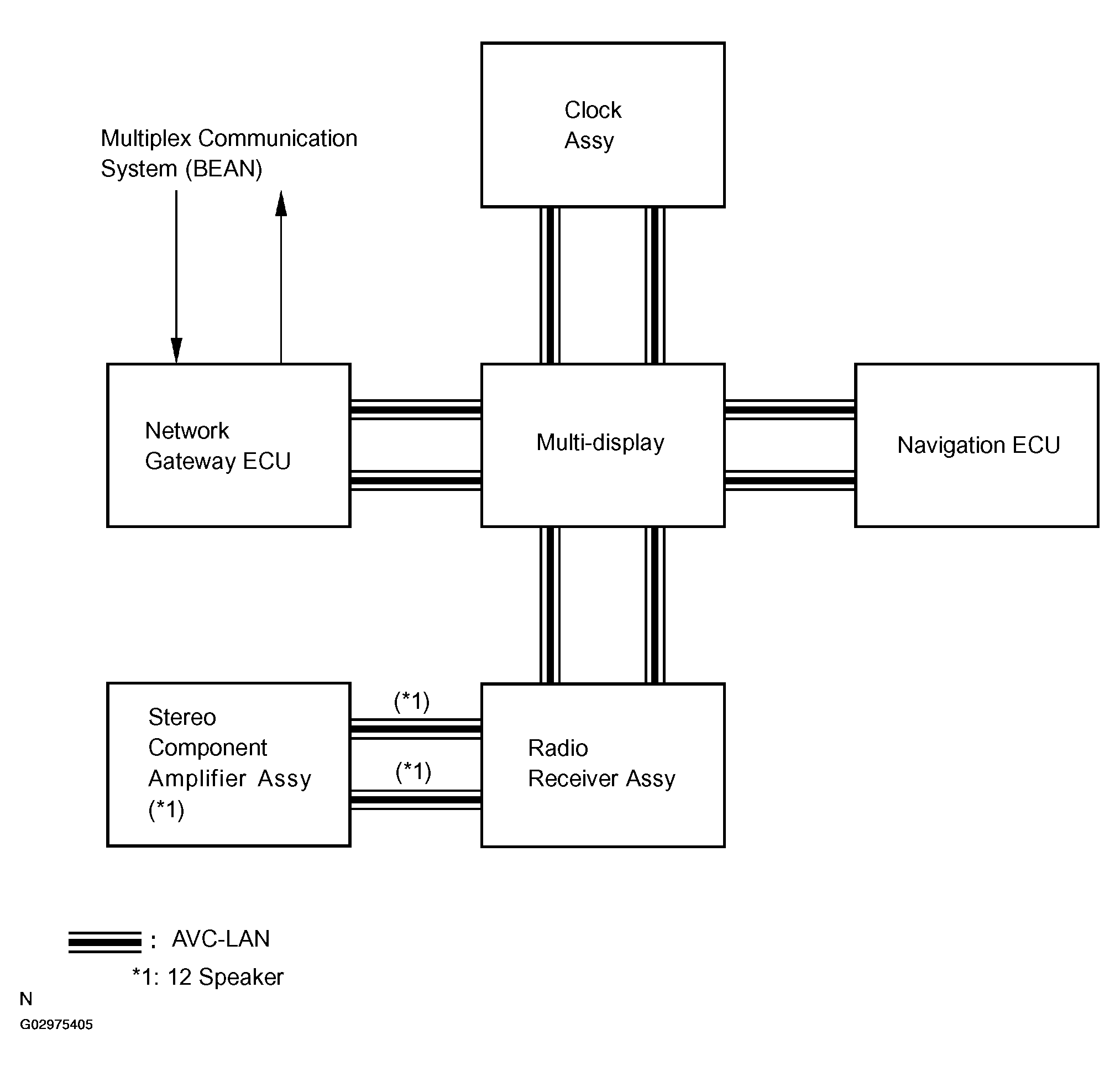

Fig 1: System Diagram - Navigation System (1 Of 2)
G02975405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

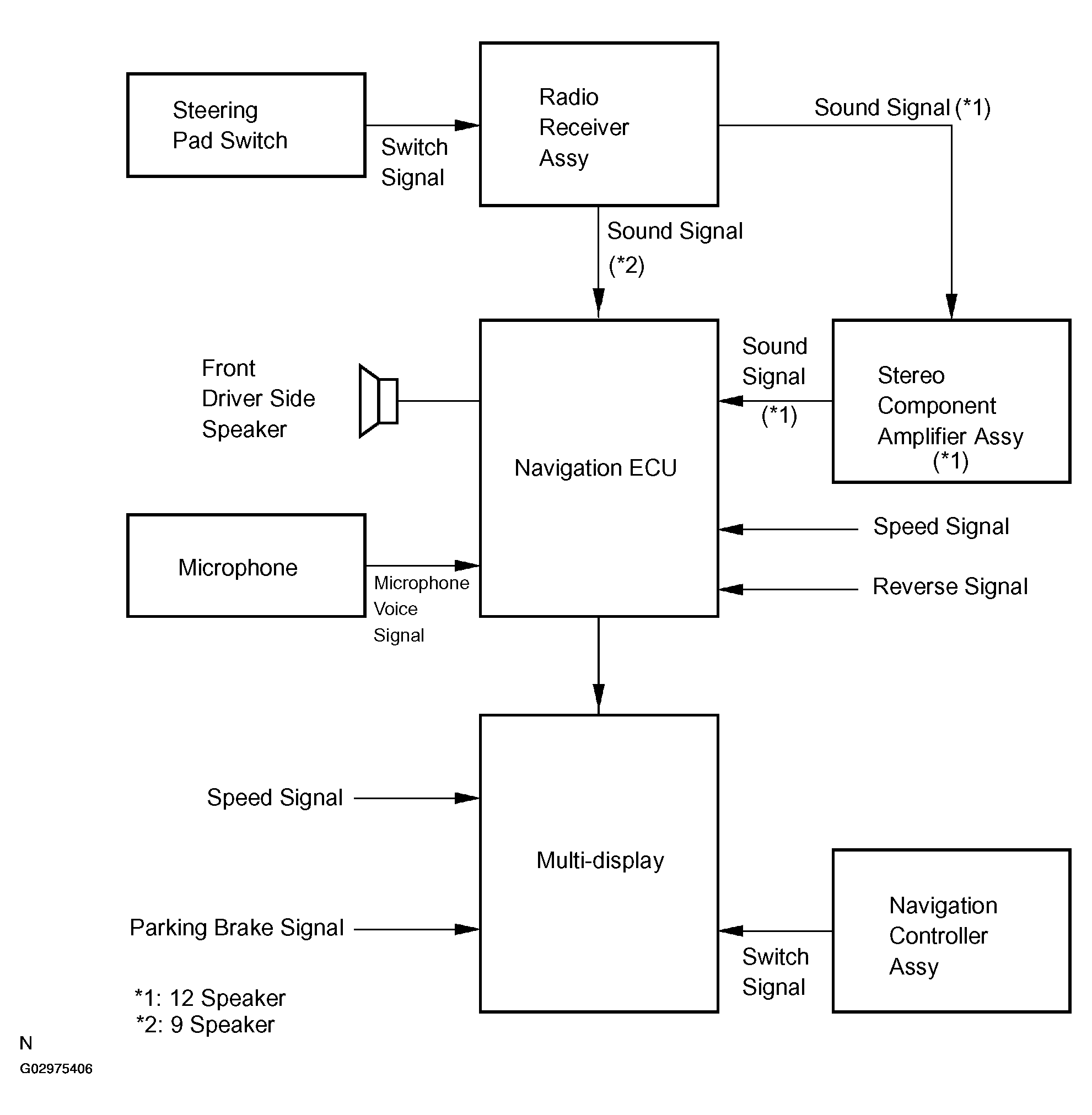

Fig 2: System Diagram - Navigation System (2 Of 2)
G02975406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
