Inspection Procedure

CHECK MAP DISC
1. Check that the map disc is not deformed or cracked.
  OK: No deformations or cracks on the map disc.

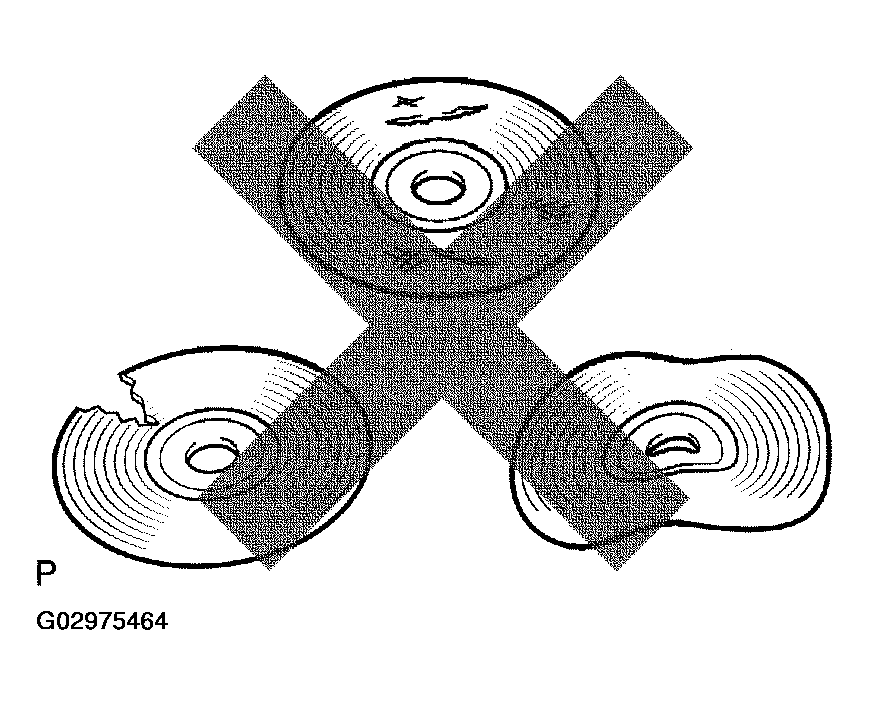

  Fig 1: Checking Map Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE MAP DISC
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
