Tape player assy function

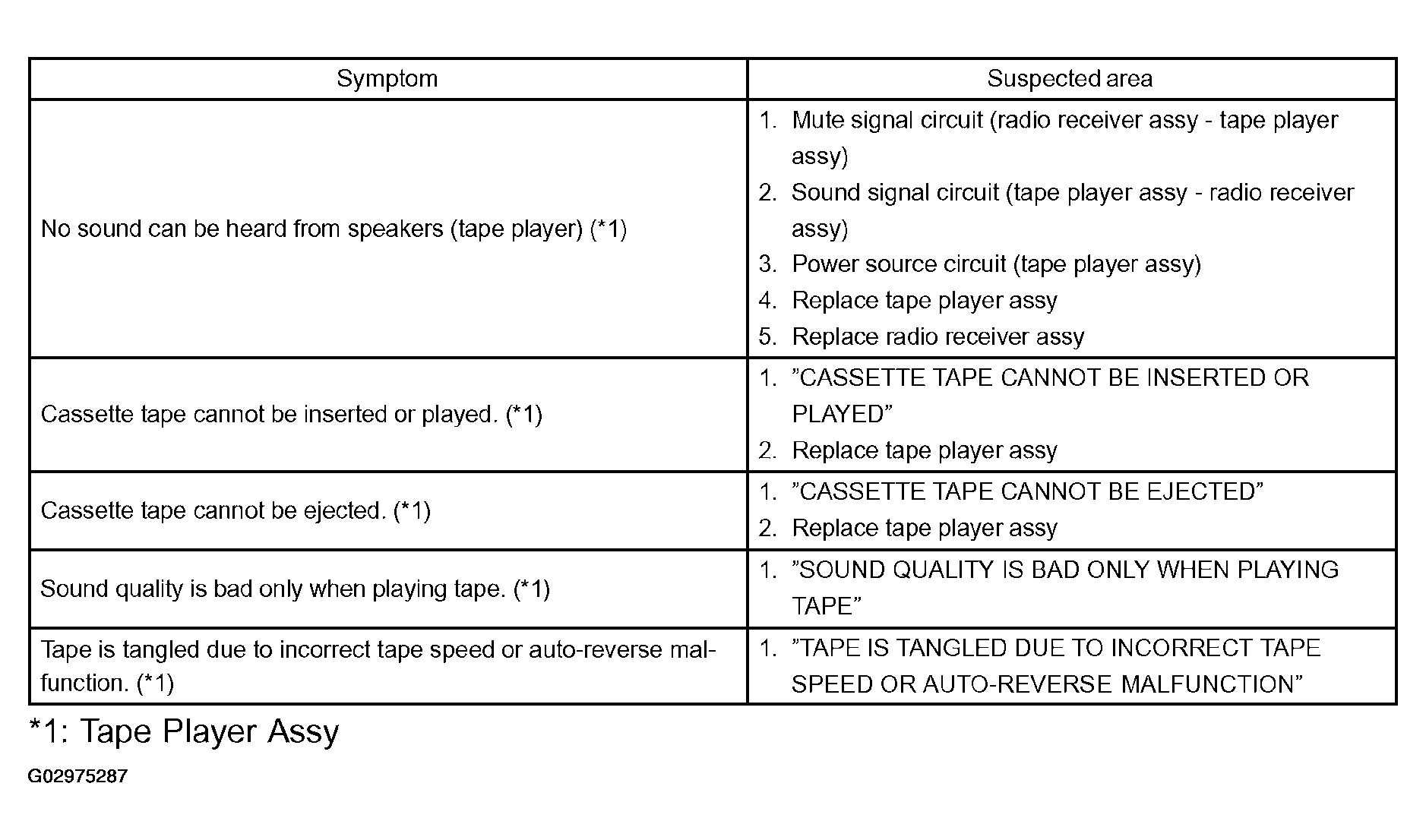

Fig 1: Tape Player Assy Function Chart

G02975287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
