DTC Check/Clear

  1. CHECK FOR DTCs
    1. Prepare the hand-held tester.
    2. Connect the hand-held tester to the DLC3 at the lower part of the instrument panel.
    3. Turn the engine switch on (IG) and turn the hand-held tester on.
    4. Use the hand-held tester to check for DTCs, and note or print the result (see the operator's manual for operating instructions).
    5. See DIAGNOSTIC TROUBLE CODE CHART  to confirm the details of the DTCs.

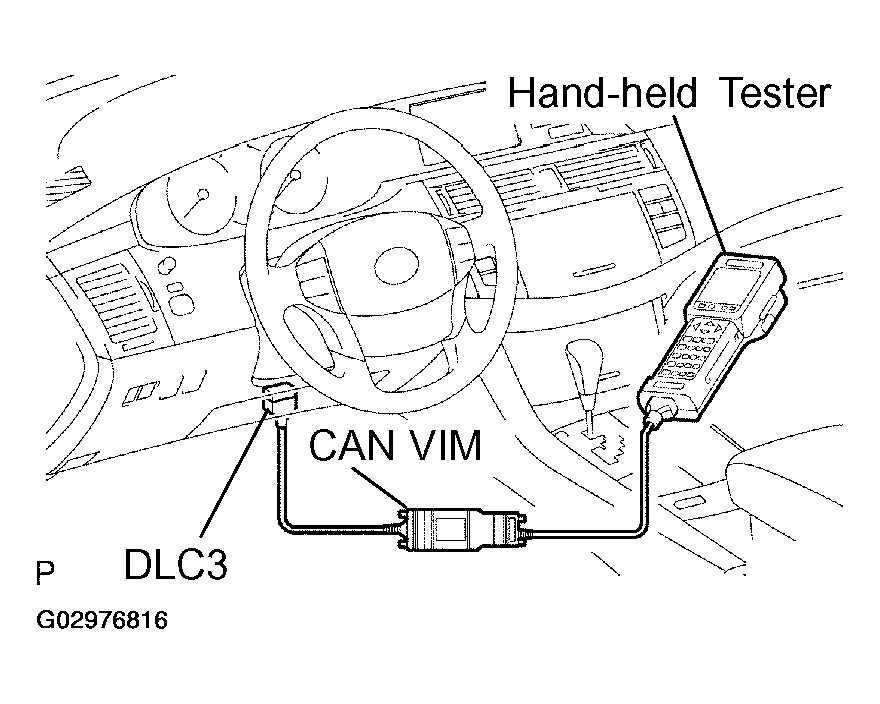

      Fig 1: Checking DTCS Using Hand Held Tester
      G02976816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CLEAR DTCs
    1. Operate the hand-held tester to clear the DTCs (see the operator's manual for operating instructions).
