Smart Key ECU Connector End View (D40)

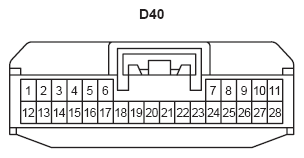

Fig 1: Smart Key ECU Connector End View (D40)

G08779322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
