Terminals Of Ecu

  1. STEERING LOCK ACTUATOR ASSY (STEERING LOCK ECU)

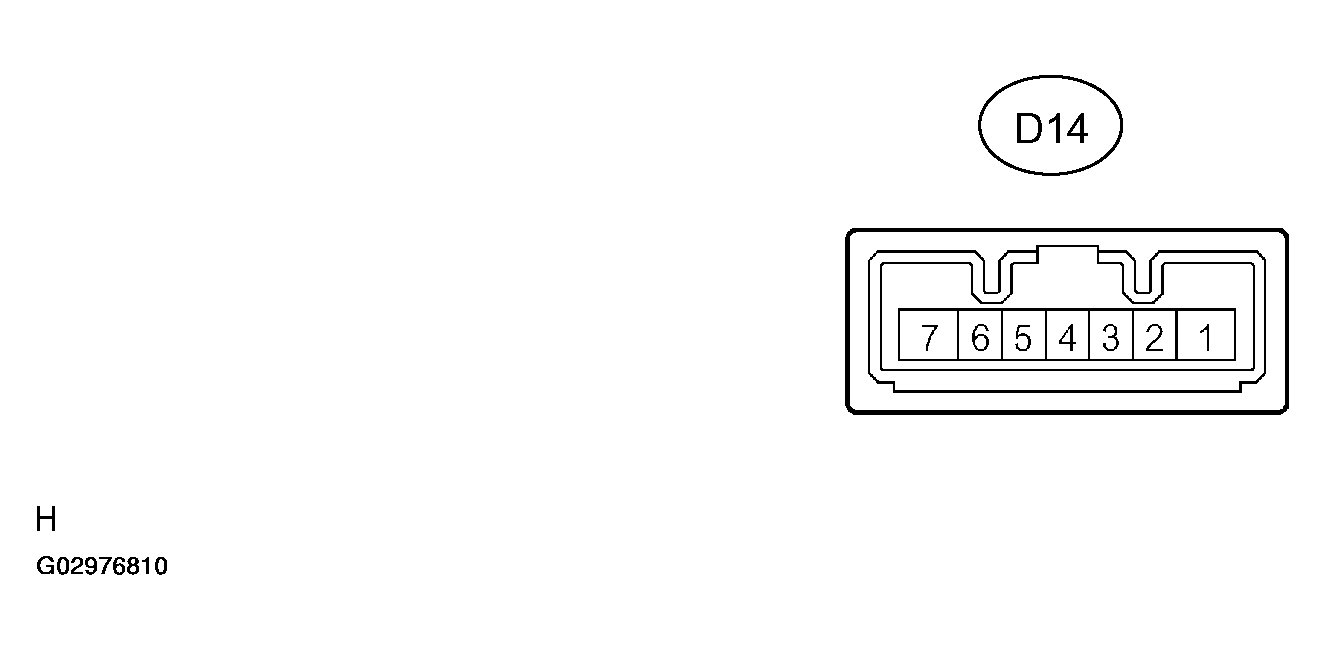

    Fig 1: Identifying D14 Connector Terminals
    G02976810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

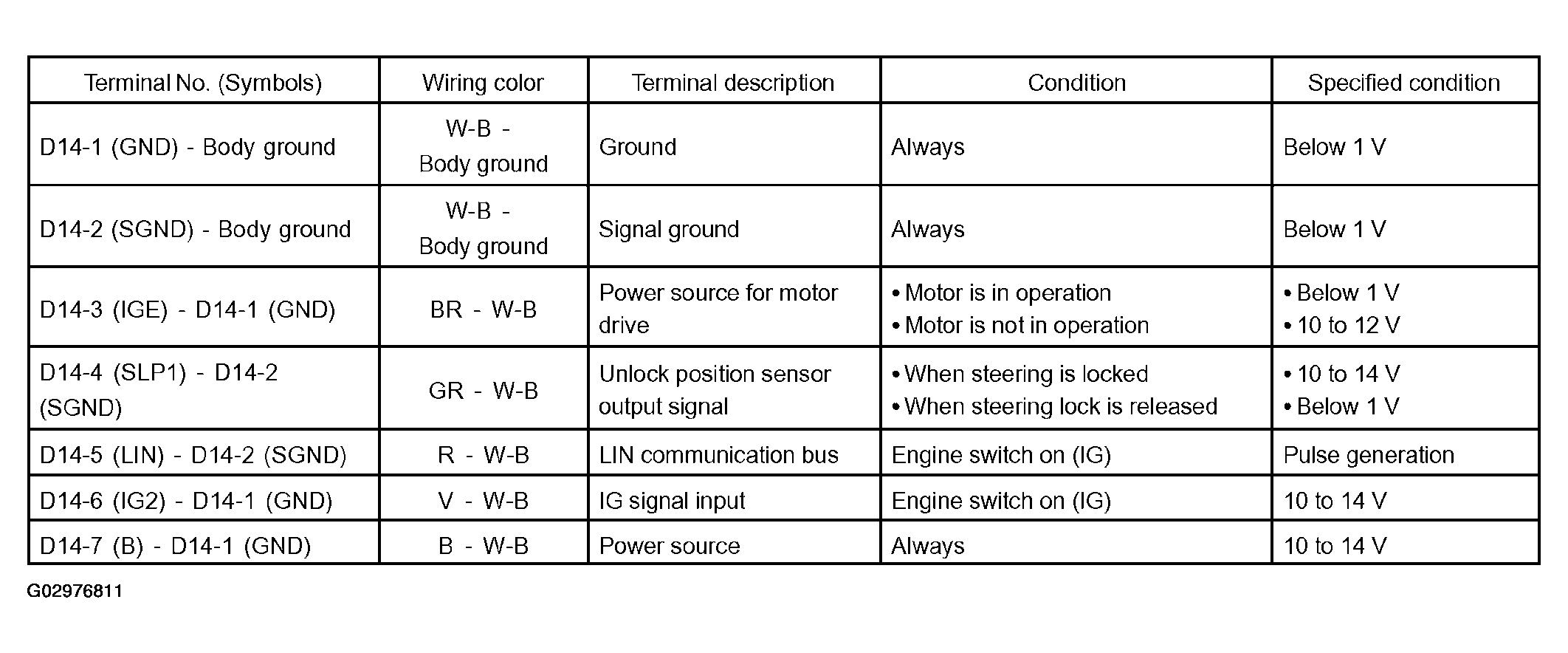

    Fig 2: D14 Connector Terminals Voltage Conditions Table
    G02976811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
