Power Source Circuit: Wiring Diagram

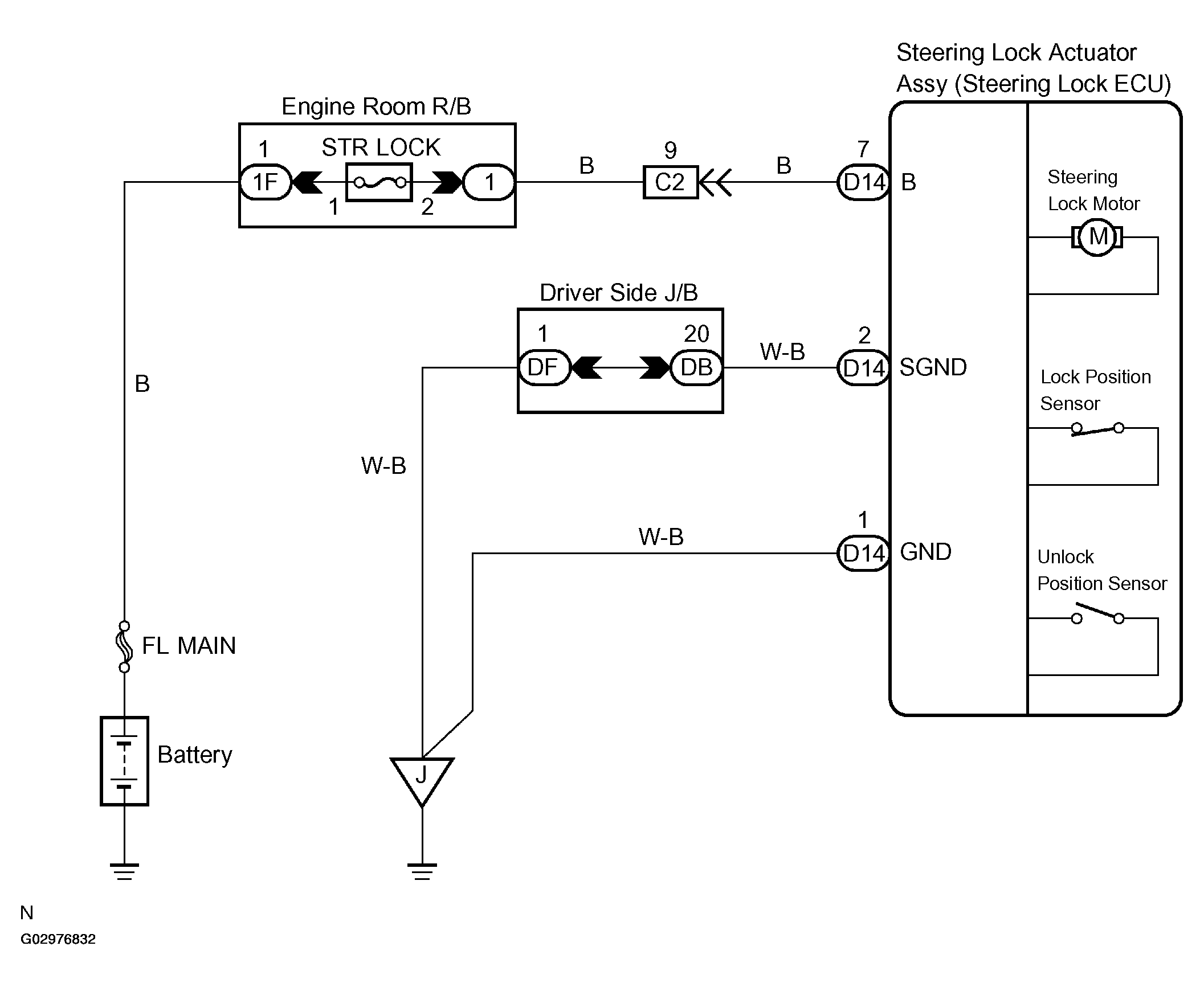

Fig 1: Wiring Diagram - Power Source Circuit

G02976832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
