System Diagram: Notes

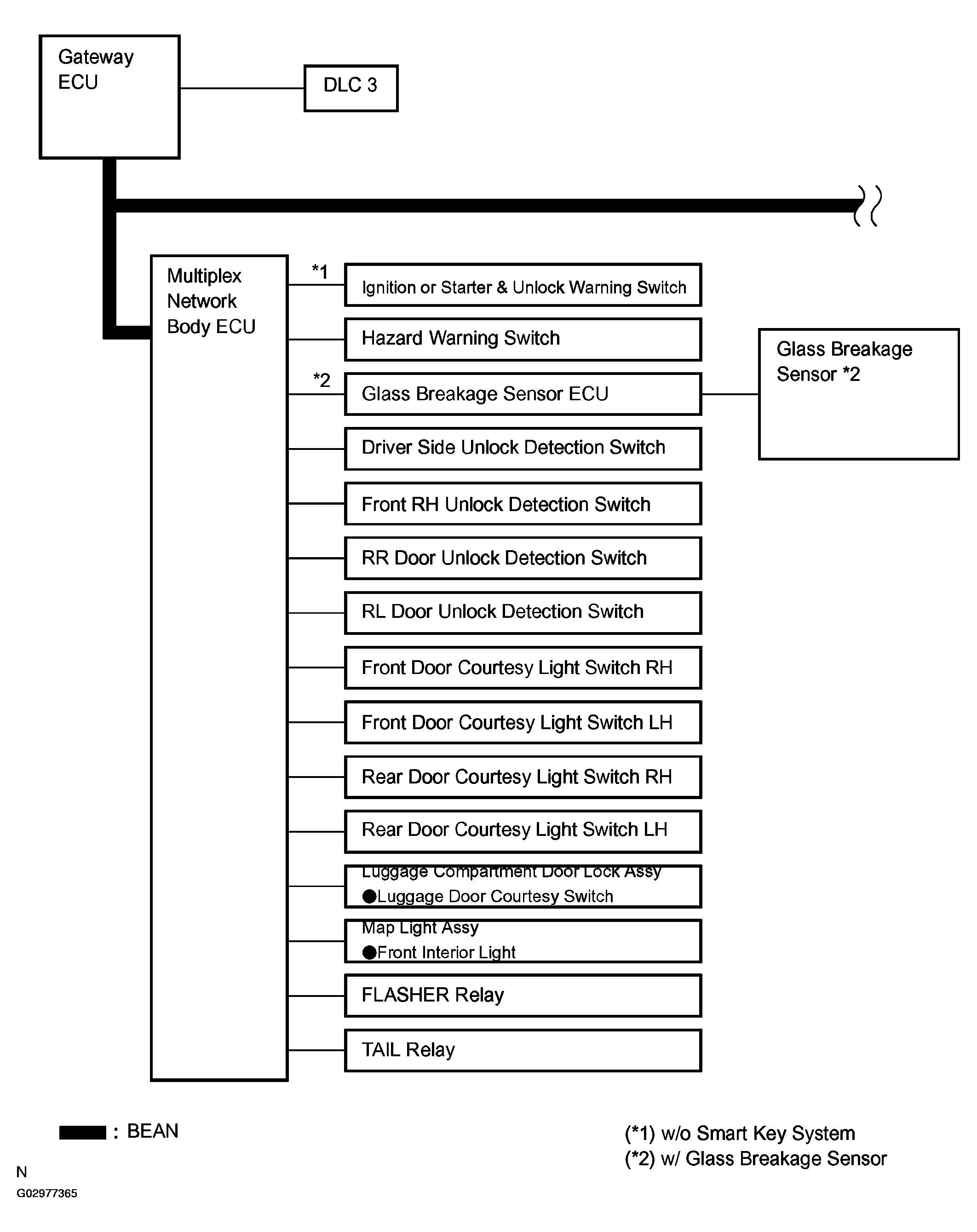

Fig 1: Theft Deterrent System Diagram (1 Of 2)
G02977365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

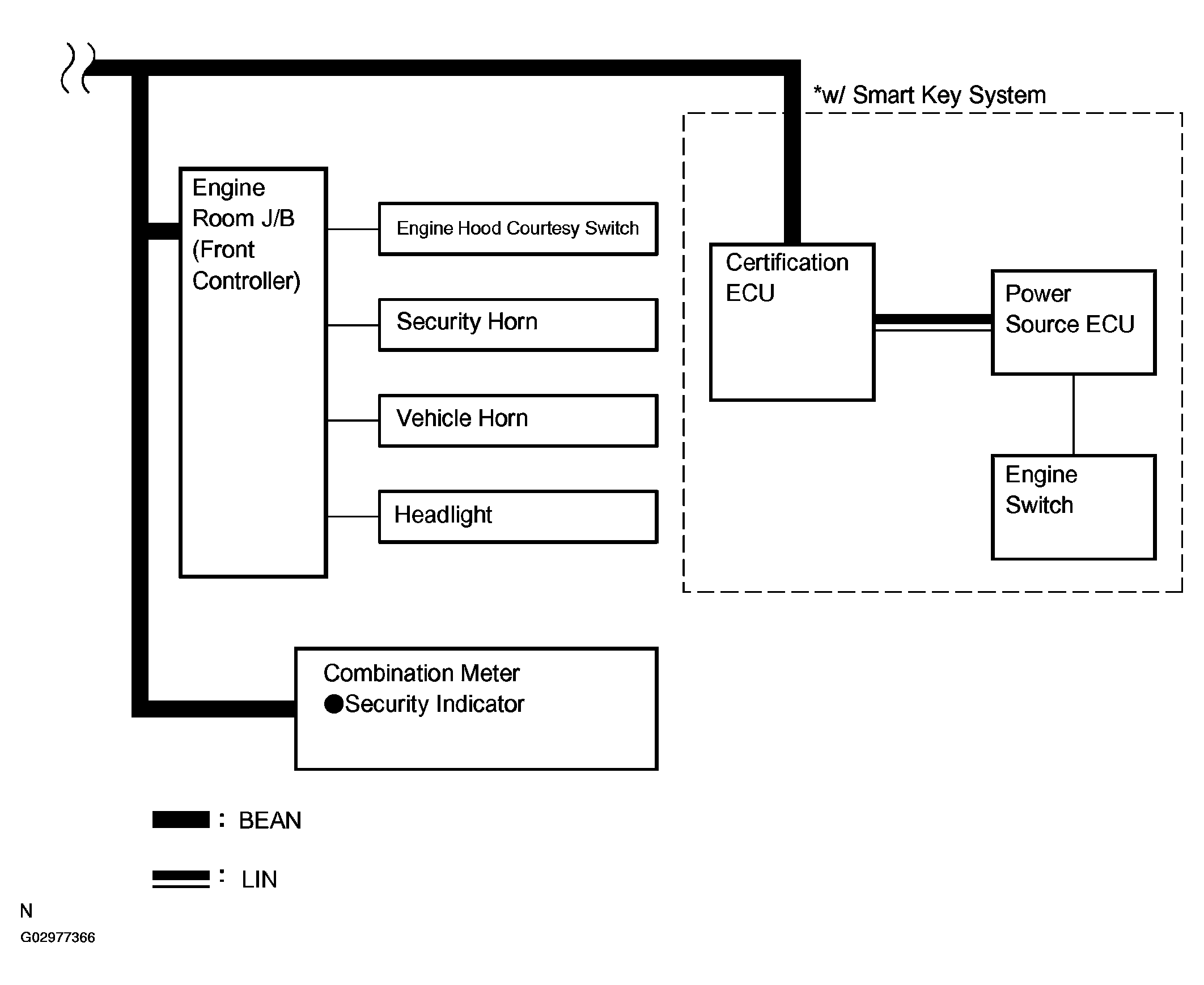

Fig 2: Theft Deterrent System Diagram (2 Of 2)
G02977366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
