Inspection Procedure

  1. INSPECT FUSE (ECU-B)
    1. Remove the ECU-B fuse from the engine room R/B and J/B.
    2. Check the resistance.

      Standard: Below 1 Ω

    1. NG: CHECK FOR SHORT IN ALL HARNESS AND COMPONENTS CONNECTED TO FAILURE FUSE
    2. OK: Go to next step.
  2. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY (MULTIPLEX NETWORK BODY ECU) (POWER SOURCE)
    1. Disconnect the ID J/B connector.
    2. Check the voltage between the wire harness side connector and the body ground.

      Standard:

      TASTER - CONNECTORS SPECIFICATION

      Tester Connection Condition Specified Condition
      ID-10 - Body ground Always 10 to 14 V

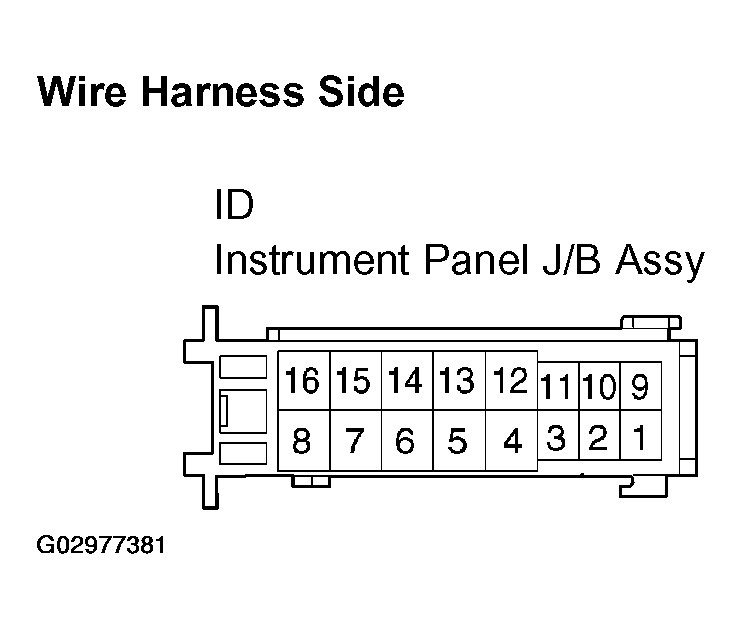

      Fig 1: Disconnecting ID J/B Connector
      G02977381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU) - BODY GROUND)
    1. Disconnect the IF and IM J/B connectors.
    2. Check the resistance between the wire harness side connector and the body ground.

      Standard:

      TESTER - CONNECTORS SPECIFICATION

      Tester Connection Specified Condition
      IF-10 - Body ground Below 1 Ω
      IM-9 - Body ground Below 1 Ω

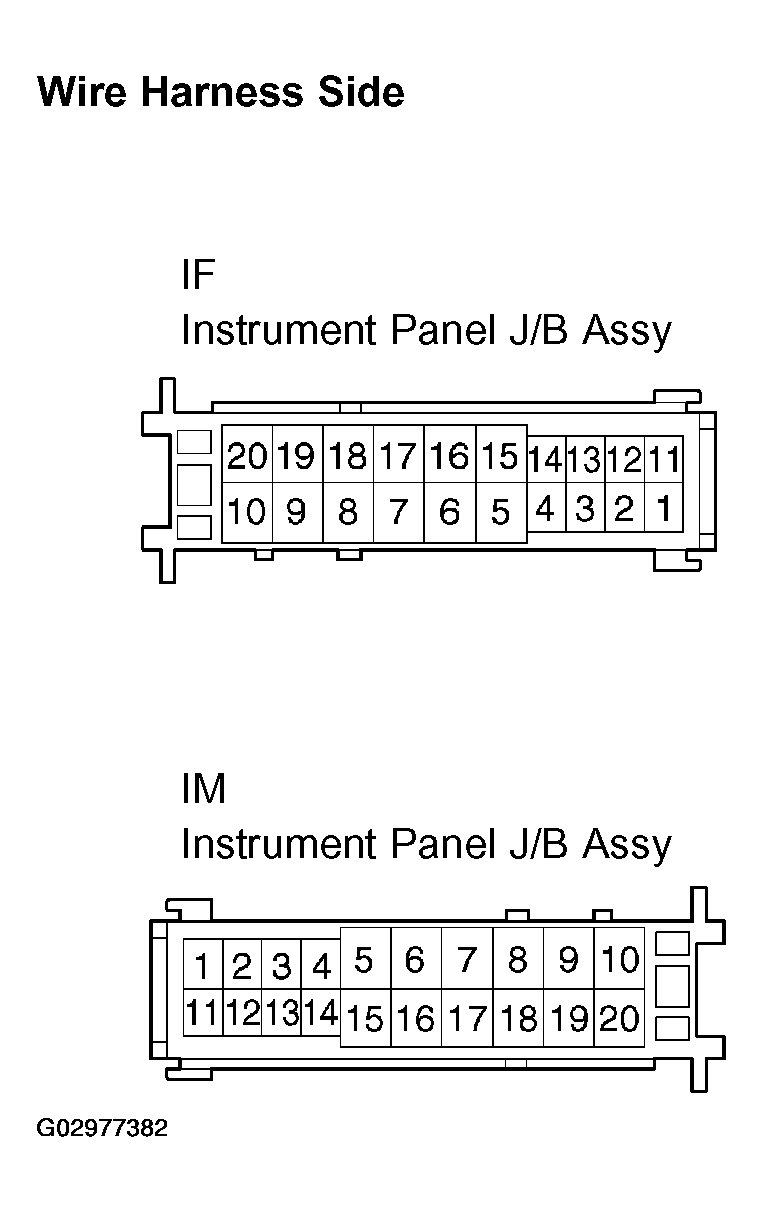

      Fig 2: Disconnecting IF & IM J/B Connectors
      G02977382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE  PROBLEM SYMPTOMS TABLE  )
