Data List/Active Test

HINT:

Using the hand-held tester DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in the troubleshooting process is one way to shorten labor time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch on (IG).
3. Read the DATA LIST following to the display on the tester.

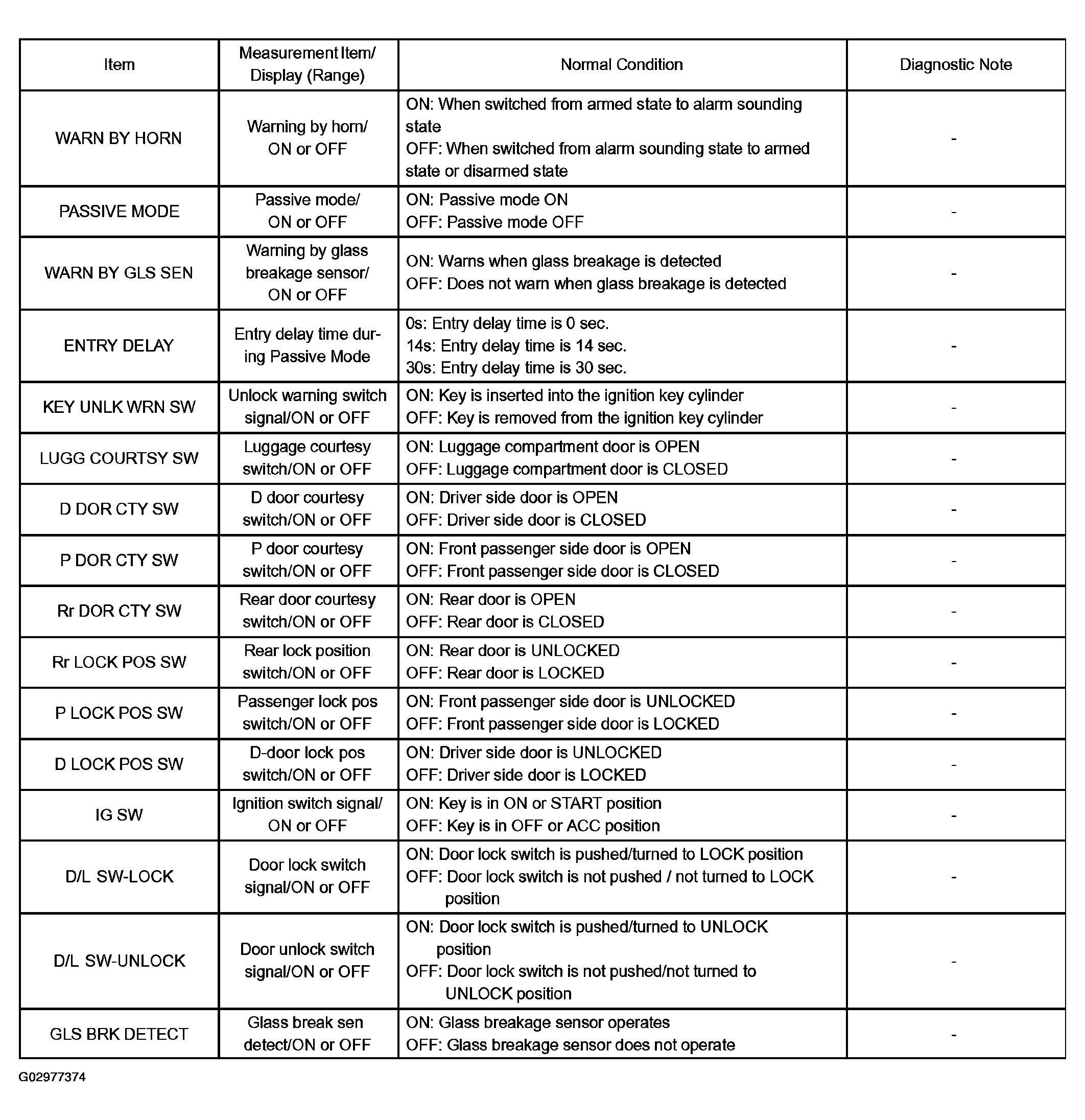

   BODY (Multiplex network body ECU):

   Fig 1: Identifying Data List

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

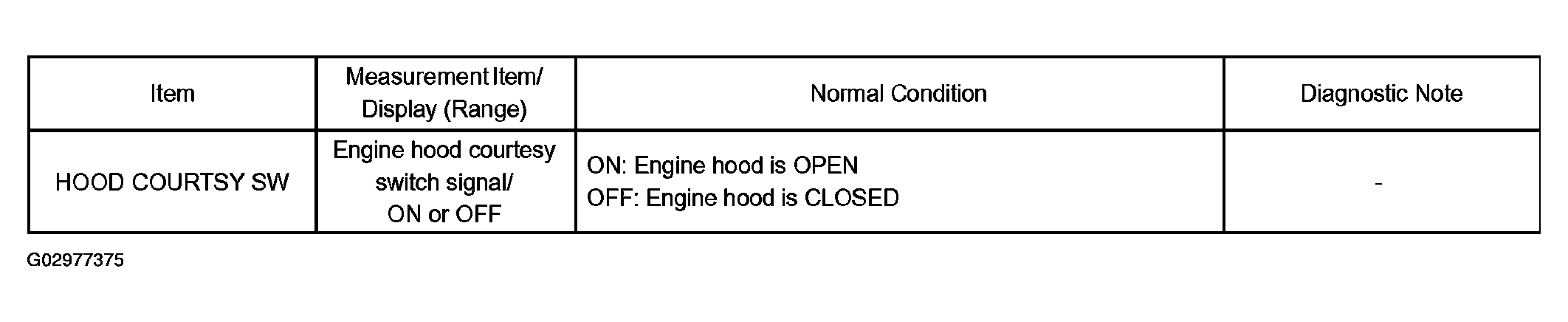

   BODY No.5 (Engine room J/B assy):

   Fig 2: Body No.5 (Engine Room J/B Assy)Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in the troubleshooting process is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch on (IG).
3. Perform the ACTIVE TEST following to the display on the tester.

   BODY (Multiplex network body ECU):

   BODY (MULTIPLEX NETWORK BODY ECU) SPECIFICATION



   Item	Tester Detail	Diagnostic Note
   SECURITY INDIC	Security indicator light ON/OFF	-
   HAZARD	Hazard warning light ON/OFF	-

   BODY No.5 (Engine room J/B assy):

   BODY NO.5 (ENGINE ROOM J/B ASSY) SPECIFICATION



   Item	Tester Detail	Diagnostic Note
   SECURITY HORN	Security horn ON/OFF	-
   HORN RELAY	Horn relay ON/OFF	-
