Speed Sensor (ATM): Replacement

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE AIR CLEANER ASSY (SEE REPLACEMENT )
REMOVE AIR CLEANER HOSE NO. 1 (SEE REPLACEMENT )
REMOVE AIR CLEANER BRACKET (SEE REPLACEMENT )
REMOVE AIR CLEANER INLET NO. 1 (SEE REPLACEMENT )
REMOVE SPEED SENSOR (NT SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and transmission revolution sensor.

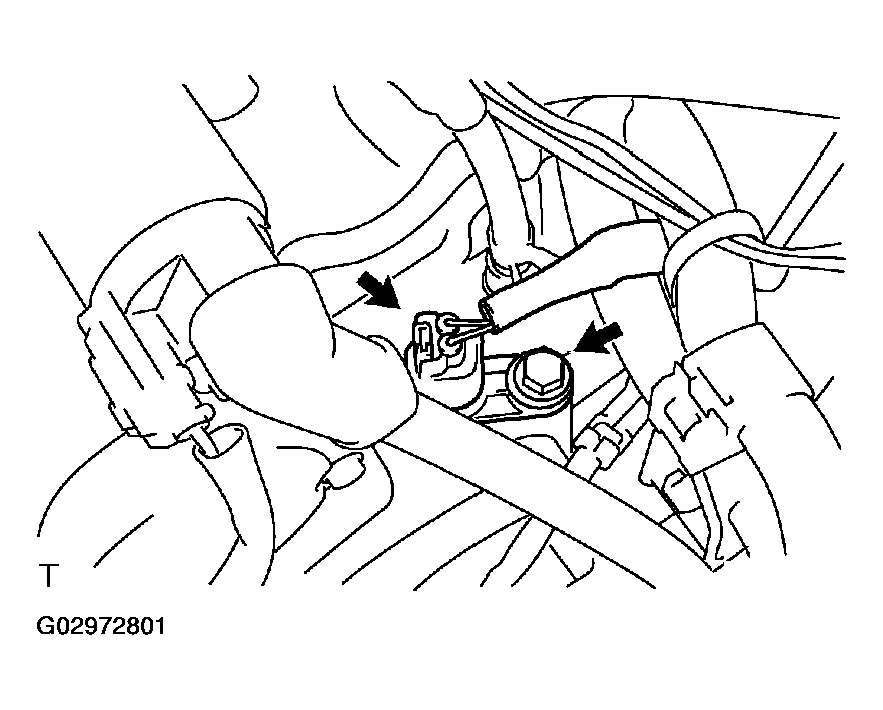

  Fig 1: Removing Speed Sensor (NT Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR (NC SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and transmission revolution sensor.

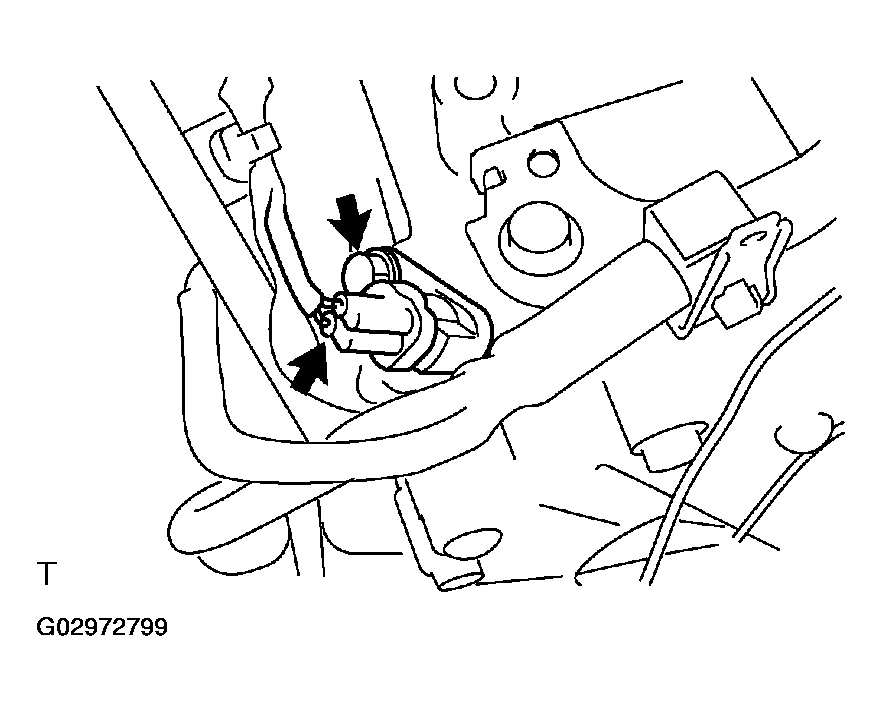

  Fig 2: Removing Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR (NC SENSOR)
1. Coat an O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.

  Fig 3: Installing Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR (NT SENSOR)
1. Coat an O-ring with ATF.
2. Install the speed sensor with the bolt.
  Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.

  Fig 4: Installing Speed Sensor (NT Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER INLET NO. 1 (SEE REPLACEMENT )
INSTALL AIR CLEANER BRACKET (SEE REPLACEMENT )
INSTALL AIR CLEANER HOSE NO. 1 (SEE REPLACEMENT )
INSTALL AIR CLEANER ASSY (SEE REPLACEMENT )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION (SEE INITIALIZATION )
Some systems need initialization when disconnecting the cable from the negative battery terminal.
