Fuel Pump Control Circuit: Wiring Diagram

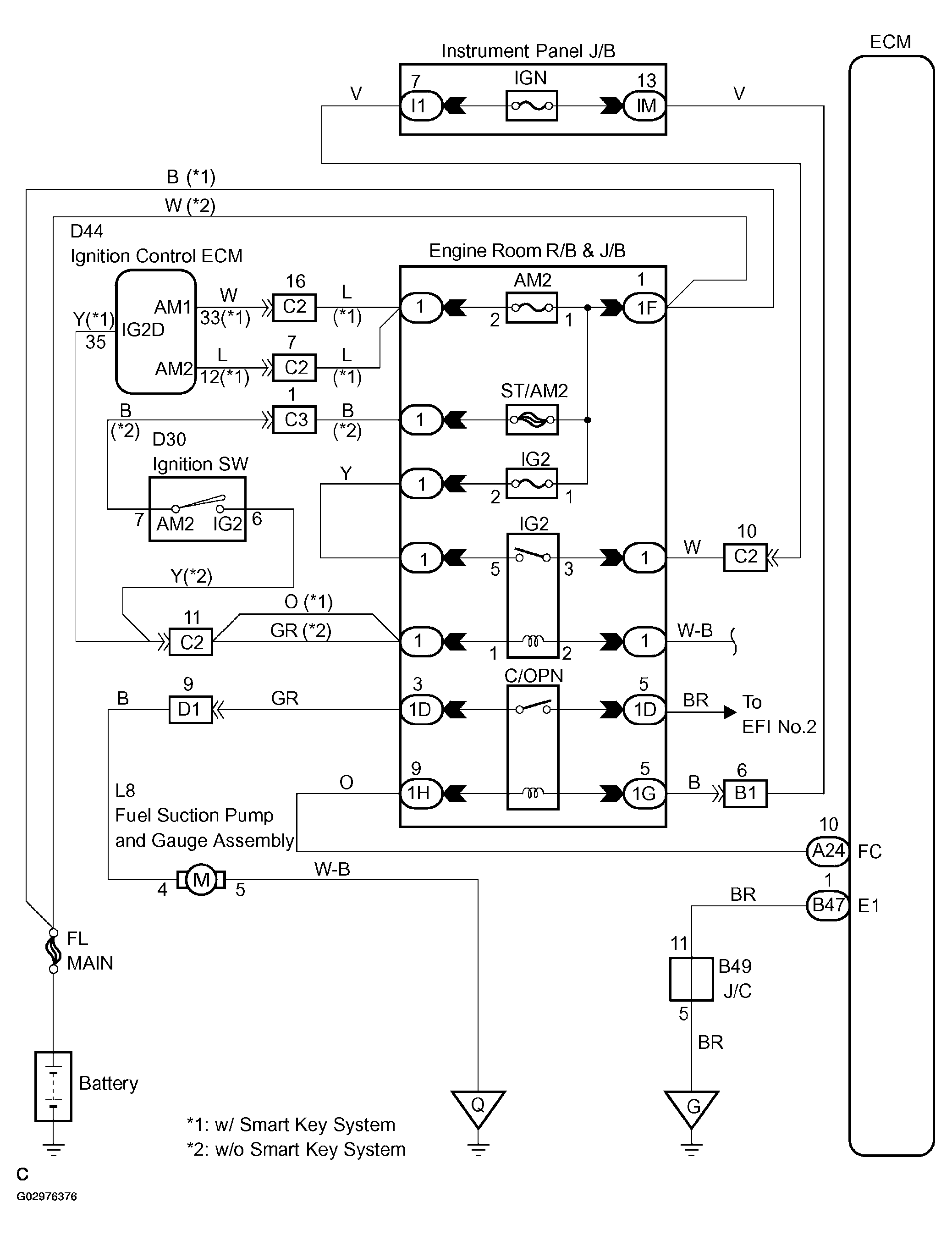

Fig 1: Identifying Fuel Pump Wiring Diagram

G02976376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
