ECM Power Source Circuit: Wiring Diagram

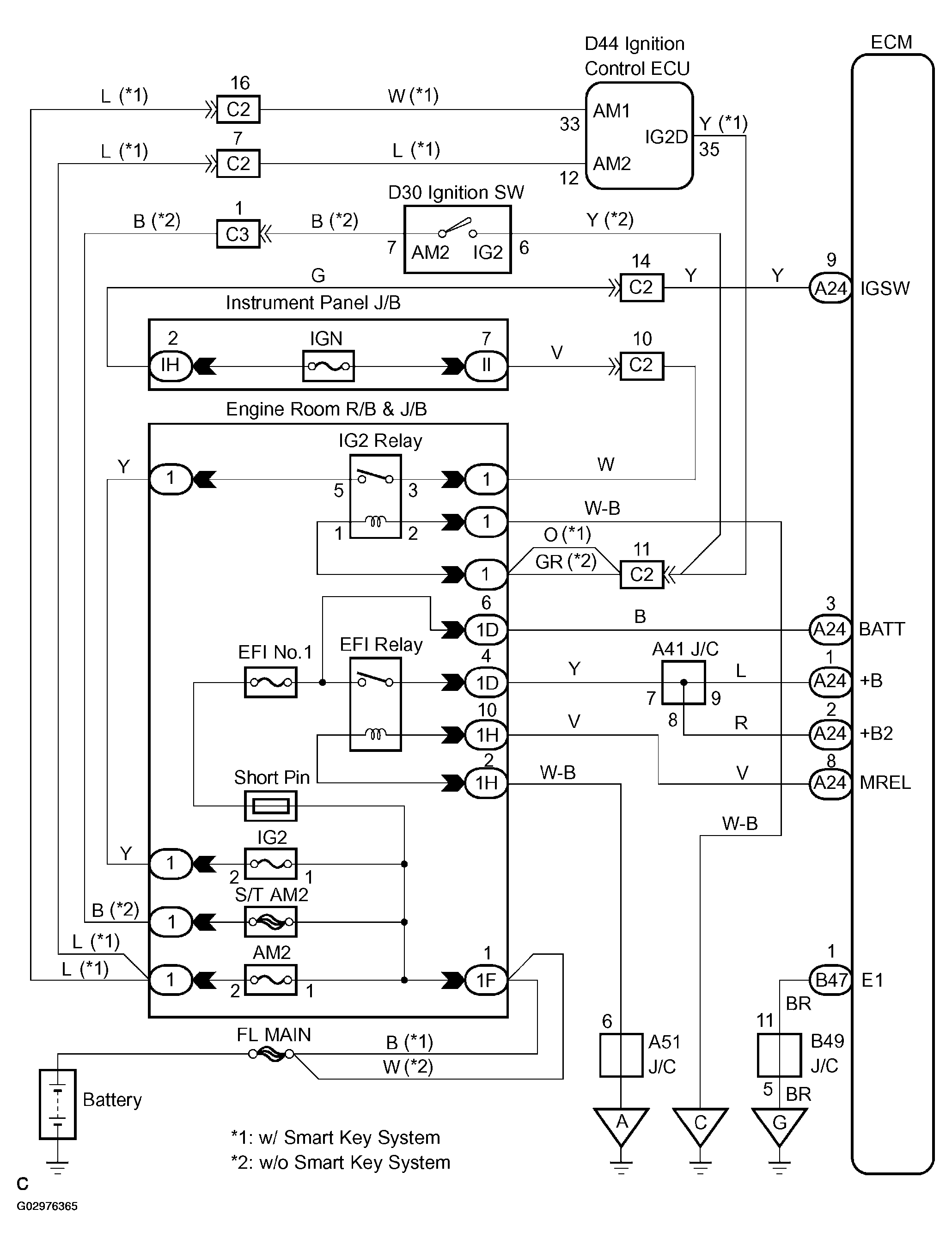

Fig 1: Identifying Wiring Diagram

G02976365

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
