Ecu Power Source Circuit: Wiring Diagram

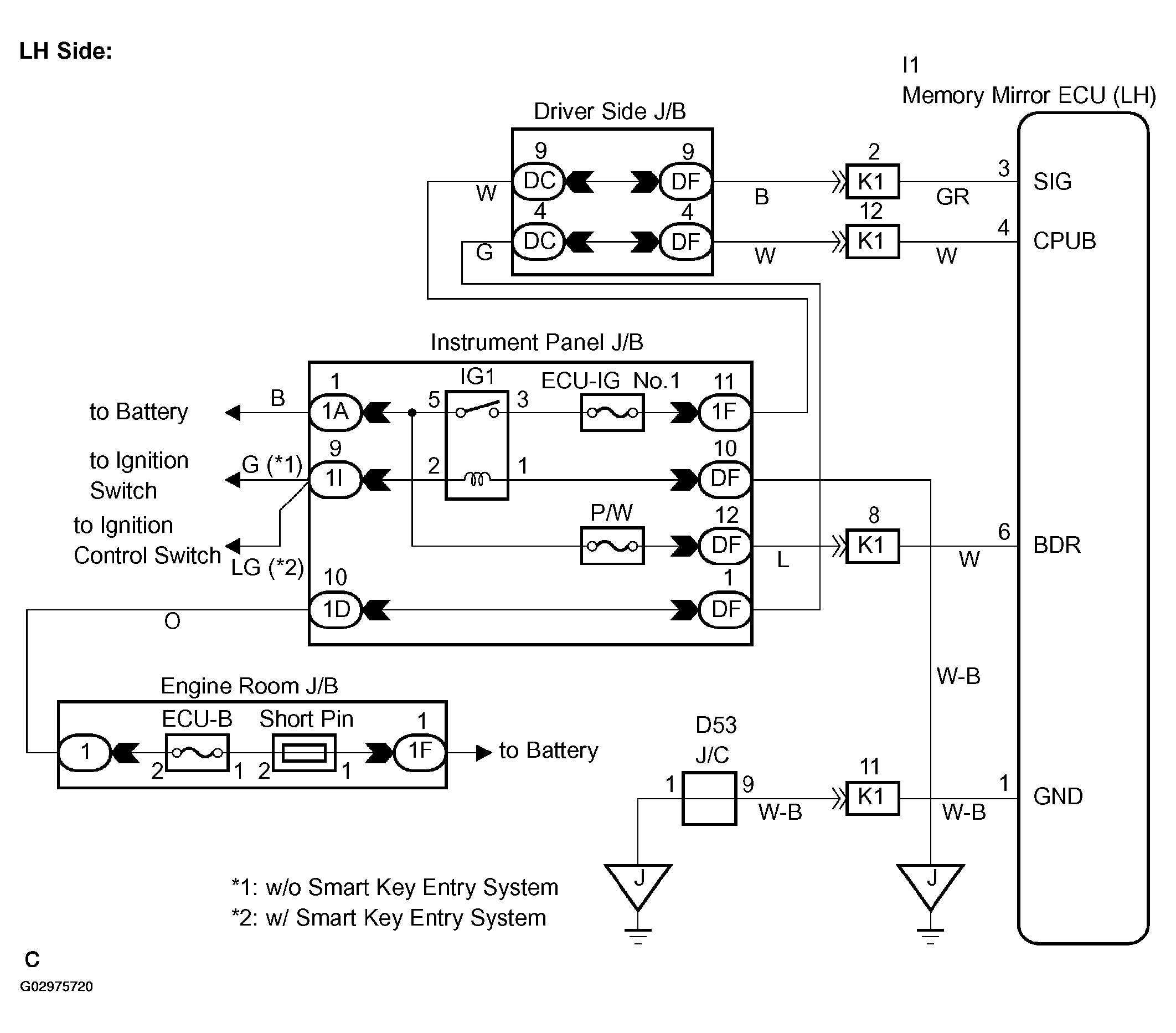

Fig 1: ECU Power Source Wiring Diagram - LH Side
G02975720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECU Power Source Wiring Diagram - RH Side
G02975721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
