Home >> Toyota >> 2005 >> Avalon Limited >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Engine Immobilizer System (W/O Smart Key System) >> Location

Engine Immobilizer System (W/O Smart Key System): Location

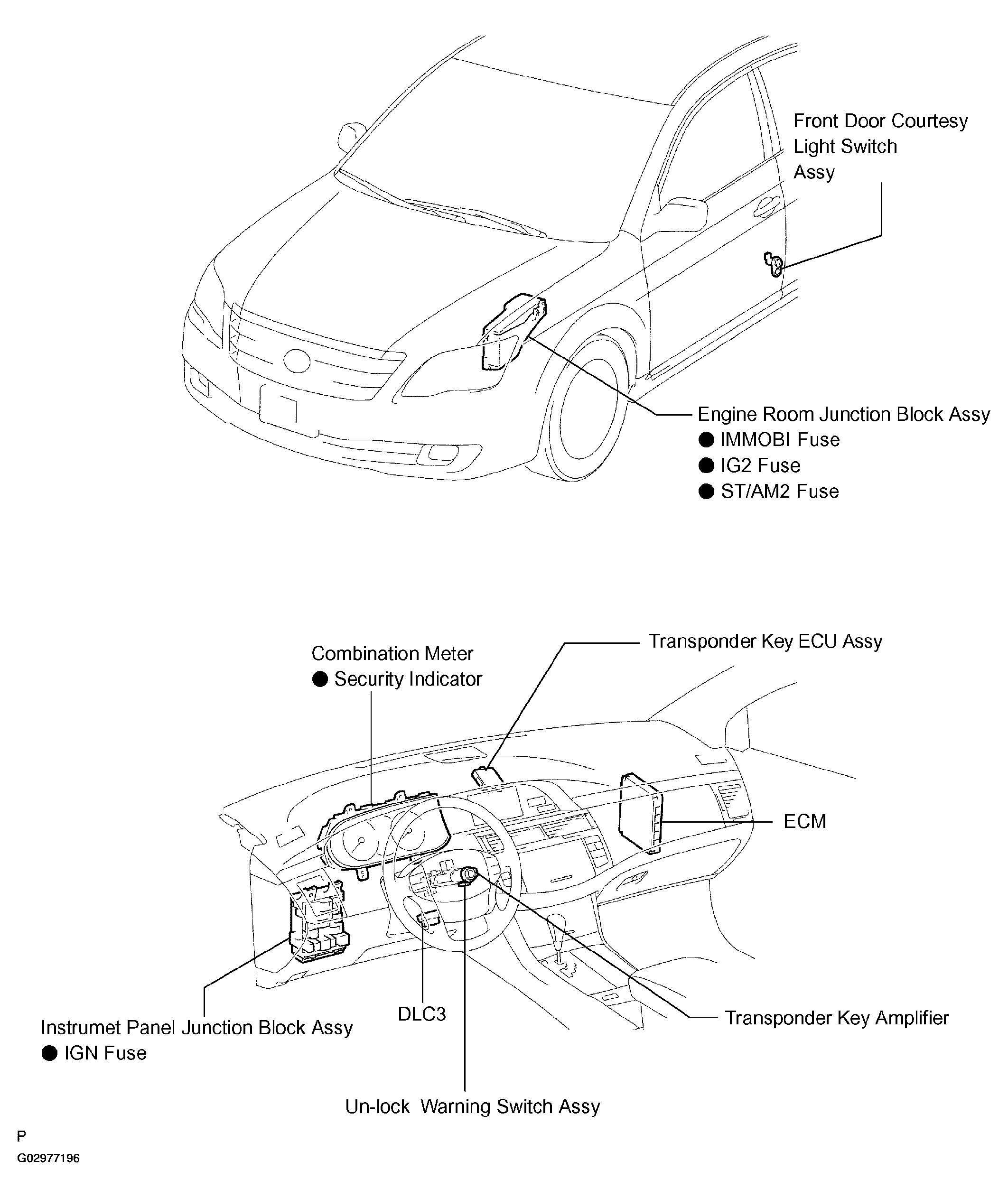

Fig 1: Identifying Engine Immobilizer System W/O Smart Key System Components

G02977196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
