Radio Receiver ASSY: Replacement

HINT:

• See LOCATION
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT PANEL FINISH PLATE (W/O SMART KEY SYSTEM) (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT PANEL SUB-ASSY (SEE  REPLACEMENT  )
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
6. REMOVE RADIO RECEIVER ASSY W/BRACKET
   1. Remove the 4 bolts and pull the radio receiver assy w/bracket toward you.
   2. Disconnect all connectors and remove the radio receiver assy w/bracket.

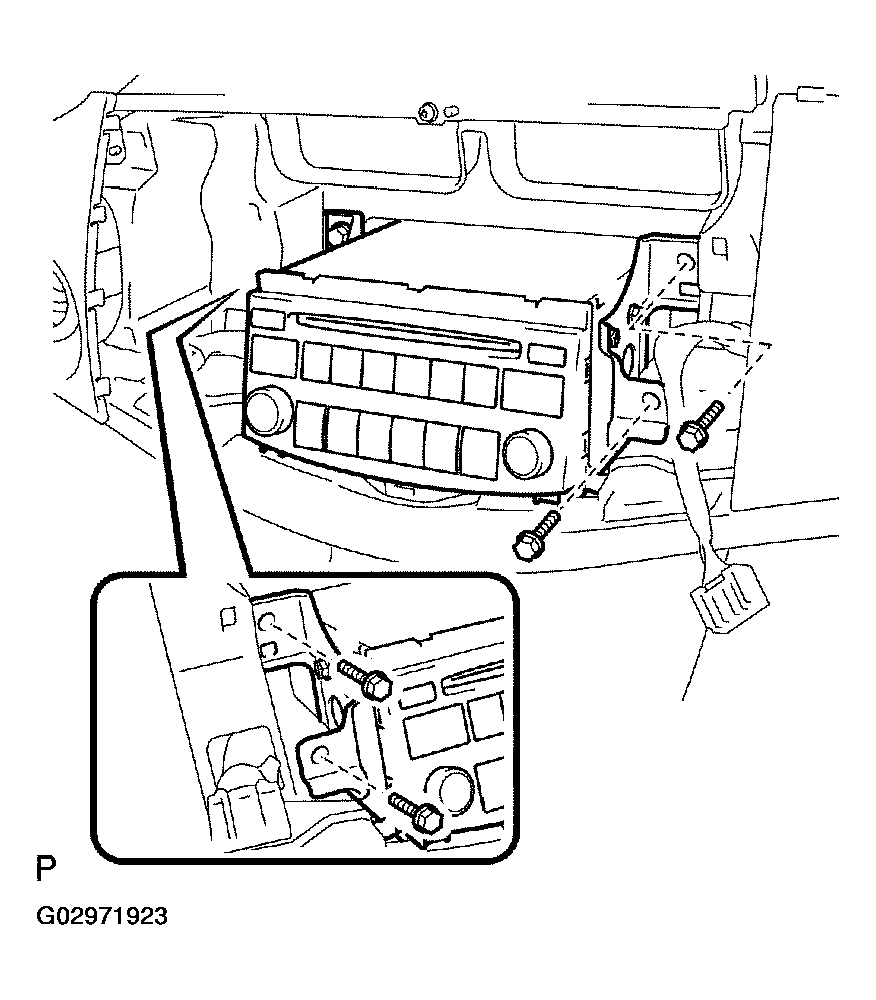

      Fig 1: Removing Radio Receiver Assy W/Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO BRACKET NO.1
   1. Remove the 3 bolts and radio bracket No.1 from the radio receiver assy w/bracket.

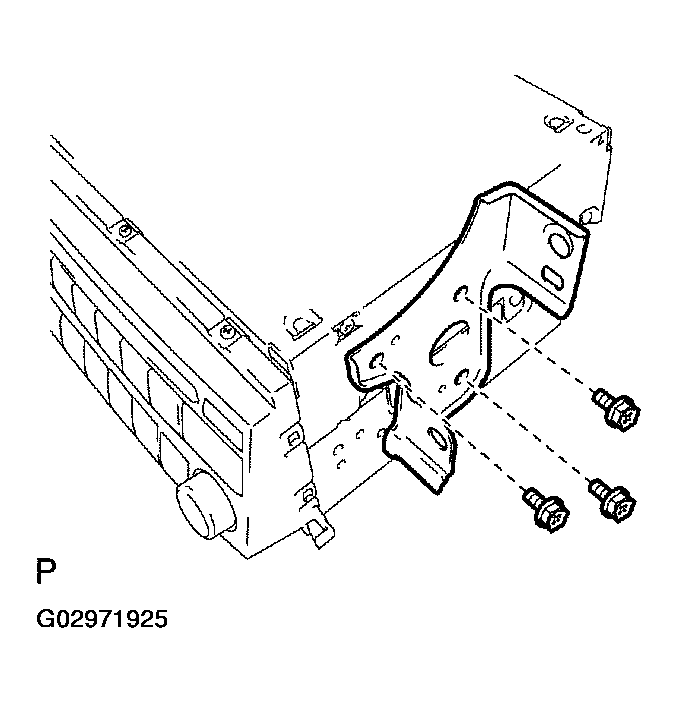

      Fig 2: Removing Radio Bracket No. 1

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO BRACKET NO.2
   1. Remove the 3 bolts and radio bracket No.2 from the radio receiver assy w/bracket.
9. REMOVE RADIO RECEIVER ASSY

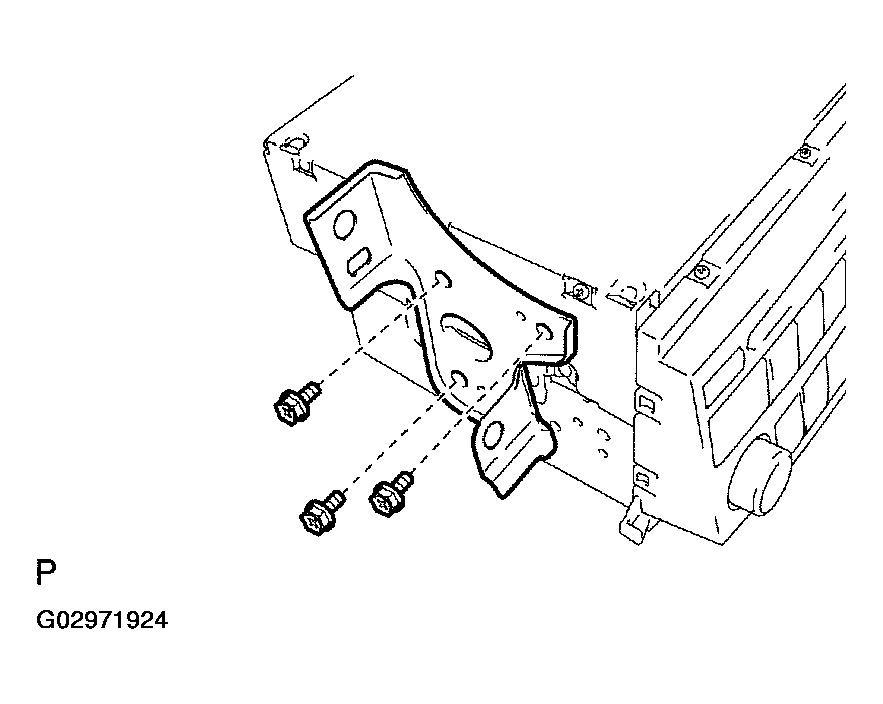

   Fig 3: Removing Radio Bracket No.2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
