Power Outlet Socket ASSY: Replacement

HINT:

• See LOCATION .
• Installation is in the reverse order of removal.

1. REMOVE CONSOLE BOX ASSY (SEE  REPLACEMENT  )
2. REMOVE POWER OUTLET SOCKET ASSY (FR POSITION)

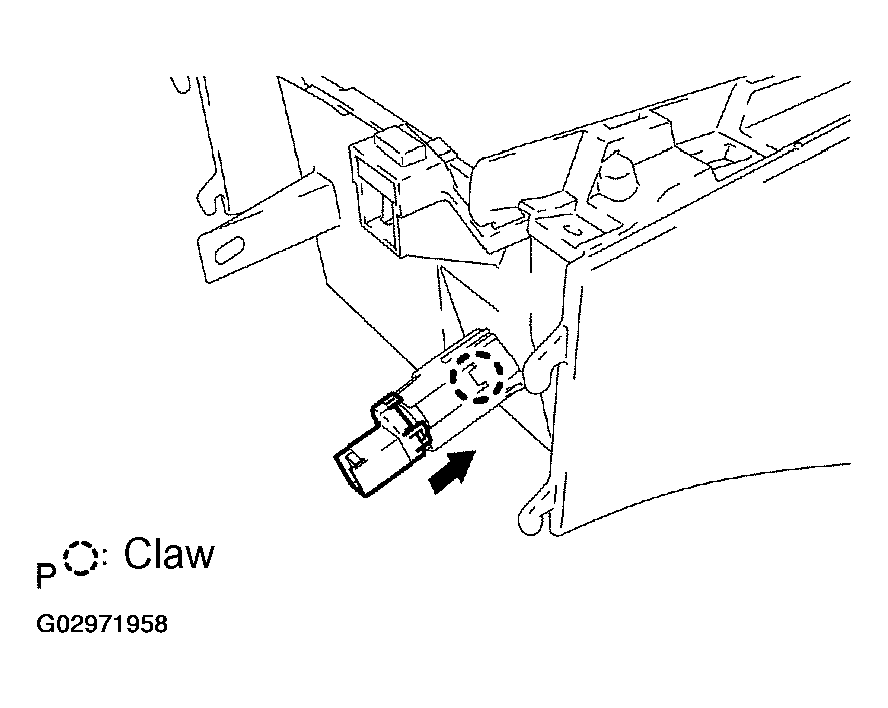

   1. Disengage the claw and remove the power outlet socket assy as shown in the illustration.
      Fig 1: Disengaging Claw & Removing Power Outlet Socket Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

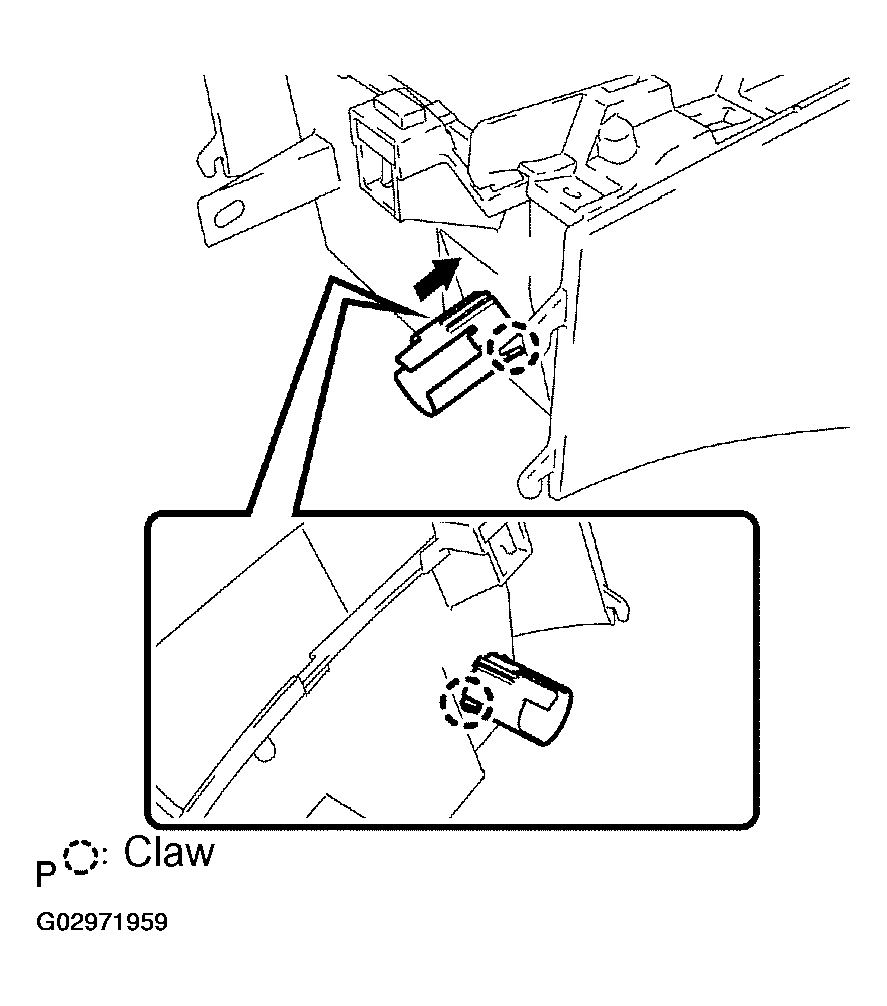

   2. Disengage the 2 claws and remove the power outlet socket cover as shown in the illustration.
      Fig 2: Disengaging Claws & Removing Power Outlet Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. POWER OUTLET SOCKET ASSY (RR POSITION)

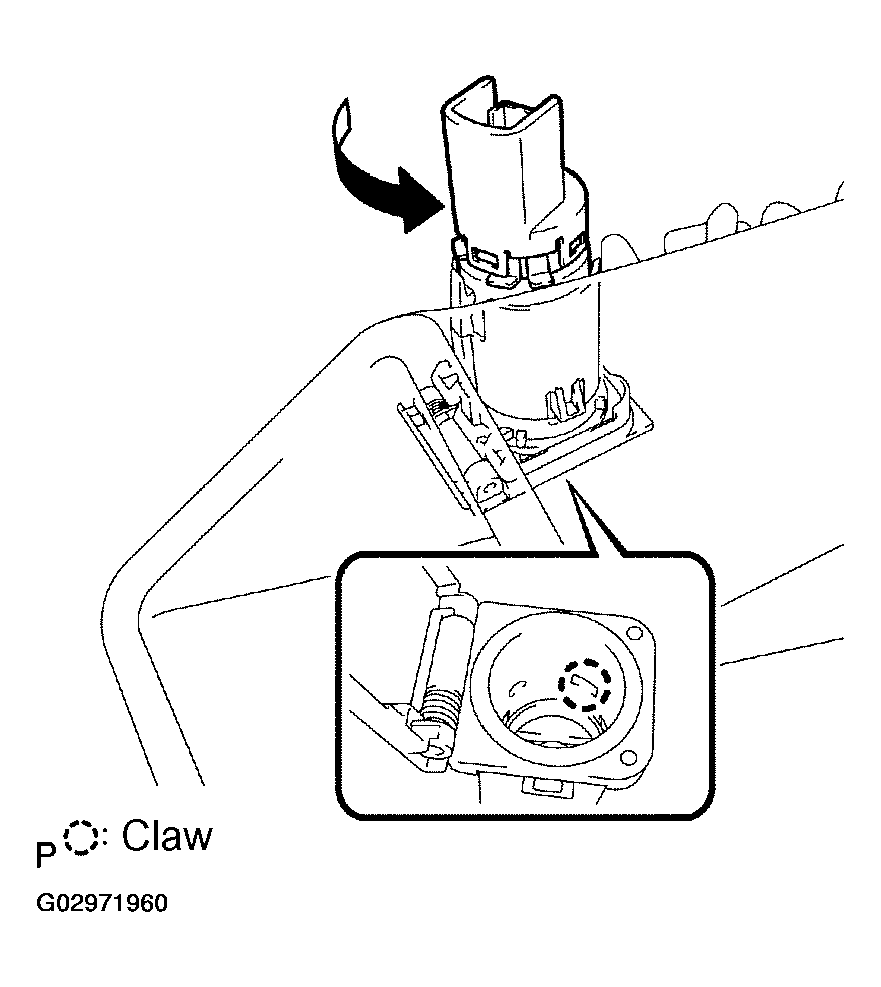

   1. Disengage the claw in the direction indicated by the arrow.
      Fig 3: Disengaging Claw In Direction Indicated By Arrow

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

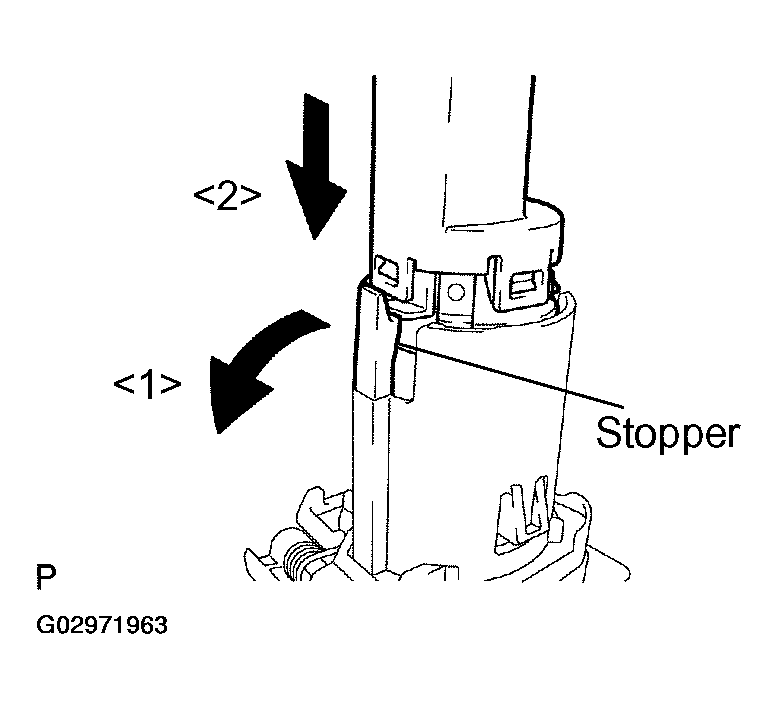

   2. Release the stopper.
   3. Turn in the direction indicated by the arrow and push the power outlet socket assy.
      Fig 4: Releasing Stopper

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

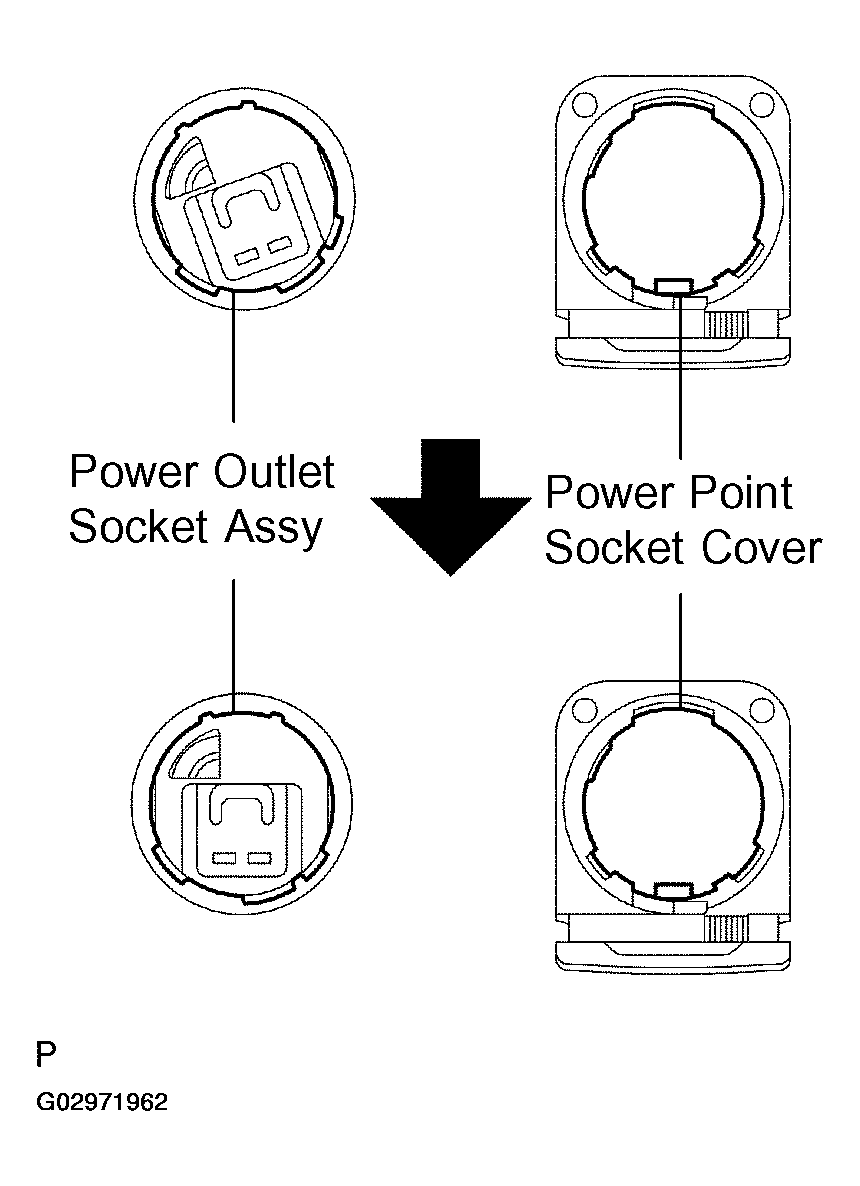

   4. Align the protrusion on the power outlet socket assy and the recess on the power point socket cover.
      Fig 5: Aligning Protrusion On Power Outlet Socket Assy & Recess On Power Point Socket Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

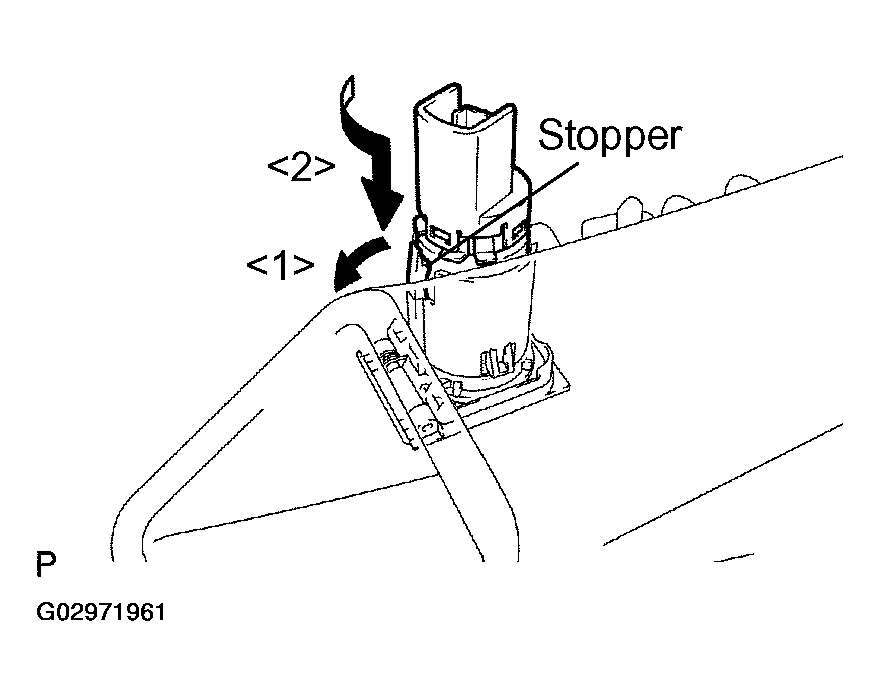

   5. Release the stopper.
   6. Remove the power outlet socket assy as shown in the illustration.
      Fig 6: Removing Power Outlet Socket Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
