Cigarette Lighter ASSY: Replacement

HINT:

• See LOCATION
• Installation is in the reverse order of removal.

1. REMOVE CONSOLE PANEL SUB-ASSY UPPER (SEE  REPLACEMENT  )
2. REMOVE CIGARETTE LIGHTER ASSY
   1. Remove the ring nut as shown in the illustration.

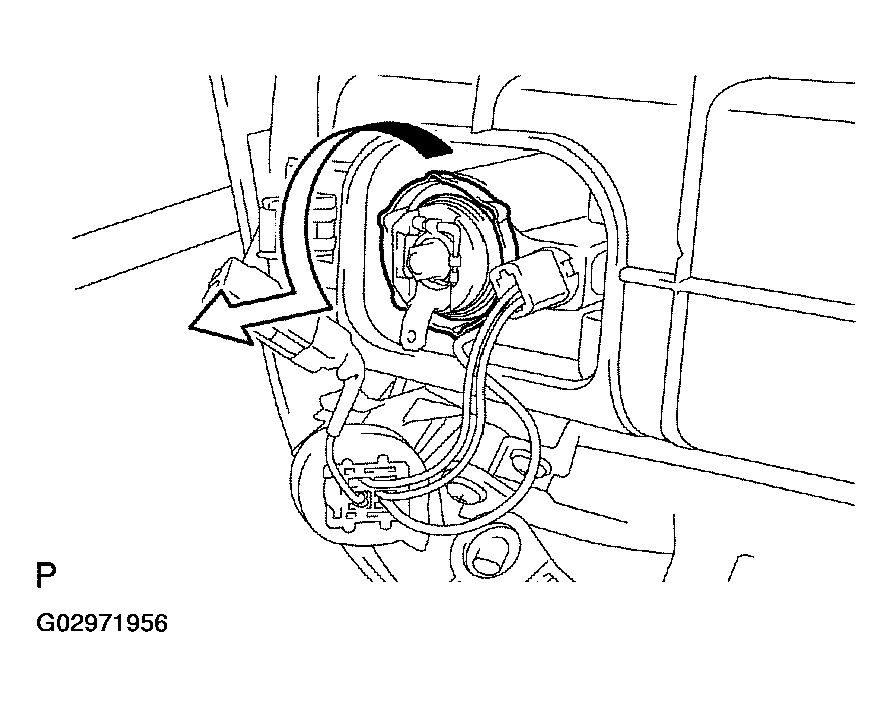

      Fig 1: Removing Ring Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove cigarette lighter socket and remove the cigarette lighter assy.

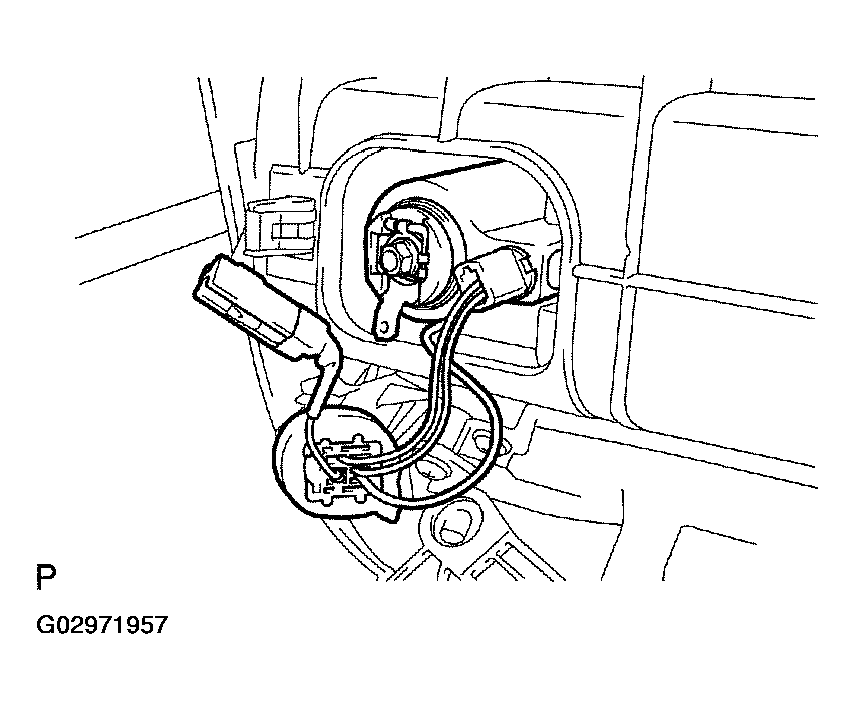

      Fig 2: Removing Cigarette Lighter Socket & Cigarette Lighter Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
