Dynamic Laser Cruise Control System - Diagnostics: Location

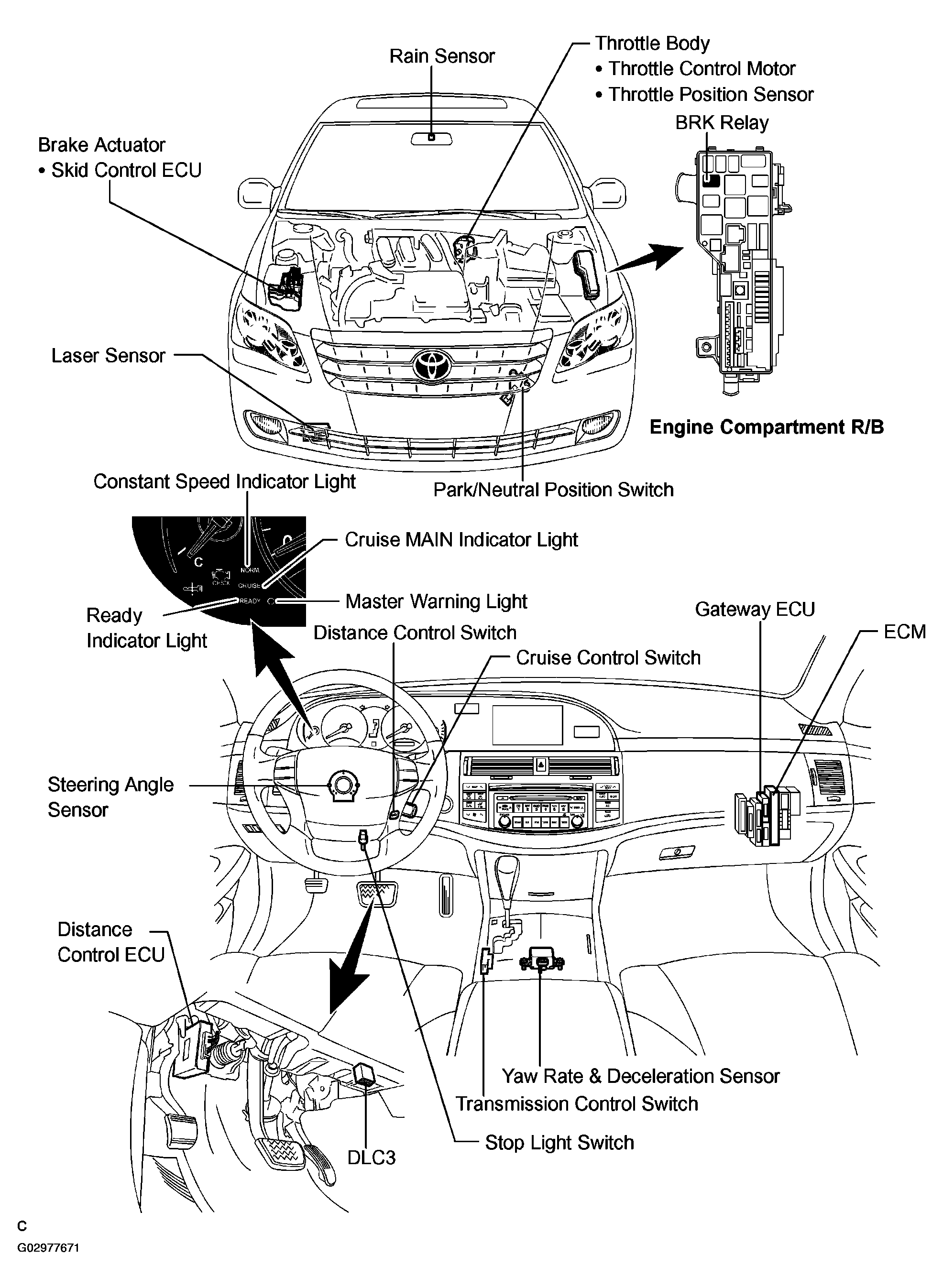

Fig 1: Locating Dynamic Laser Cruise Control System (1 Of 2)
G02977671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

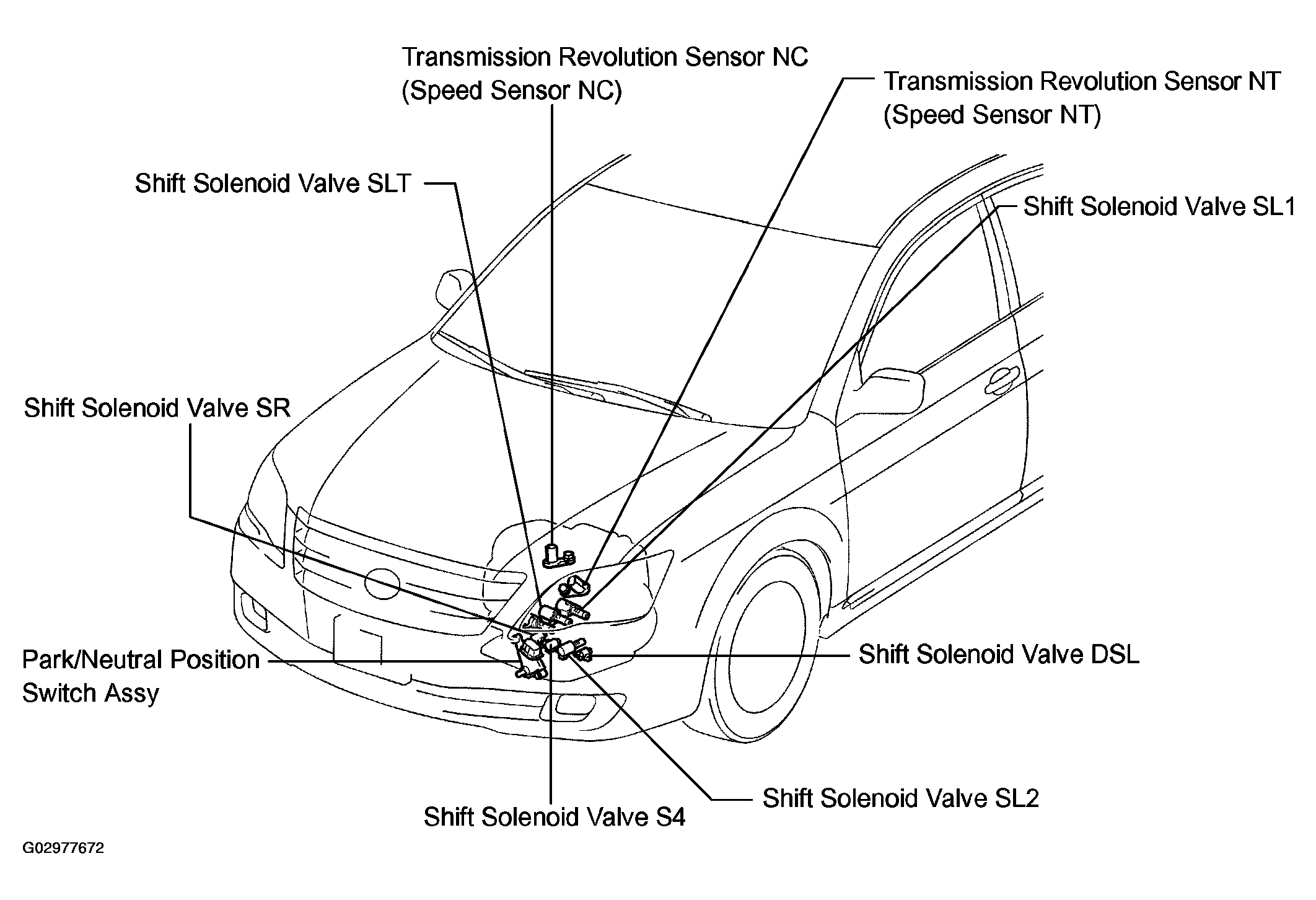

Fig 2: Locating Dynamic Laser Cruise Control System (2 Of 2)
G02977672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
