Laser Sensor Power Source Circuit: Wiring Diagram

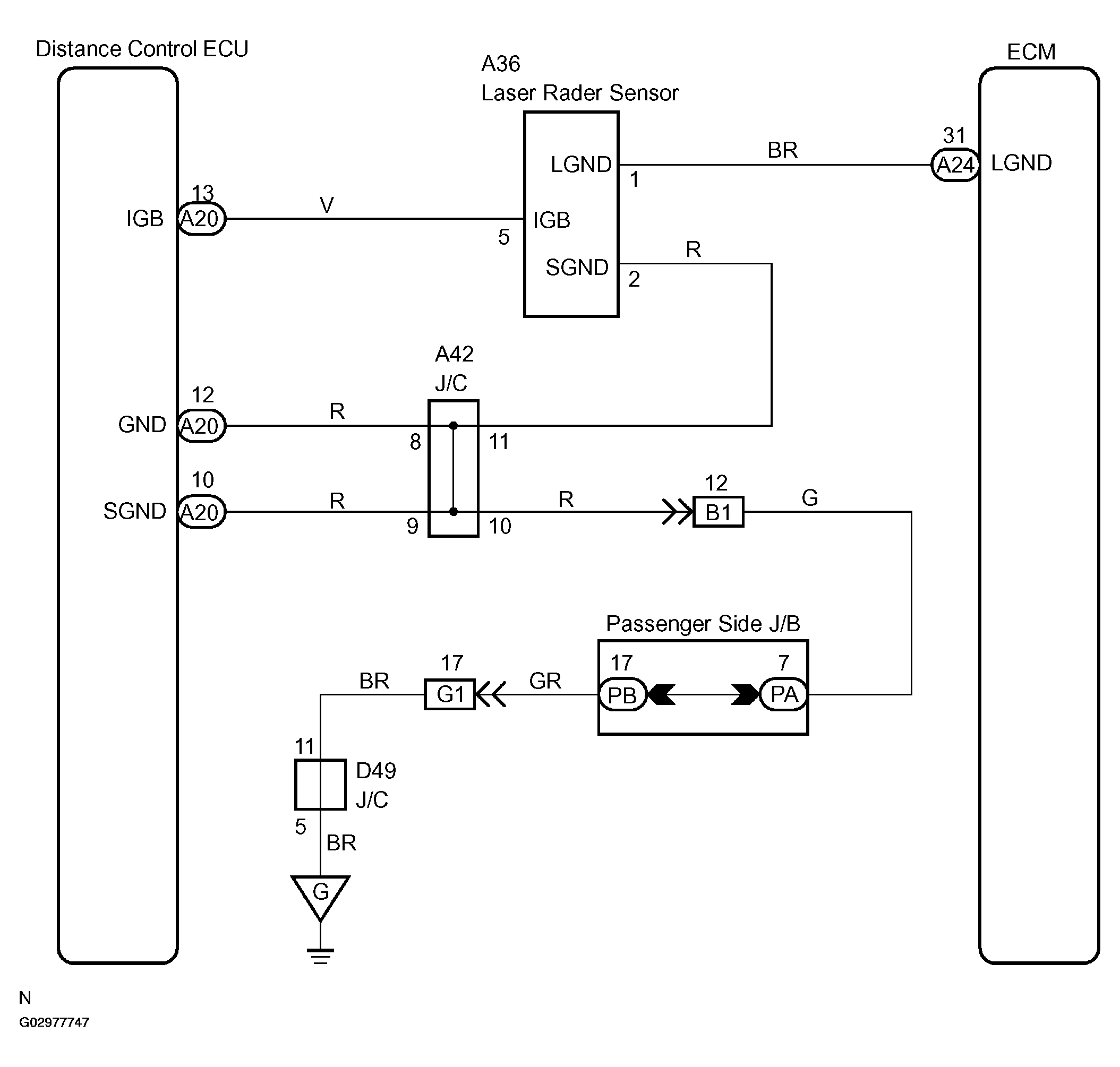

Fig 1: Laser Sensor Power Source Circuit - Wiring Diagram

G02977747

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
